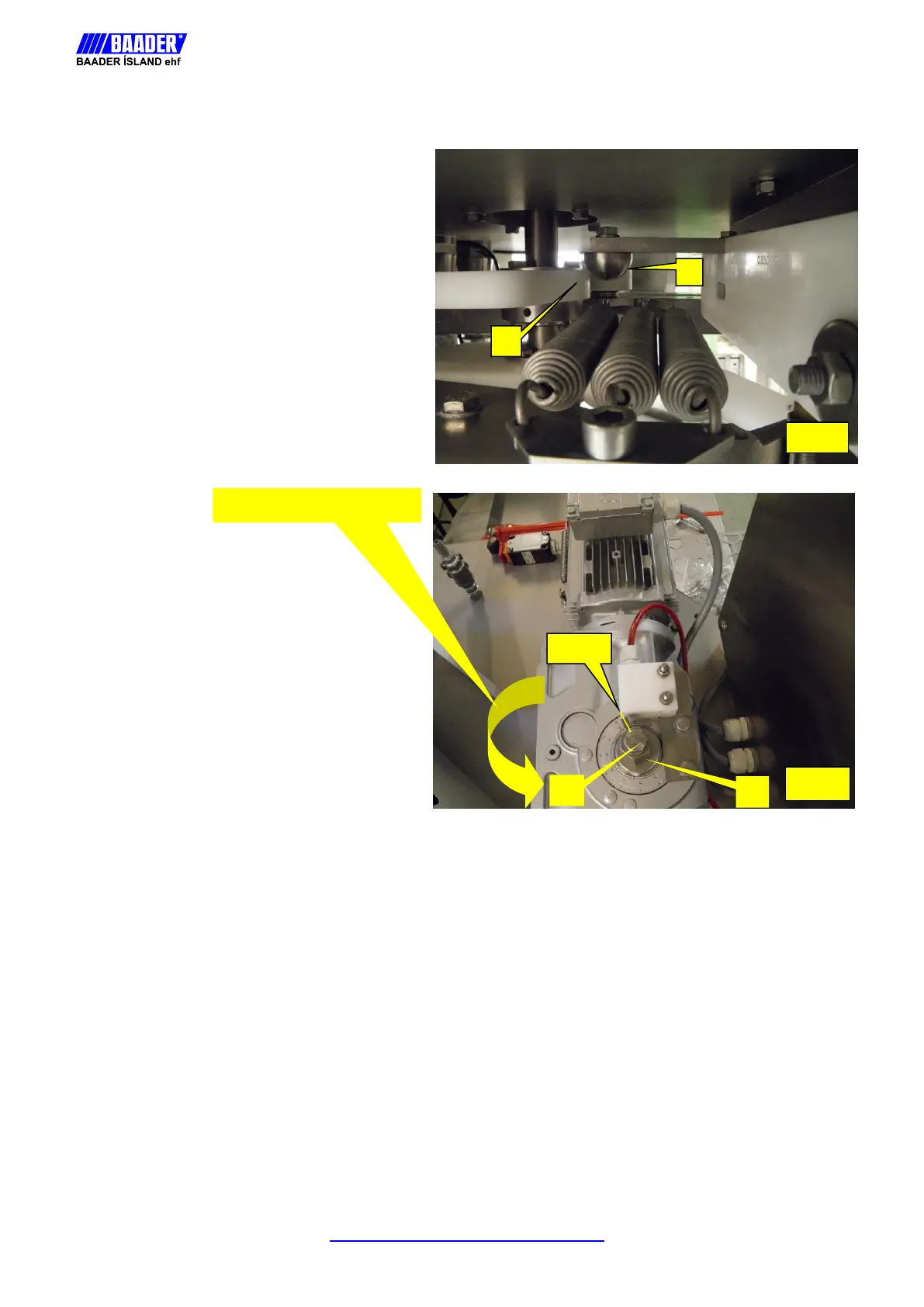

Rotate the machine manually as
described on page 13 until the ball
(fig.7 item 1) touches the cam
(fig.7 item 2).
Loosen hexagon bolt
(fig.8, item 1).
Turn the activating fane (fig.8 item 2).
Align the centre line of the fane to the
corner of the proximity switch housing.
Re-tighten hexagon bolt (fig.8 item 1).
Cycle start position setting is now
complete.
1
2
Direction of Rotation
1
2
Fig 7
Fig 8
Align
