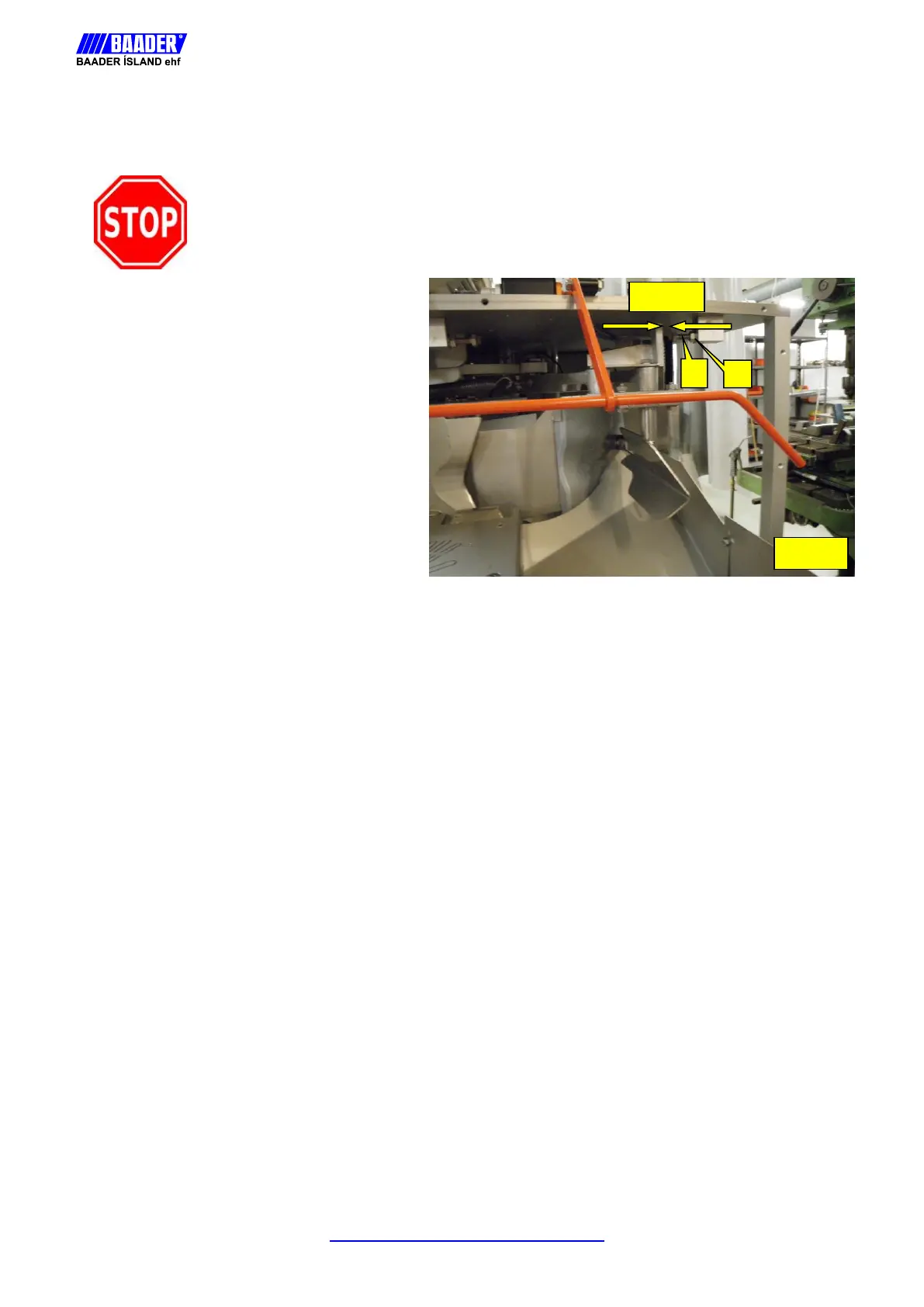

Adjustment of the back plate maximum travel stop screw.
Prior to working on the machine switch the main electrical switch to the 0
position and lock it. Failure to comply may result in serious personal injury or
death.
Manually rotate the machine as
described on page 13, until the back
plate reaches its maximum travel.
Slacken the lock nut (fig.20 item 1) and
adjust the stop screw (fig.20 item 2) to a
clearance distance of 16mm (5/8").
Re-tighten the lock nut.
Fig 20
1
2
16mm
