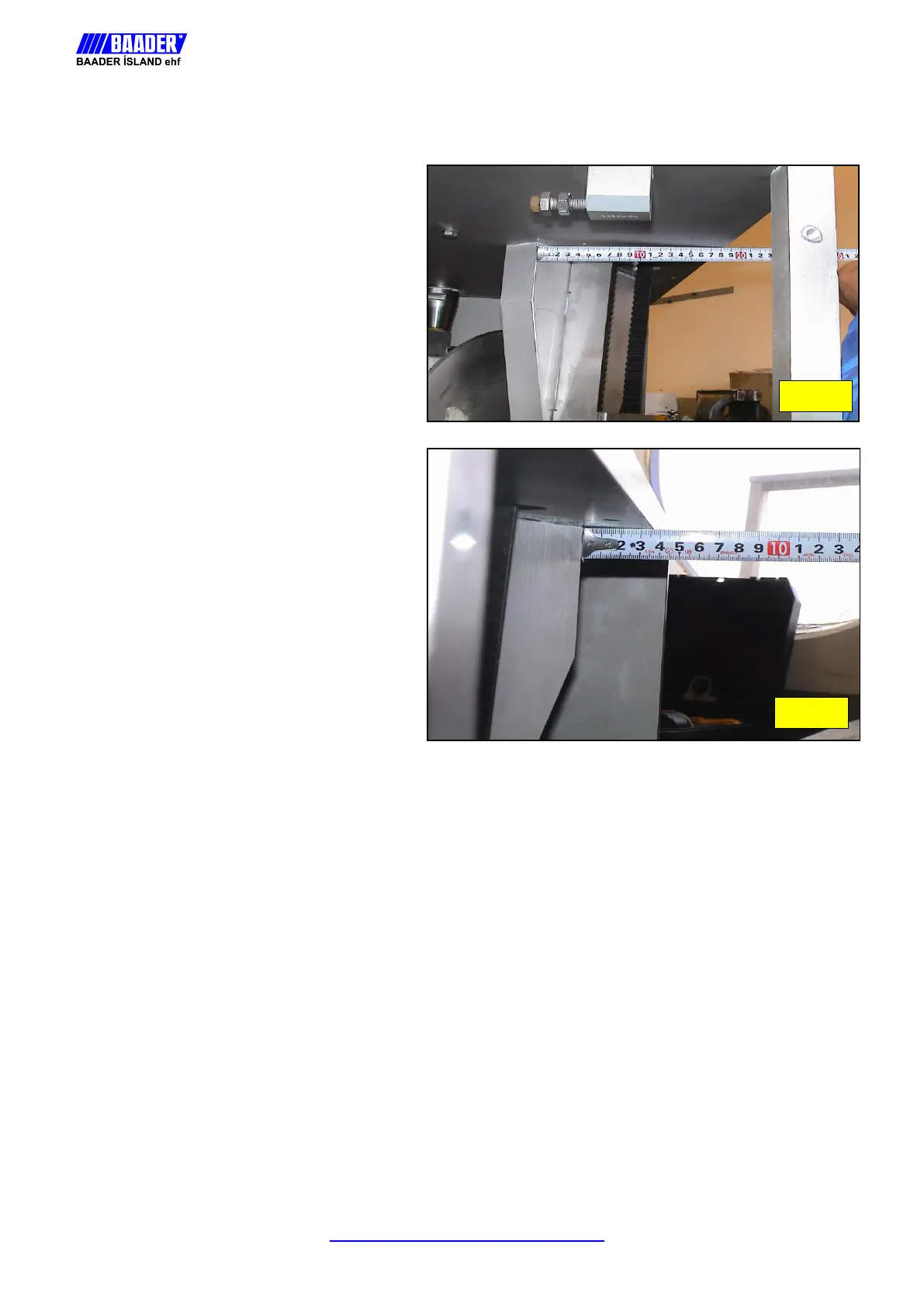

Fig 10

Fig 11

Adjust the inner edge to 184mm

(7 ¼") as shown (fig.10).

Note:

The dimension is taken square to the

side of the machine

Adjust the outer edge to 34mm

(1 5/16") as shown (fig.11).

Note:

The dimension is taken square to the

side of the machine.

Re-tighten the 2 hexagon bolts.
