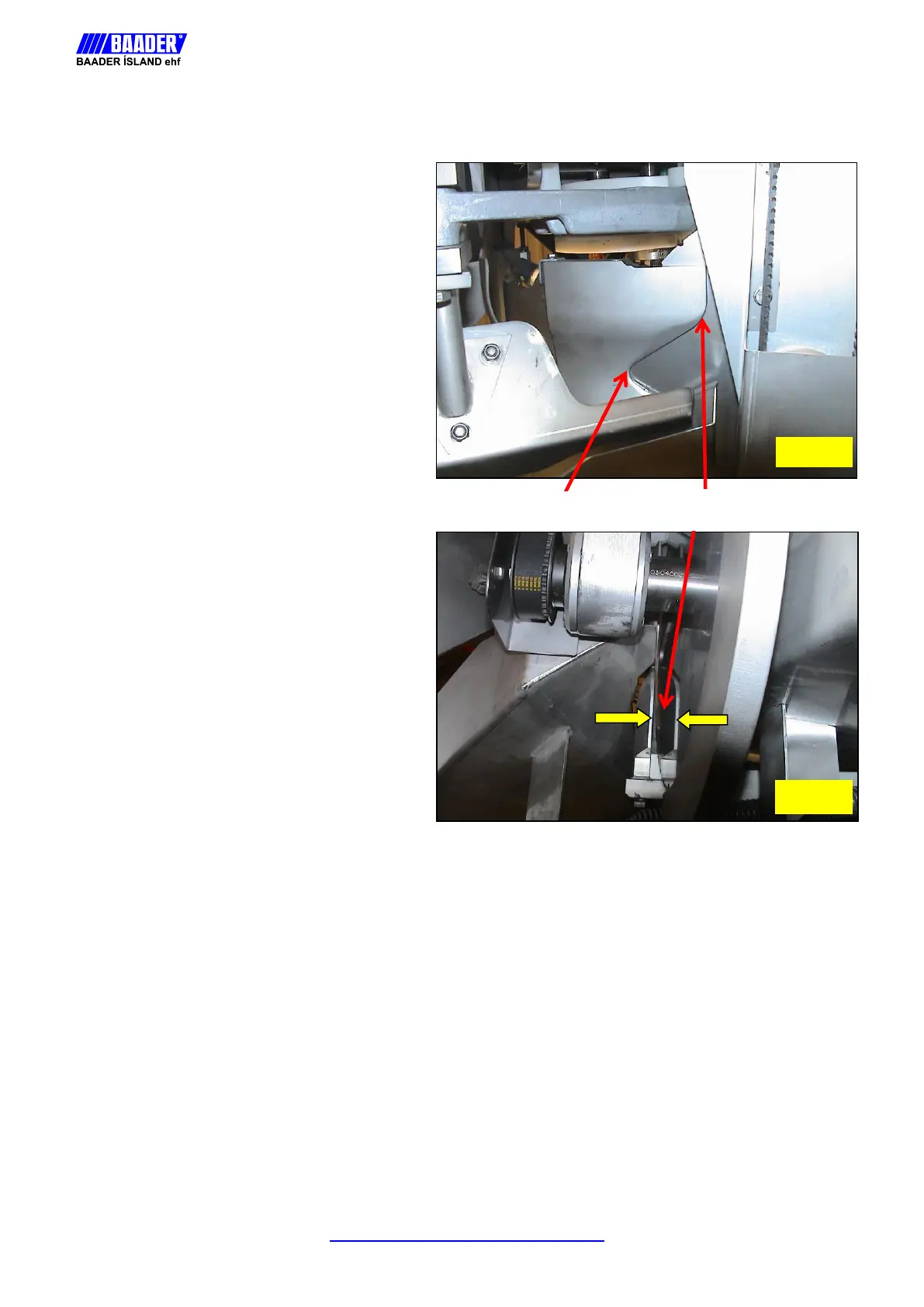

The distance between the middle of the
transport fork to the knife should be
between 2 to 3mm in the middle and
10mm at the end. See (fig.16 & 17).
Re-tighten the hexagon bolts
(fig.15 item 1 and 2).
Fig 16
Fig 17
2 to 3mm 10mm
