♦ Assembling
BE CAREFUL: because of the weight of the machine and its cupboard, any operations of
installation, assembly and adjustment must strictly be carried out by
2 people.

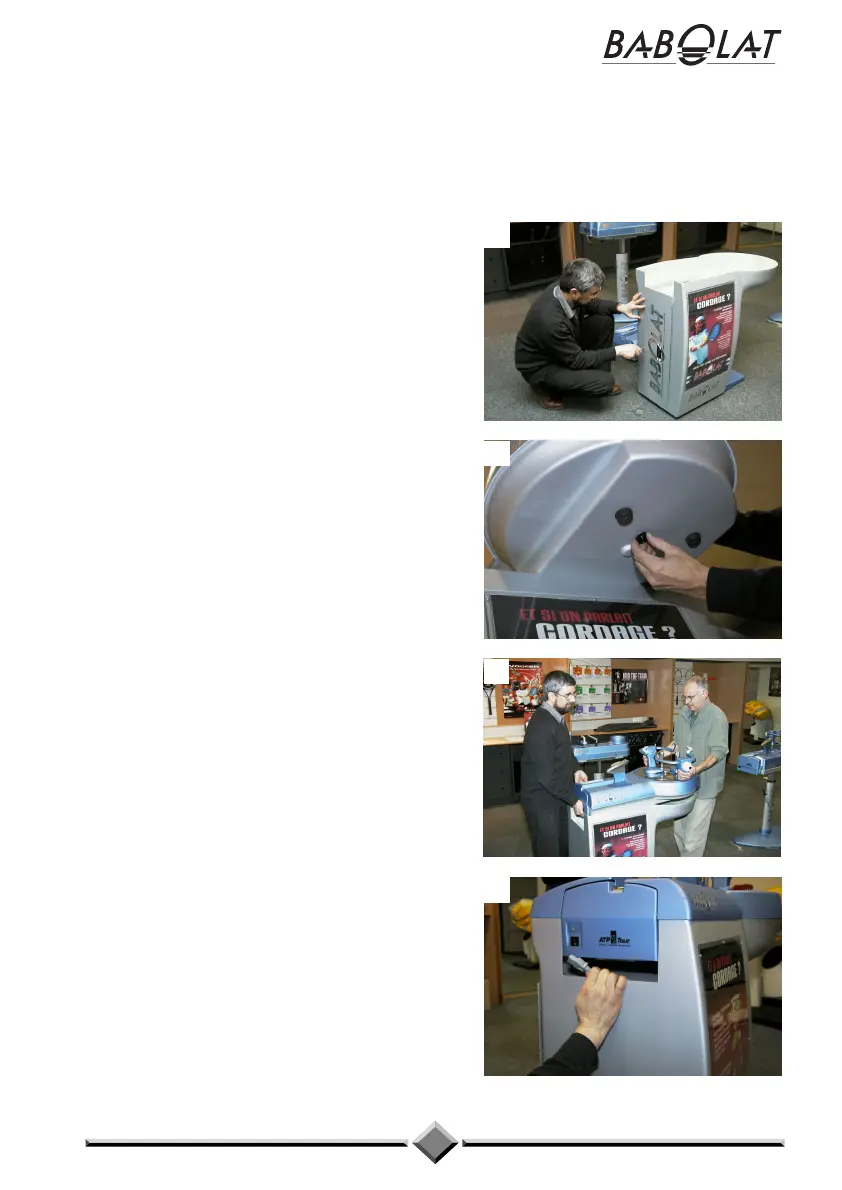

Place the cupboard in the required position.
On the side of the cupboard, remove the
BABOLAT decorative plate (1), by loosening
the 6 fixing screws with a star screwdriver
(not supplied).
Place the stringing machine on its cupboard,
perpendicular to the latter.
Loosen and remove the transport screw (2)
and keep it in a safe place with the
packaging.
BE CAREFUL: whenever you move the
machine, this screw should be
replaced completely in order to
avoid the accidental rotation of
the turntable during the
transport, especially if you
return your machine. Failure to
comply with this instruction may
limit the application of the
warranty conditions.
Position the machine above its cupboard by
lifting it, on one side by the base of the rack,
and on the other by the 2 posts (3).
Never lift the machine by holding onto the
profiled arms or the Sensor head.
Slot the machine into its cupboard.
Plug in the power cable under the machine (4).
Replace the BABOLAT decorative plate.
