♦ Replacing the circular turntable
Make sure the stringing machine is turned off before replacing the
circular turntable.
BE CAREFUL: this operation must always be carried out by two people.
The turntable is fixed by 3 screws placed at 120°. The screws can be reached through the
hole, intended for this purpose, under the machine.
Turn the circular turntable by hand to position the posts
perpendicular to the line of the pulling head, with the
"racket throat" positioning symbol on the side nearest to
you.

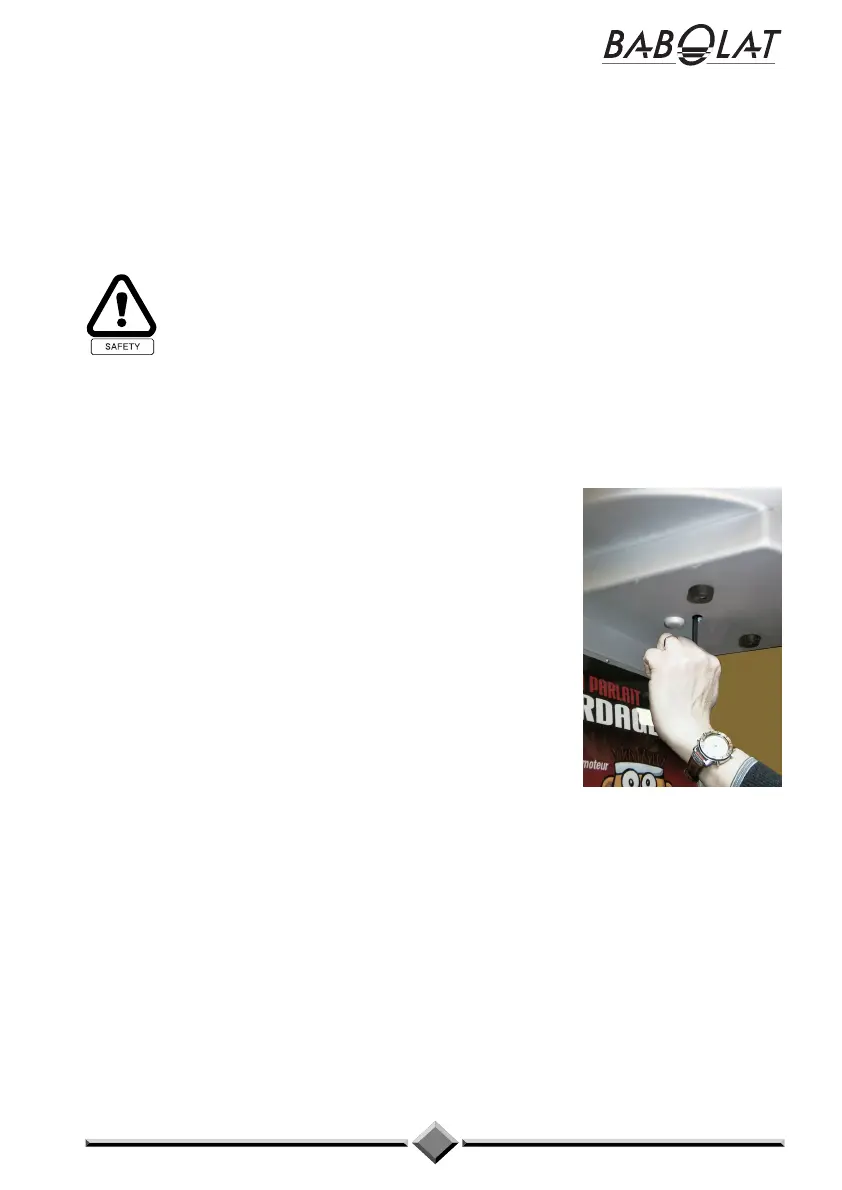

Loosen the first screw using the size-6 Allen key: it will
remain captive.
Rotate the turntable clockwise by 120°, loosen the second
screw and do the same for the third.
Rotate the turntable again by 120° to bring it back to its
initial position and lock the rotating turntable (screen 1,
TURNTABLE menu).
Lift up the turntable by holding it by the posts and remove
it from its central pivot.
Replace it with the new turntable, making sure the inter-
locking elements are lined up.
For re-assembly, following the dismantling procedure in the opposite order.
33
