WWW.BALTIMOREAIRCOIL.COM
8
NOTE: For weight information, refer
to the submittal drawing package.
W1
H
W2
S

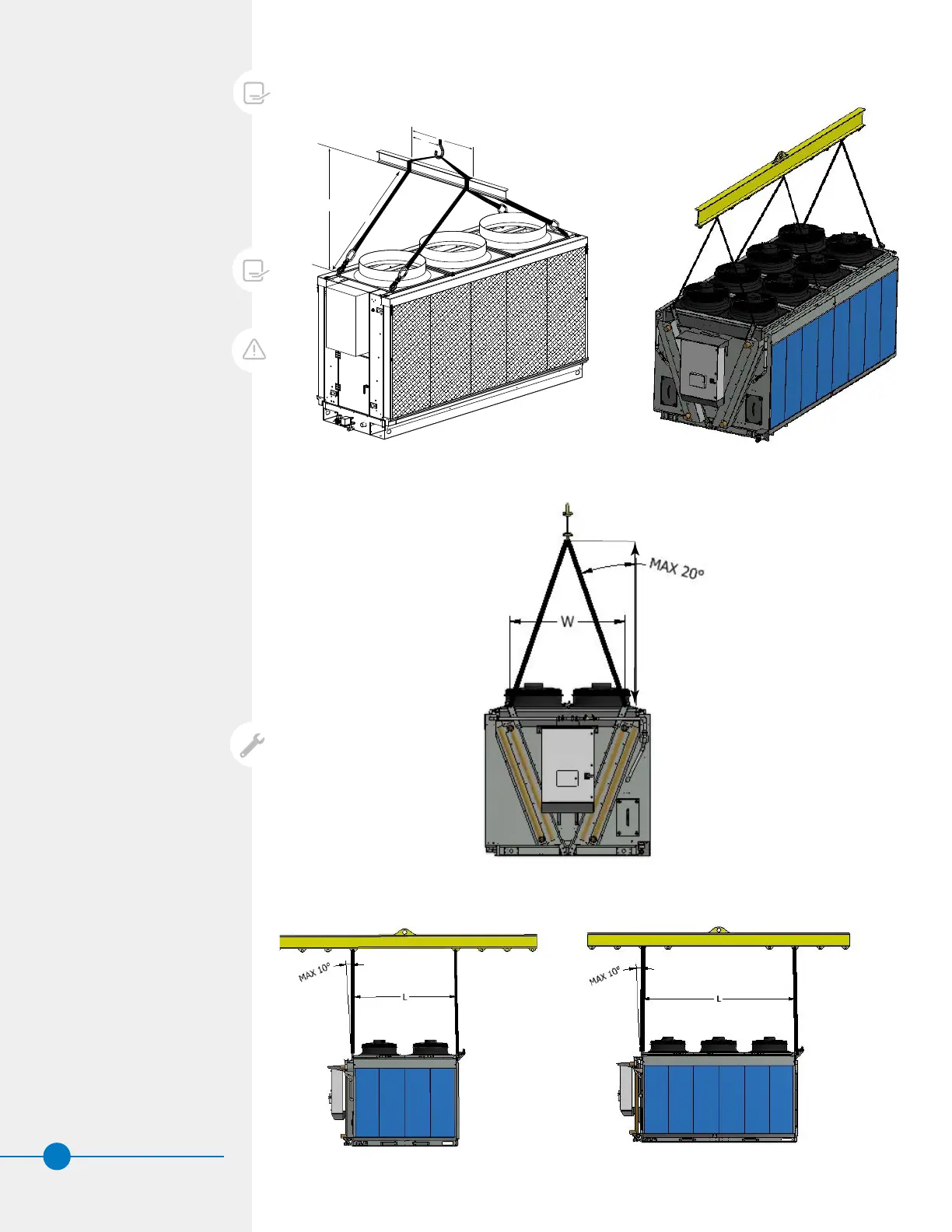

Figure 4a. TSDC Lift (TSDC-xxx-9.6 Shown)
WARNING: Failure to use designated
lifting points can result in a
dropped load causing severe injury,
death, and/or property damage.
Lifts must be performed by qualified
riggers following BAC published
Rigging Instructions and generally
accepted lifting practices. The
use of supplemental safety slings
may also be required if the lift
circumstances warrant its use,
as determined by the rigging
contractor.
H
NOTICE: To avoid damage during
hoisting, a spreader beam should
be used and the angles shown in
the figures must be observed.
Figure 7. TSDx2-xxx-18.6 Side View (6 Fan)
NOTICE: When lifting the TSDC or
the TSDC2/TSDF2, the spreader bar
is oriented differently. The TSDC2
and TSDF2 have strict requirements
on lifting angles and the number of
lifting points.
Figure 4b. TSDC2 and TSDF2 Lift (TSDC2-xxx-24.8 Shown)
Figure 6. TSDx2-xxx-12.4 Side View (4 Fan shown)
Figure 5. TSDC2 or TSDF2 End View
