WWW.BALTIMOREAIRCOIL.COM
6
Layout Guidelines
TrilliumSeries Adiabatic Products must be located to ensure an adequate supply of fresh
air to the coils. The axial fan(s) are not equipped to overcome external static pressure.
When units are located adjacent to walls or in enclosures, care must be taken to ensure
the discharge air is not deflected and recirculated back to the air intakes.
Each unit must be located and positioned to prevent the introduction of discharge air
into the ventilation systems of the building on which the unit is located and of adjacent
buildings. For detailed recommendations, see Figure 3 and Table 1.

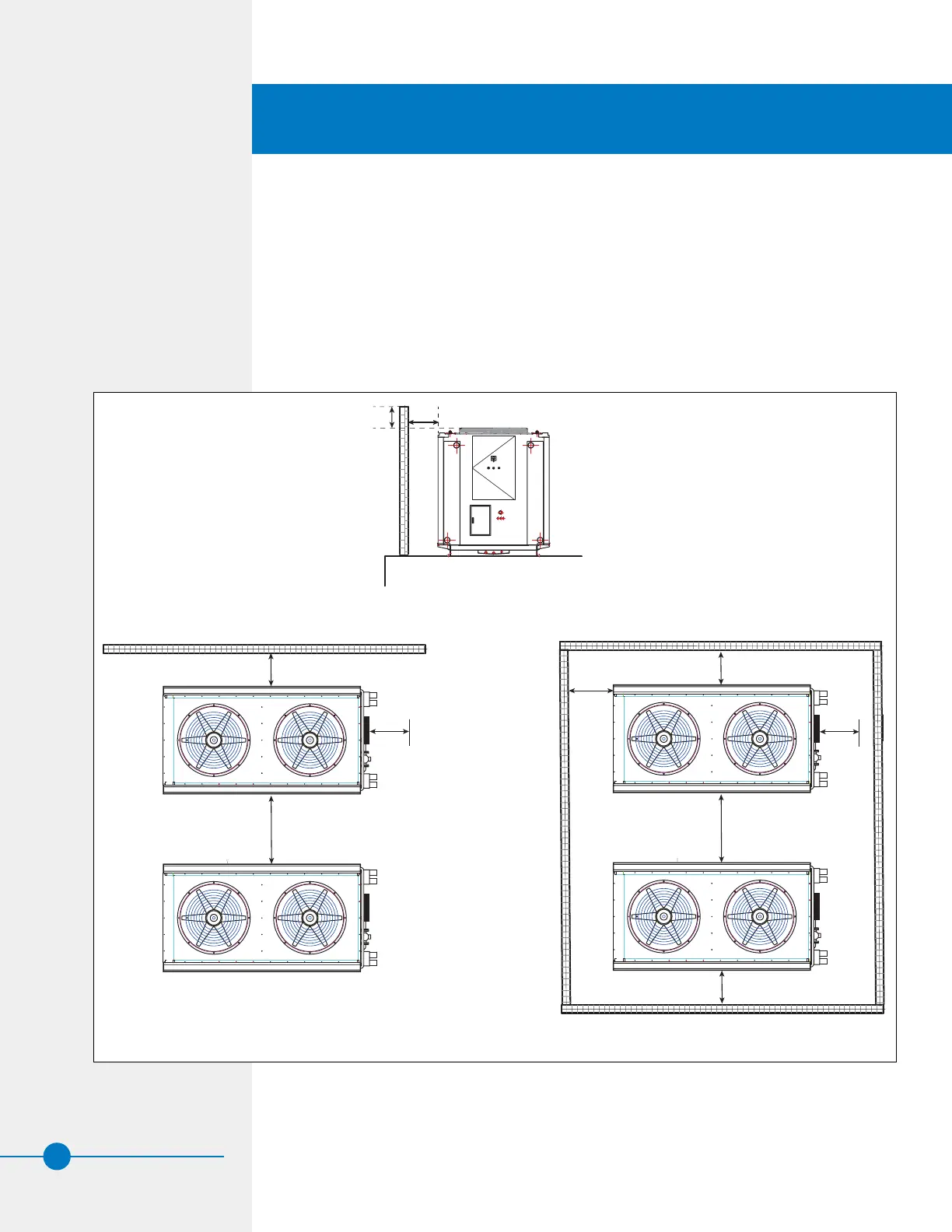

Figure 3. TrilliumSeries™ Adiabatic Product Location
Elevation View
Parapet wall is not restrictive provided D
(or C, as applicable) is equal to or greater than 2X.
D or C
X
Plan View
(TSDC-058-6.2 Shown)
Minimum Wall Separation Distance
Solid Wall
D
Solid Wall
1.6xD
Note: Additional units can
be added with 1.6xD
between them. This dimension
appliesif there is a wall or no wall.
C
1.6xC
Note: Additional units can
be added with 1.6xC
between them.
Solid Wall
C
3’-6”
3’-6”
3’-3”
Well InstallationsInstallations Near Walls
