ASSEMBLY
1

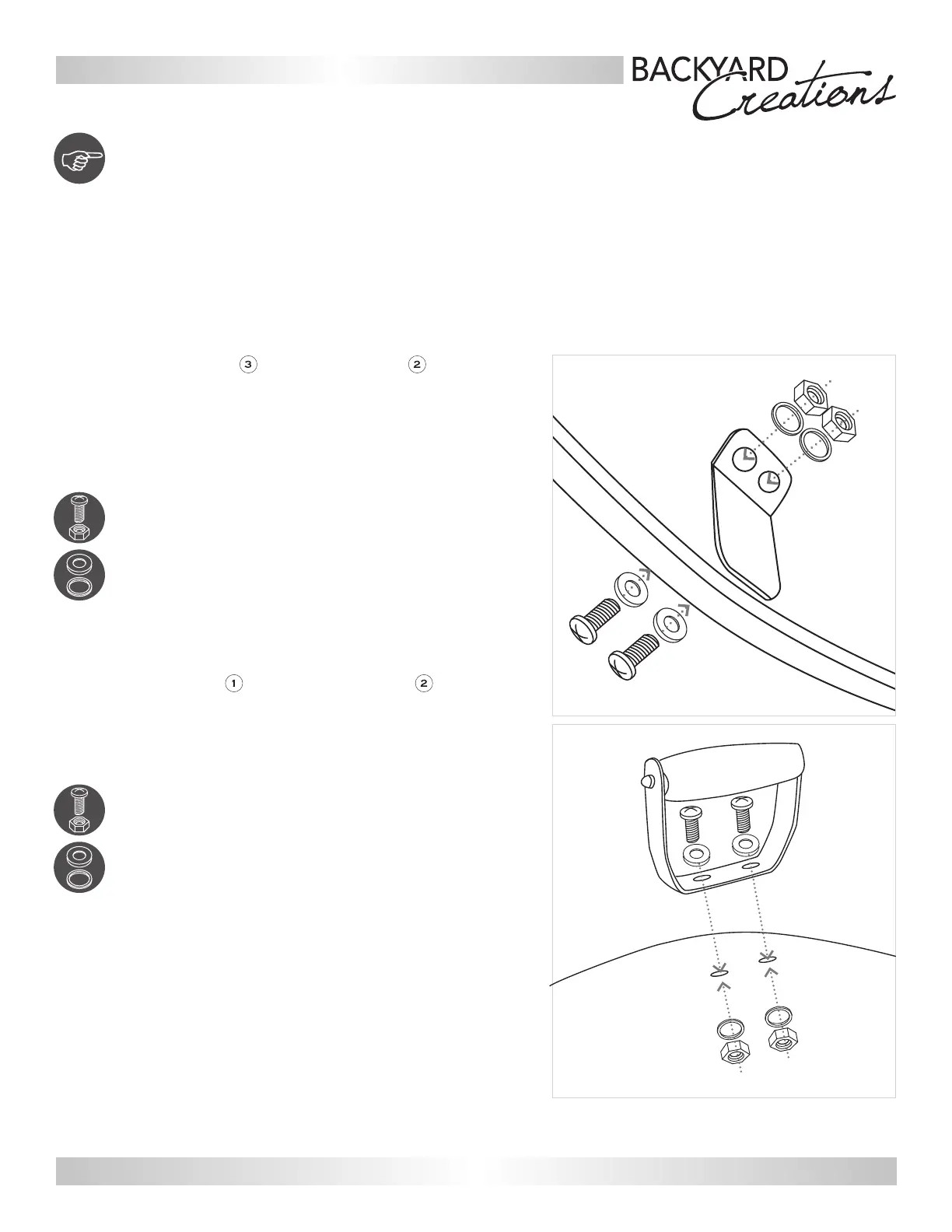

Align holes in Lid Hanger to interior holes in Lid
.
Slide M6x18 Washer
C
onto
M6x15 Screw
A
, then insert
through holes and secure with M6x9 Lock Washer
B
and
M6x15 Nut
A
. Repeat with remaining 2 Lid Retainers.
Tighten all hardware.
Har
dware Used: 6x M6x15 Screw/Nut,
M6x9 Lock Washer,
M6x18 Washer
2
Align holes in Handle with exterior holes in Lid .
Slide M6x18 Washer
C
onto M6x15 Screw
A
, then insert
through holes and secure with M6x9 Lock Washer
B
and
M6x15 Nut
A
. Tighten hardware.
Hardware Used: 2x M6x15 Screw/Nut,
M6x9 Lock Washer,
M6x18 Washer
PREPARATION
Before beginning assembly, be sure to empty contents of carton and make sure all parts are present. If any parts are
missing, please contact Customer Service at cservice@welltraveled.net.
Place all parts on a soft, level surface for assembly. You will need 17mm, 10mm, and 8mm wrenches, a Phillips screwdriver,
and Pliers for assembly.
1
2
