8
ASSEMBLY

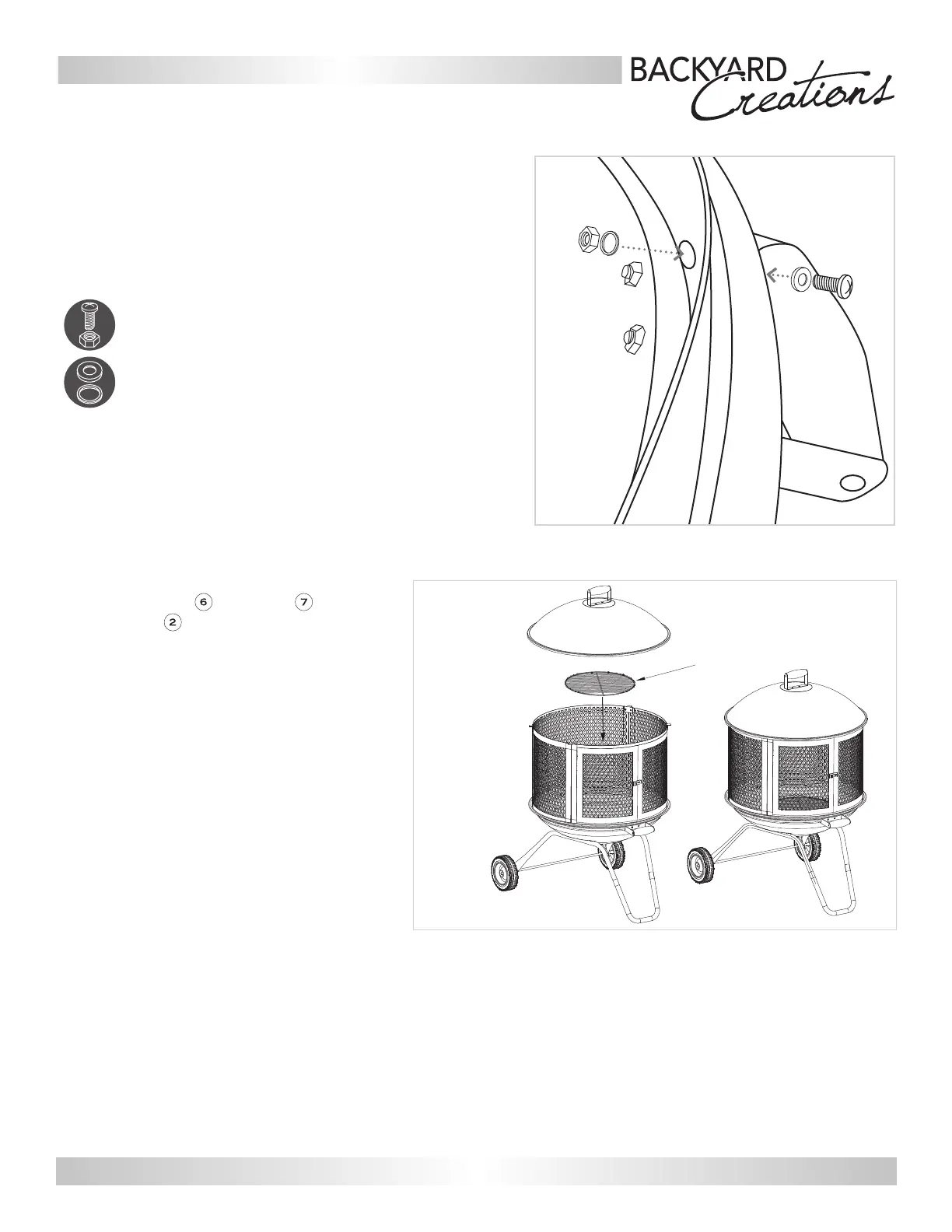

Place Grate in the Bowl and place
the Lid
on top.
9
9
Secure assembled spark screen by aligning holes in front
(near Handle) and rear of Bowl with
holes in center of
Screen Door and the Screen opposite it. Slide M6x18
Washer
C
onto M6x15 Screw
A
, then insert through holes
and secure with M6x9 Lock Washer
B
and M6x15 Nut
A
.
Tighten all hardware.
Hardware Used: 2x M6x15 Screw/Nut,
M6x9 Lock Washer,
M6x18 Washer
6
