7
INSTALLATION
1. Carefully unpack all items from the box. Place the base in the final position. There must
be a minimum of 24 in / 60.96 cm of clearance from the side of the table top to any
combustible walls.

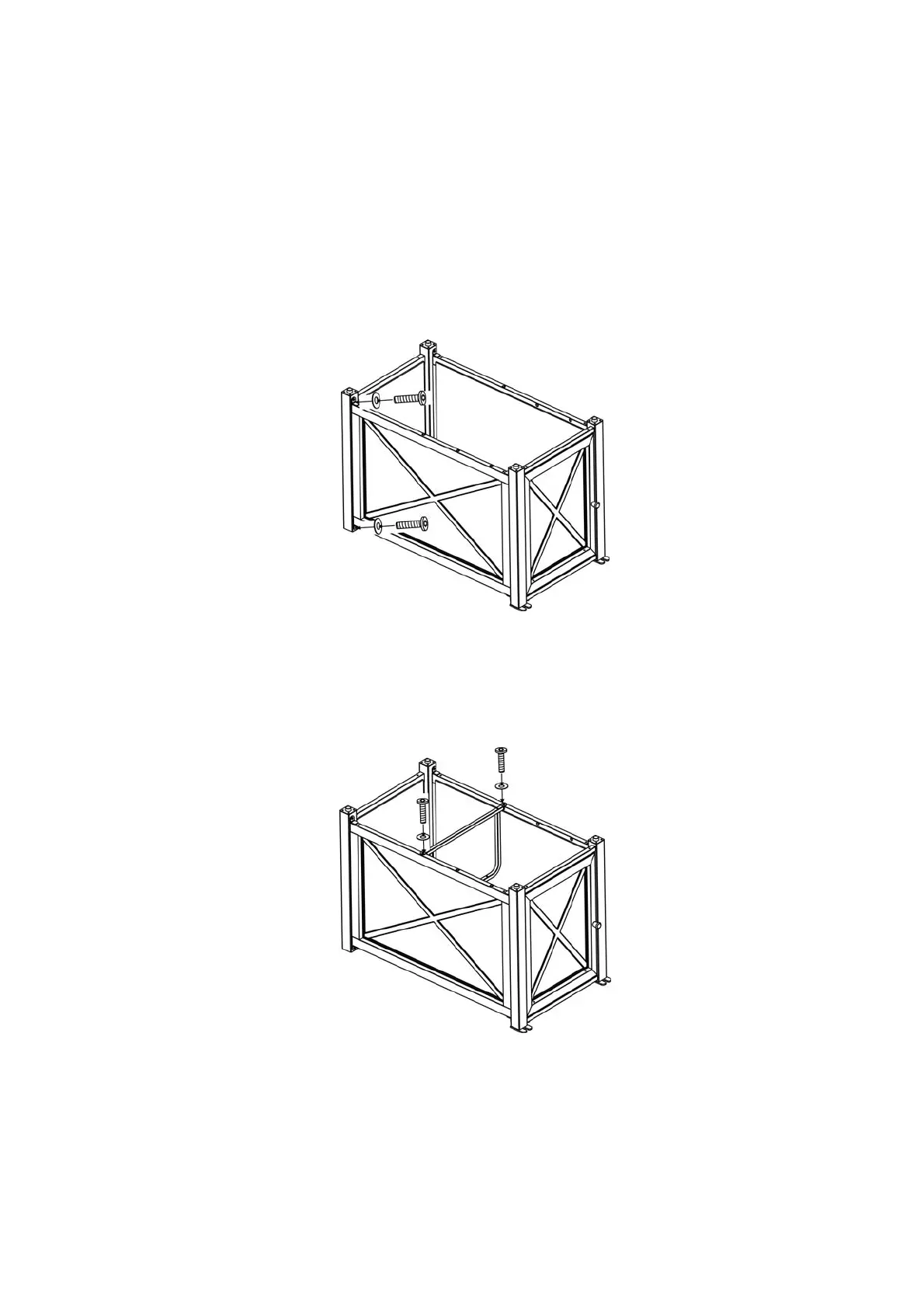

2. Attach the back frame to the side panels by using four 1/4"x15 mm bolts and Ø6.5x1.0
mm washers as shown in Figure 2. Guide the bolts through the holes in back frame, into the
predrilled holes in the side panels. Hand tighten only.
Figure 2
3. Attach the middle support to the side panels by using two 1/4"x15 mm bolts and Ø6.5x1.0
mm washers as shown in Figure 3. Guide the bolts through the holes in the middle support,
into the predrilled holes in the side panels. Hand tighten only.
Figure 3
3. Attach the lp support frame to the side panels by using two1/4"x15 mm bolts,two 1/4"x30
mm bolts and four Ø6.5x1.0 mm washers as shown in Figure 4.Guide the bolts through the
holes in the LP support frame, into the pre-drilled holes in the side panels. Hand tighten
only.
