BAFANG DP C11.UART User Manual

2
DISPLAY MANUAL DP C11.UART
INTRODUCTION
• Name: Intelligent display
• Model: DP C11.UART
• Scope: EN15194 electrically power assis-
tance cycle
• Appearance: the shell is made of PC1414
in black/white; The liquid crystal display is
made of hardened PMMA, the key button is
made of silicone rubber.

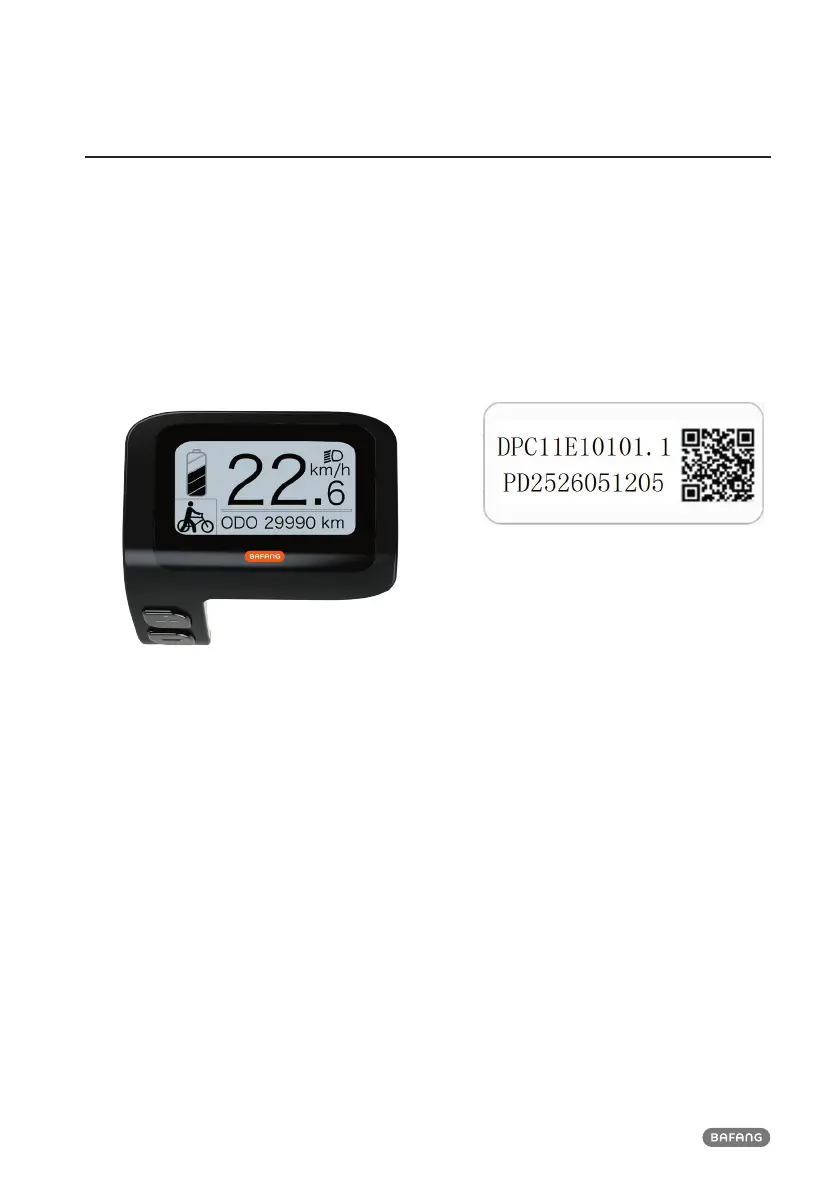

• Number rule on the back of the display
Number on the middle of display back,
number is divided into two lines:
A. Up line (as below)
DP C11.U 1.0
① DP C11.U: BAFANG display mode
② 1.0: hardware version number
B. Down line (as below)
607E1Q7280001
① 607: Wire length and connector model
is 750mm M5.2
② E1: design number
③ Q7280001: Production date is
28st July, 2016; SN is 0001
• Display P type wire label number rule
Number on the middle of P type label, num-
ber is divided into up row and down row
and QR code is at right side (as shown in the
below figure)
Content of QR code:
DPC11E10101.1
PD2526051205
DP C11.U 1.0
607E1Q7280001
The first line:
DPC11E10101.1 - Software version
The second line:
PD2526051205 - Parameter code
The last two lines:
DP C11.U 1.0 / 607E1Q7280001 - SN
