7.4 DISPLAY INSTALLATION

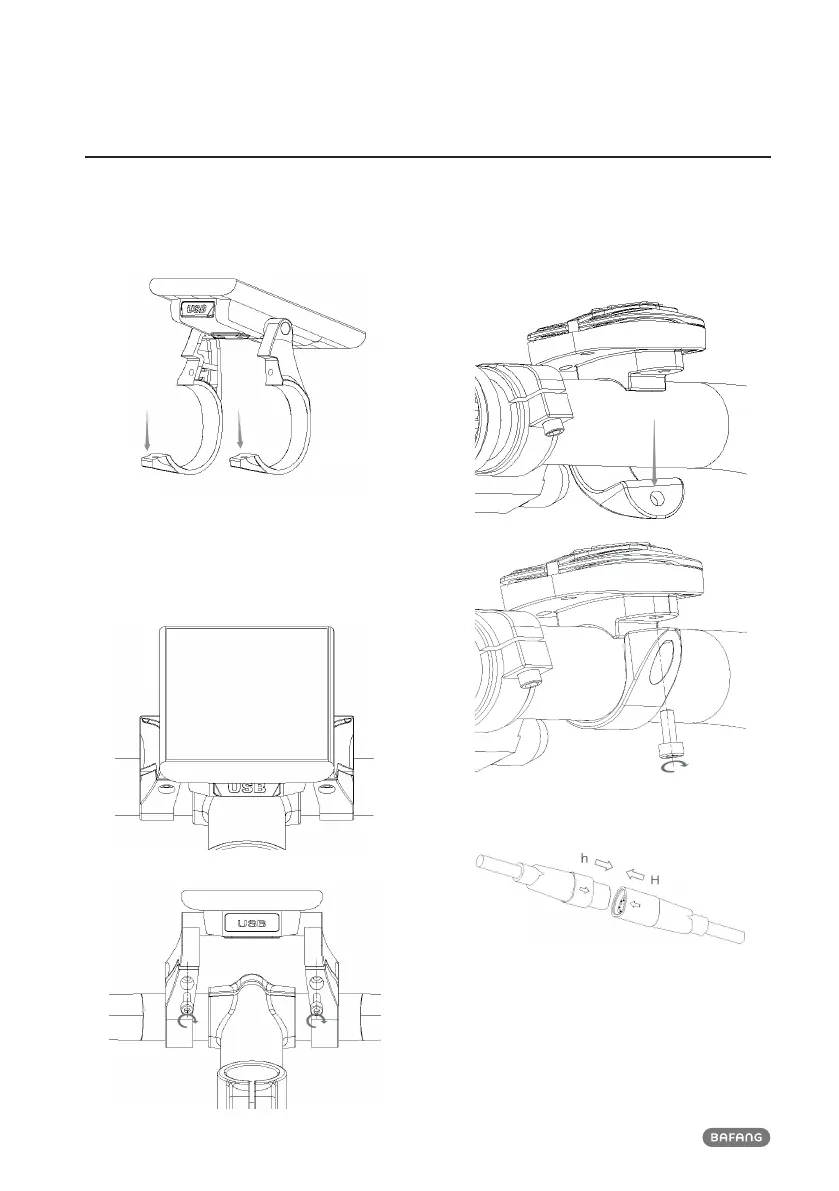

1. Open the clamps of display and insert
the rubber rings on the inside of the
clamps.
2. Now place the display on to the handle-
bar in the correct position. Now with 2
X M3*12 screws tighten the display into
position. Torque requirement: 1N.m.
3. Open the clamp on the D-pad and place it
in the correct position, Using 1 X M3*10
screw tighten the D-pad onto the handle-
bar. Torque requirement: 1N.m.
4. Please link the display to the EB-BUS cable.
