Connection of Services
2
2.4 THE ELECTRICAL SYSTEM – 12 VOLT
Your Leisure Home is fitted with a 12 volt charger as standard. This converts the 230 volt AC supply into
12 volt DC. This enables the 12 volt equipment in the caravan to function.
The 12 volt supply to the Leisure Home can be
isolated via the 12 volt on/off switch on the control
panel.
2.4.1 12-volt Control Panel
The system is fitted with an automatic relay to select
the power source. When a car is connected via lead
the car power will be used. When a car is not
connected the power supply will be used to power
the Leisure Home.
The control panel is fitted with a master 12-volt
switch; this enables you to isolate the 12-volt supply
in the Leisure Home.
The control panel controls the operation of various
12V equipment
● Water pumping light, is only activated when the
pump is running

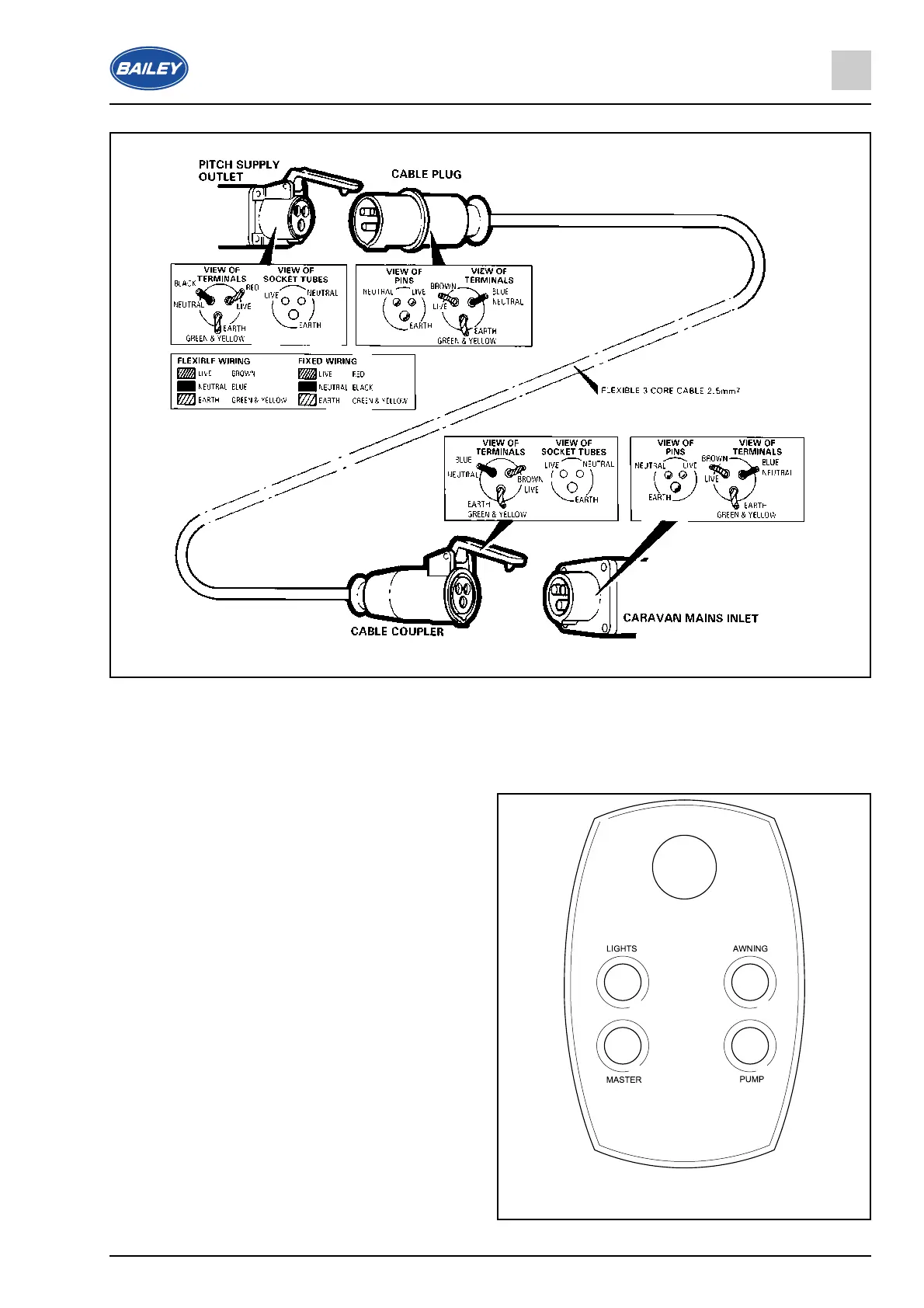

RETREAT CONTROL PANEL
