4-8

General

4.3 BED ASSEMBLY

4.3.1 Side Dinette bed – Assembling the Double Bed

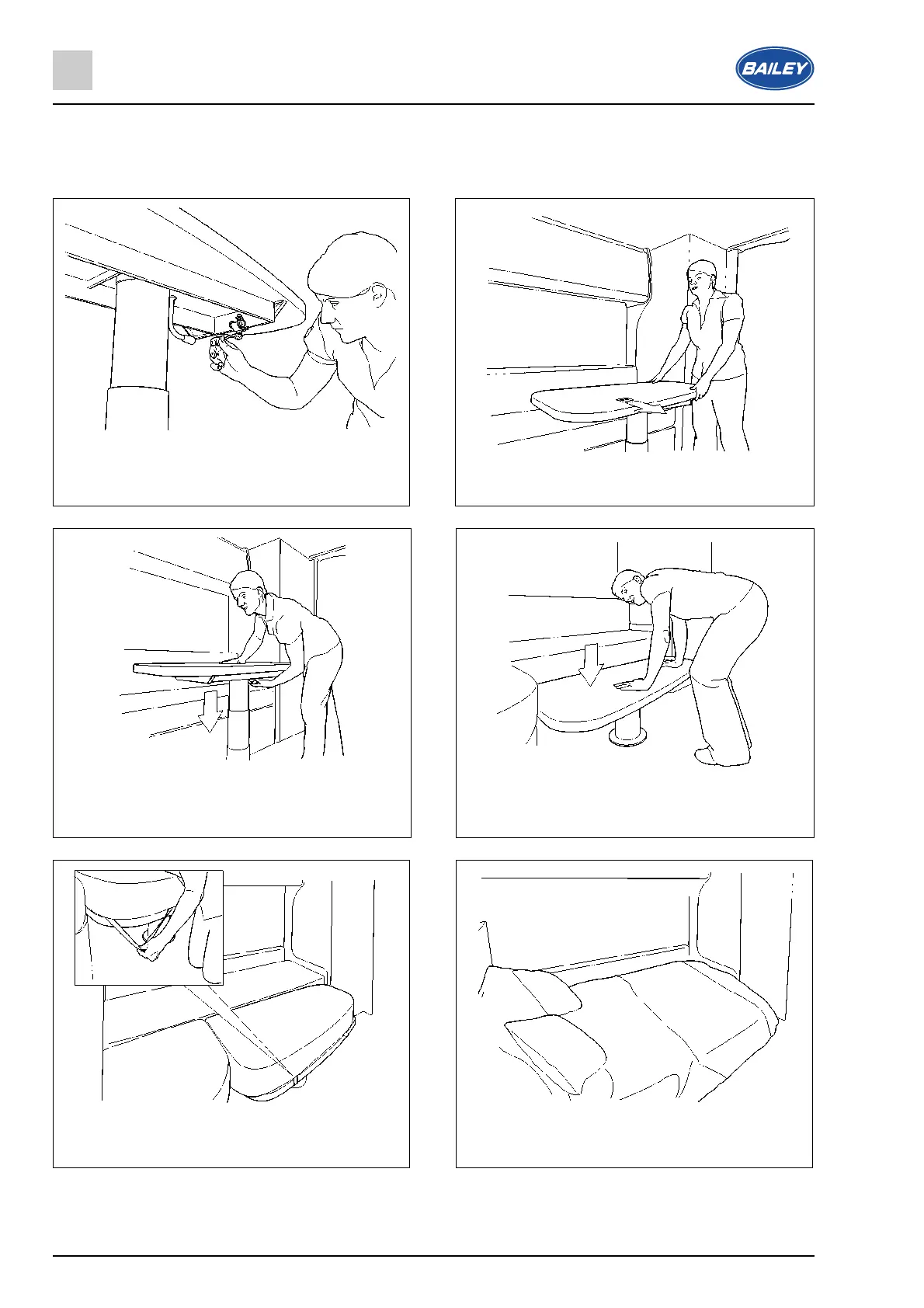

Step 1 Loosen right hand lever to allow movement of

table top.

Step 2 Slide table top to the left (towards the kitchen)

as shown.

Step 3 Pull black handled lever to the left (towards the

kitchen) with one hand and push down on the table

with the other hand to lower it.

Step 4 Once table is at the correct height it will click

into position.

Step 5 Remove back rest and place the supplementary

bed cushion on top of the table. Secure it by placing

the elestic around either end of the table.

Step 6 The side dinette bed is now ready to use (please

note bedding set is available as a cost option).
