Location of Parts
8
A
B
D
C

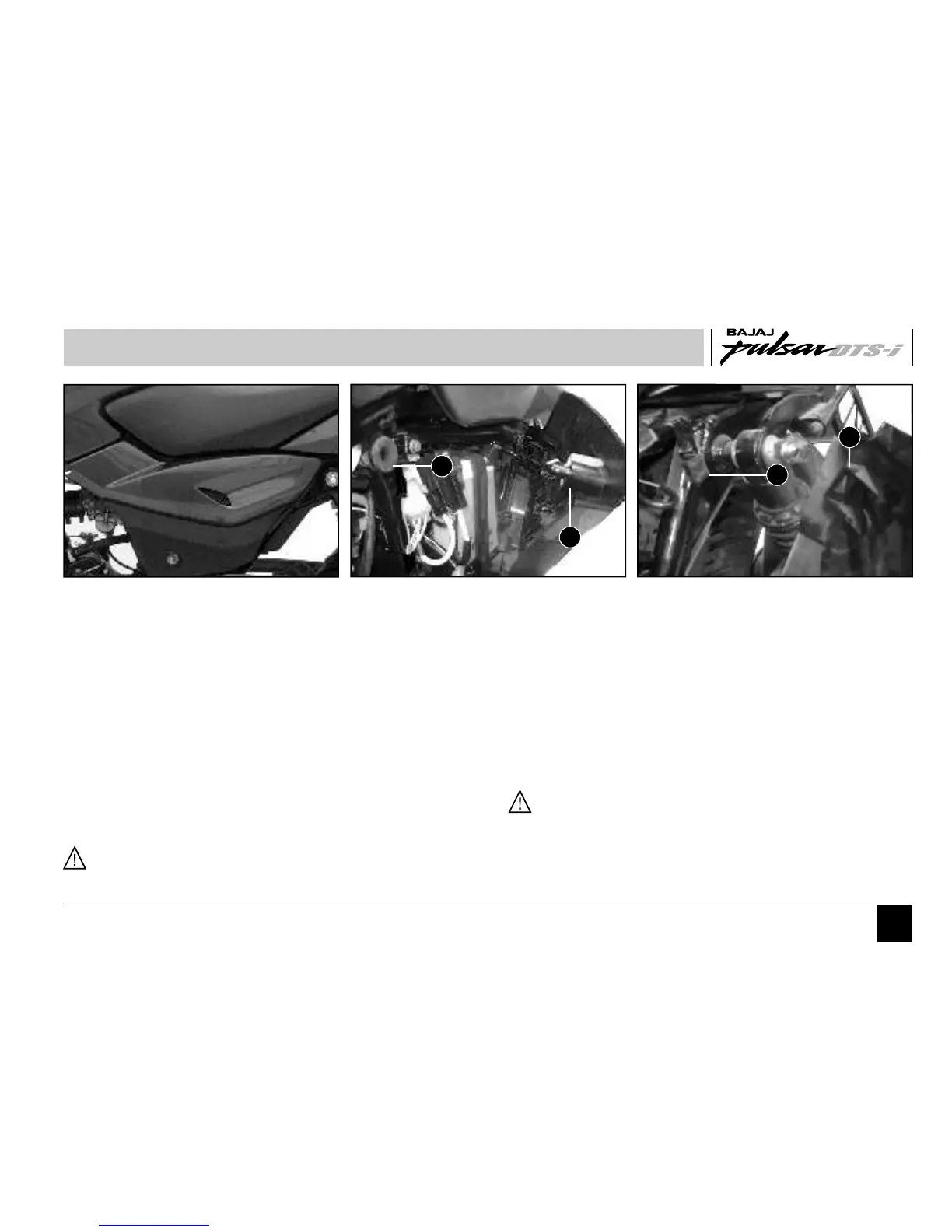

Removal of Side Cover LH or RH
• Insert the key into the cover lock and turn the key
clockwise & pull the ‘Side Cover’ out from the
bottom.
• Pull front side of ‘Side Cover’ to release Lug (A)
provided on ‘Side Cover’ from hole (B) provided on
‘Fuel Tank’.
• Slide the ‘Side Cover’ forward (towards the engine)
to release slot (D) provided on rear side of ‘Side
cover’ from bracket with rubber cap (C) provided on
‘Chassis’.
• Take out ‘Side Cover’.
CAUTION : Remove cover as described above,
otherwise the lugs may break.
Fitment of Side Cover LH or RH
• Match slot (D) provided on rear side of ‘Side Cover’
with bracket (C) provided on ‘Chassis’ and slide
‘Side Cover’ backward (towards Tail lamp).
• Match Lug (A) provided on front side of ‘Side Cover’
with hole (B) provided on ‘Fuel Tank’ and press
‘Side Cover’ inside.
• Match the lock plate of ‘Side Cover’ properly with
bracket on ‘Chassis’ and Lock.
CAUTION : Fit cover as described above to ensure
proper fitment.
