Location of Parts

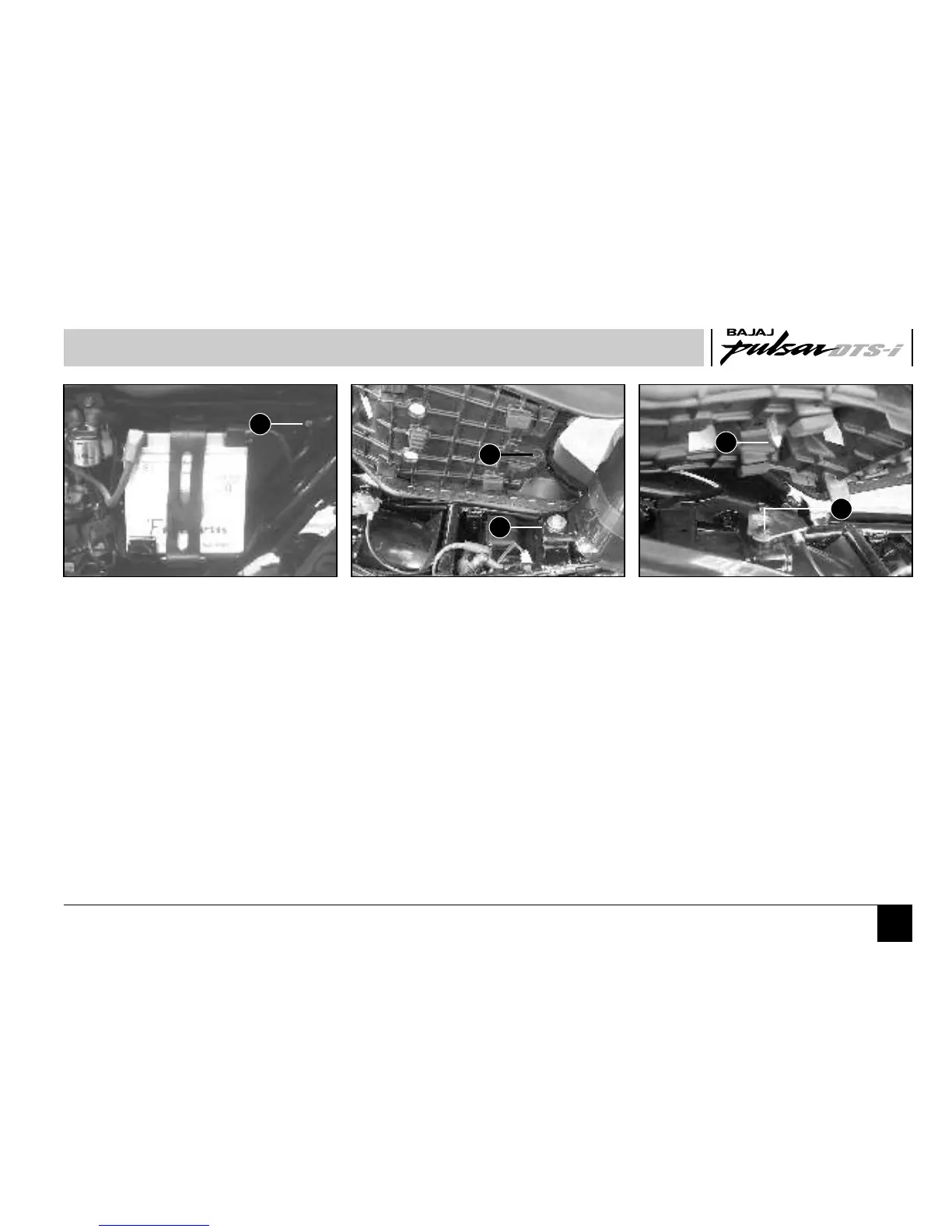

Removal of Seat
• Remove ‘Side Cover’ LH.
• Pull the ‘Seat Release Cable’ (A) to release seat
lock. Keeping cable pulled, tap the center of seat,
lift the seat from rear end and slide it towards tail
lamp to remove seat.
Fitment of Seat
• Match & insert the bracket (‘1’ of Fig. ‘B’) of seat
with slot (‘2’ of Fig. ‘B’) provided below fuel tank
rear mounting on chassis.
• Push seat towards fuel tank and align lock rod (‘3’
of Fig. ‘C’) & seat lock (‘4’ of Fig. ‘C’). Then press
the seat in middle from top to lock the seat.
A : Seat Release Cable
A
Fig. B
1
2
Fig. C
3
4
10
