3

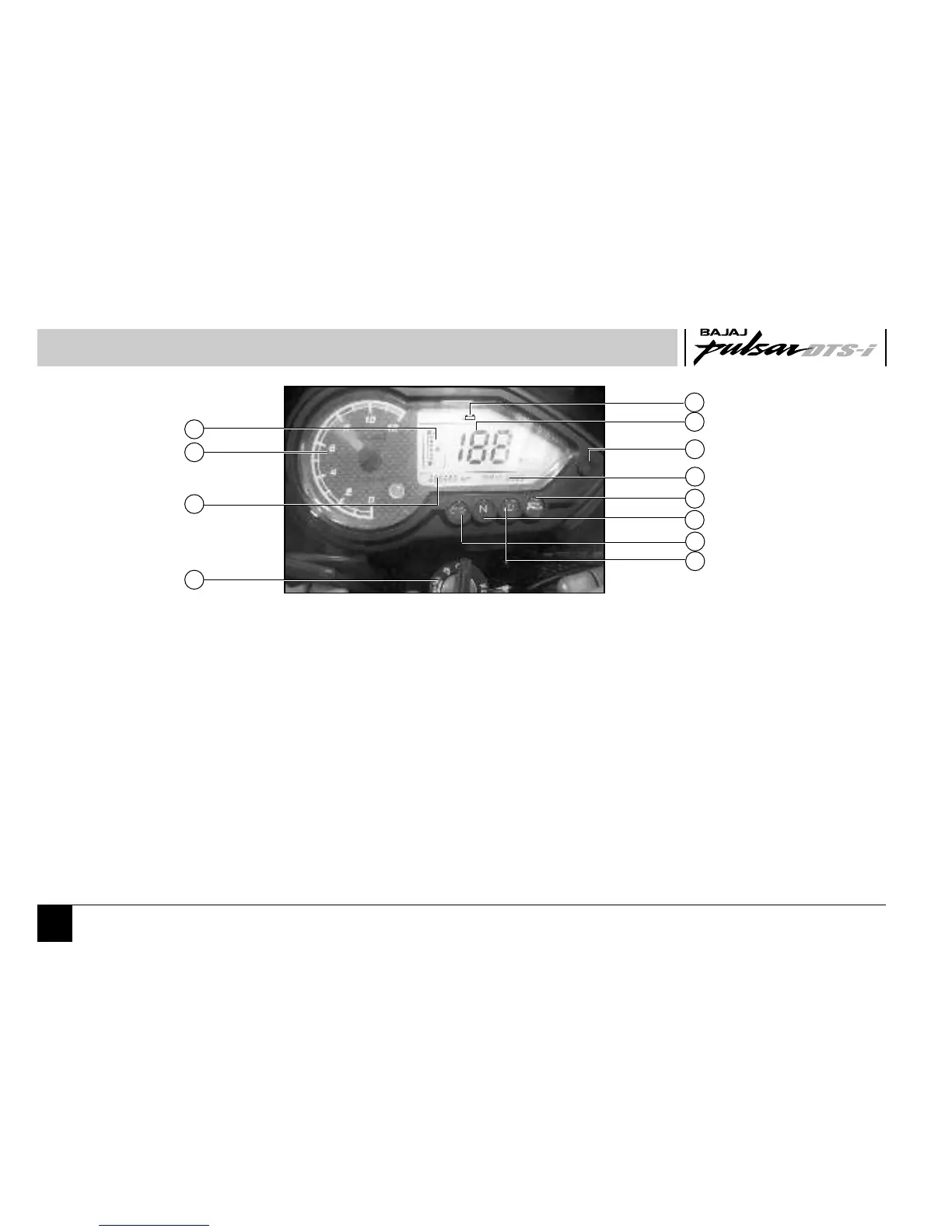

Location of Parts
1. Fuel level indicator : Fuel level indicator shows available fuel in fuel tank & Reserve indicator also.
2. Tachometer : It shows the engine speed in RPM.
3. Odometer : The Odometer shows the total distance that the vehicle has accumulated.
4. Steering cum Ignition switch : Key operated switch for Ignition ‘ON’/‘OFF’ & locking handle bar.
5. Battery charge indicator : It shows battery charge condition.
6. Speedometer : The vehicle speed will be display by digit.
7. Trip meter reset button : Both trip meter can be reset to zero by pressing the button.
8. Trip meter : The Trip meter shows the distance traveled since it was last reset to zero.
9. Side stand indicator : When Side stand is ‘ON’, the Side stand indicator will lit.
10. Neutral indicator : When the transmission is in Neutral & Ignition switch ‘ON’, the Neutral
indicator is lit.
11. Turn signal indicator (LH & RH) : When Turn signal switch is turned to Left or Right, Turn pilot indicator - LH
or RH will flash.
12. Hi beam indicator : When Headlight is ‘ON’ & Hi beam is selected with engine running, Hi beam
indicator will be lit.
1
3
4
2
6
9
10
7
8
+
-
12
5
11
