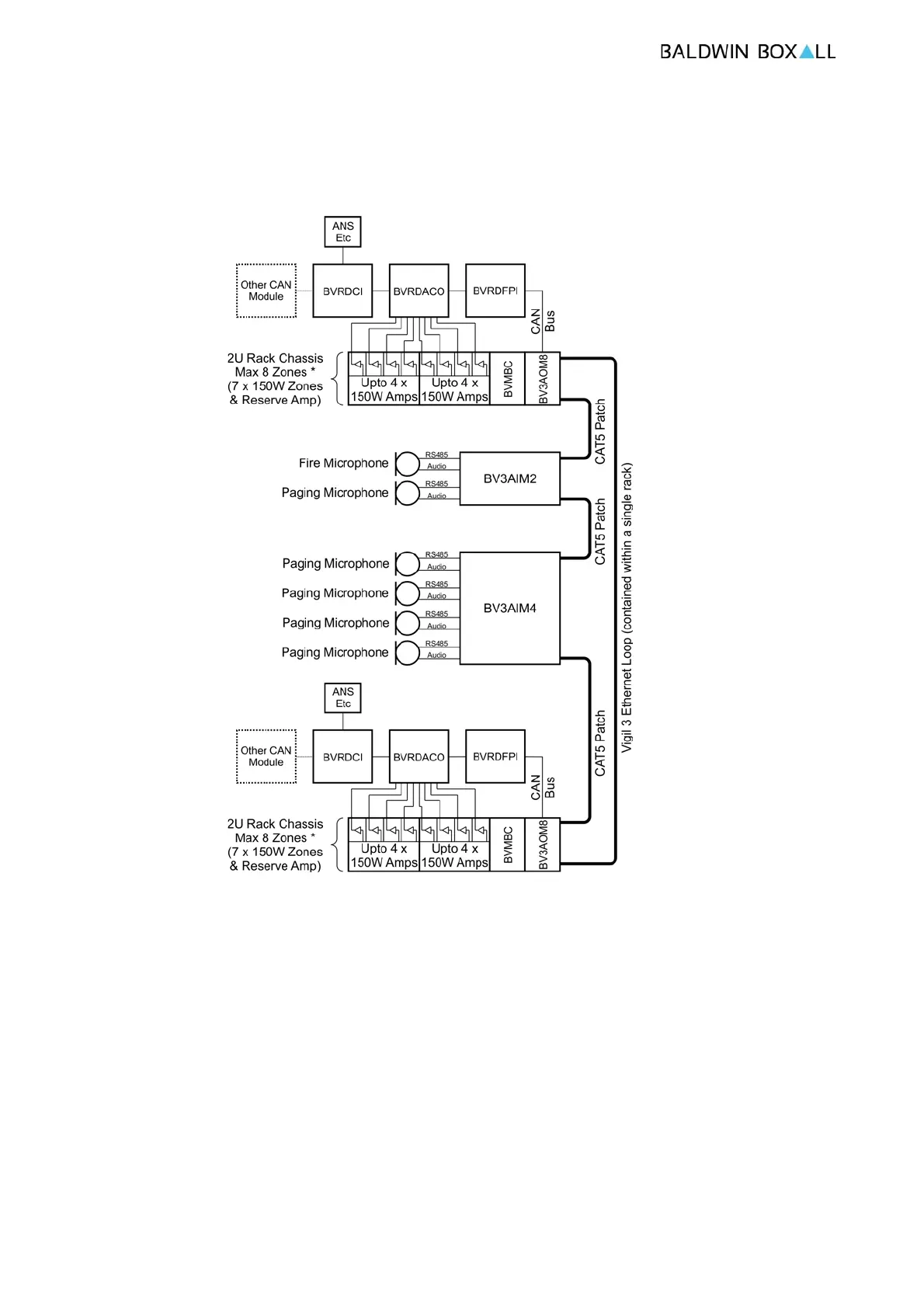

Please see a typical single rack VIGIL3 Voice Alarm System Block
Diagram below.
Figure 2.1 — Typical single rack VIGIL3 system
2.2 CENTRALISED VS DISTRIBUTED /
N
ETWORKED SYSTEMS
VIGIL3 systems can be realised as centralised (single rack) or
decentralised (networked systems).
For centralised systems the Ethernet loop is completed using
CA
T5 patch leads. For networked systems VIGIL3 networking
modules are used for rack to rack connections;
