Balluff BSP-B Series User Manual

www.balluff.com 13English
Electrical data
Supply voltage U
S 18...36 V DC
Output current max. 250 mA
Interface IO-Link V1.1
No-load supply current I
0
max. ≤ 50 mA
Reverse polarity protected Yes
Short-circuit protected Yes
Switching frequency f 200 Hz
Accuracy according to IEC 60770 ≤ ±0.5% FSO BFSL
Temperature error
BSP standard, high-end and
flush-mounted starting at 100 bar
BSP flush-mounted up to 50 bar
≤ ±0.3% FSO/10 K
.
≤ ±0.15% FSO/10 K
Mechanical data
Housing material
BSP standard sensors
BSP high-end sensors
PA 6.6, stainless steel
Stainless steel
Measuring cell material Ceramic
Sealing ring material Fluoroelastomer
Plug connector socket M12, 4-pin
Process connection
BSP standard, high-end
BSP flush-mounted high-end
G 1/4", 1/4" NPT
G 1/2" flush-mounted
Displays
Function indicators LEDs
Display 7-segment display
Ambient conditions
Ambient temperature range
BSP standard sensors
BSP high-end sensors
–25...+85 °C
–40...+85 °C
Material temperature
BSP standard sensors
BSP high-end sensors
–25...+125 °C
–40...+125 °C
Degree of protection as per
IEC 60529
IP 67 when connected
Technical data
Pressure data
BSP, not
flush-mounted
BSP,
flush-mounted
Relative nominal
pressure
Sensor –1...2 bar
Sensor –1...10 bar
Sensor 0...2 bar
Sensor 0...5 bar
Sensor 0...10 bar
Sensor 0...20 bar
Sensor 0...50 bar
Sensor 0...100 bar
Sensor 0...250 bar
Sensor 0...400 bar
Sensor 0...600 bar
2 bar
10 bar
2 bar
5 bar
10 bar
20 bar
50 bar
100 bar
250 bar
400 bar
600 bar
2 bar
10 bar
2 bar
5 bar
10 bar
20 bar
50 bar
100 bar
250 bar
400 bar
600 bar
Overload pressure
Sensor –1...2 bar
Sensor –1...10 bar
Sensor 0...2 bar
Sensor 0...5 bar
Sensor 0...10 bar
Sensor 0...20 bar
Sensor 0...50 bar
Sensor 0...100 bar
Sensor 0...250 bar
Sensor 0...400 bar
Sensor 0...600 bar
4 bar
20 bar
4 bar
10 bar
20 bar
40 bar
100 bar
200 bar
400 bar
650 bar
750 bar
10 bar
40 bar
10 bar
40 bar
40 bar
80 bar
100 bar
200 bar
400 bar
600 bar
750 bar
Cracking pressure
Sensor –1...2 bar
Sensor –1...10 bar
Sensor 0...2 bar
Sensor 0...5 bar
Sensor 0...10 bar
Sensor 0...20 bar
Sensor 0...50 bar
Sensor 0...100 bar
Sensor 0...250 bar
Sensor 0...400 bar
Sensor 0...600 bar
7 bar
35 bar
7 bar
15 bar
35 bar
70 bar
150 bar
300 bar
750 bar
1000 bar
1000 bar
15 bar
50 bar
15 bar
50 bar
50 bar
120 bar
180 bar
300 bar
750 bar
1000 bar
1000 bar
Permitted vacuum Vacuum-proof

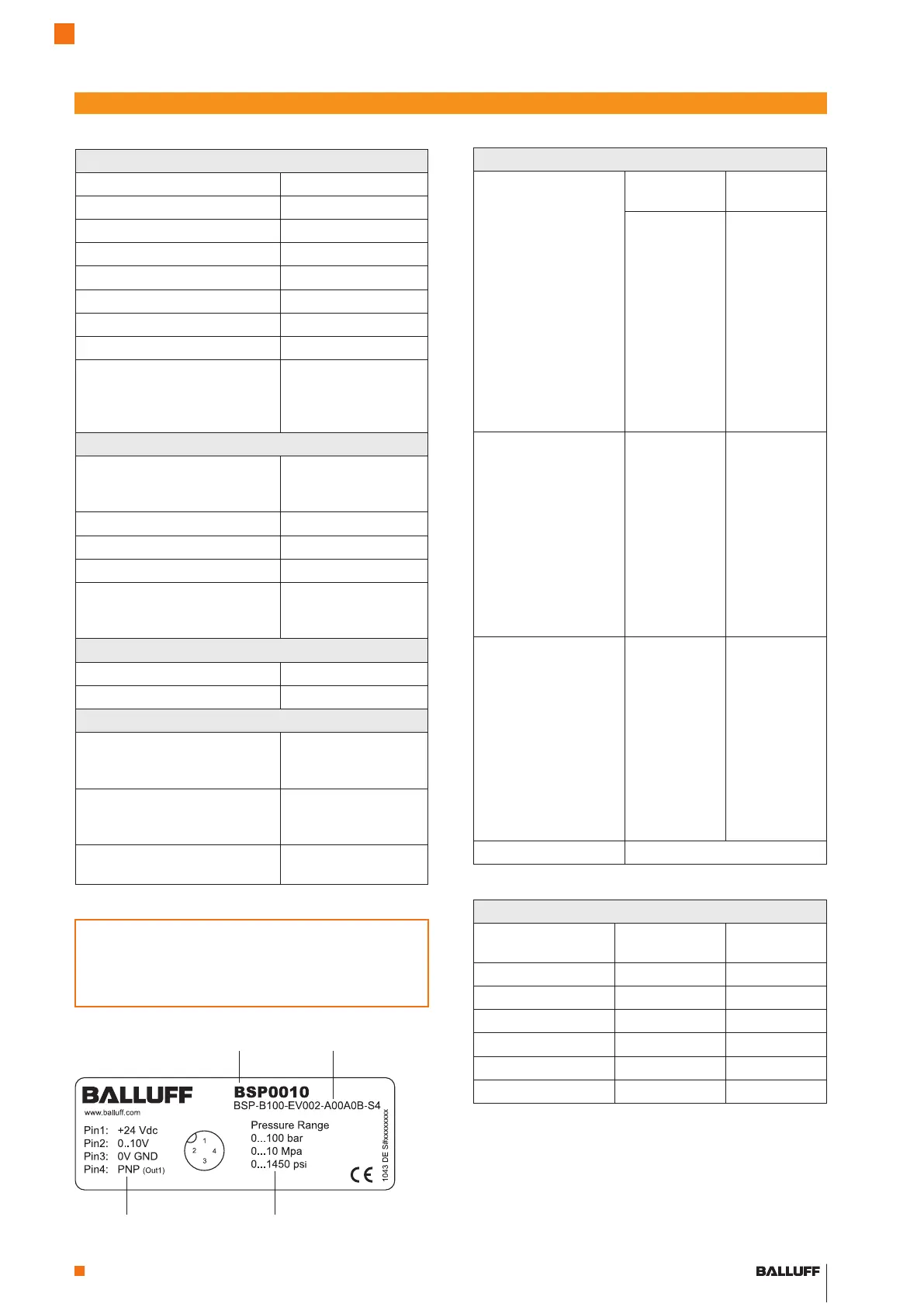

Your pressure sensor type
The type plate contains the exact designation and most
important technical data so that the device can be identi-
fied clearly.
Ordering code Part number
Electr. connections Nominal pressure
BSP Triclamp
Nominal pressure Overload
pressure
Cracking
pressure
0... 100 mbar 2 bar 3 bar
0...250 mbar 2 bar 3 bar
0...500 mbar 2 bar 3 bar
0...750 mbar 5 bar 7.5 bar
0...1 bar 5 bar 7.5 bar
0...2 bar 10 bar 15 bar
Pressure Sensors with IO-Link
BSP-B... /-V...
