3.1 Construction
Electrical connection: The electrical connection is made
via a cable or a connector (see Type code breakdown on
page22).
Housing: Aluminum housing containing the waveguide
and processing electronics.
Magnet: Defines the position to be measured on the
waveguide. Magnets are available in various models and
must be ordered separately (see Accessories on
page18).
Nominal length: To optimally adapt the transducer to the
application, nominal lengths from 50mm to 7620mm are
available.
3
Construction and function
12 72 73
~80 ~80~250 ~250
15
50
35
68
41
36.8
~23
13.8
max. 7
1) Unusable area
2) Not included in scope
of delivery
1)
Nominal length =
Measuring range
Null point End point
Output signal rising:
Error signal
100 %
0 %
BTL5-P-3800-2 magnet
1)
Mounting clamps with insulating bushes
and ISO4762M5x22 cylinder-head screws,
max. tightening torque 2Nm
2)
2)
BTL7…-KA_ _
BTL7…-S32BTL7…-S115

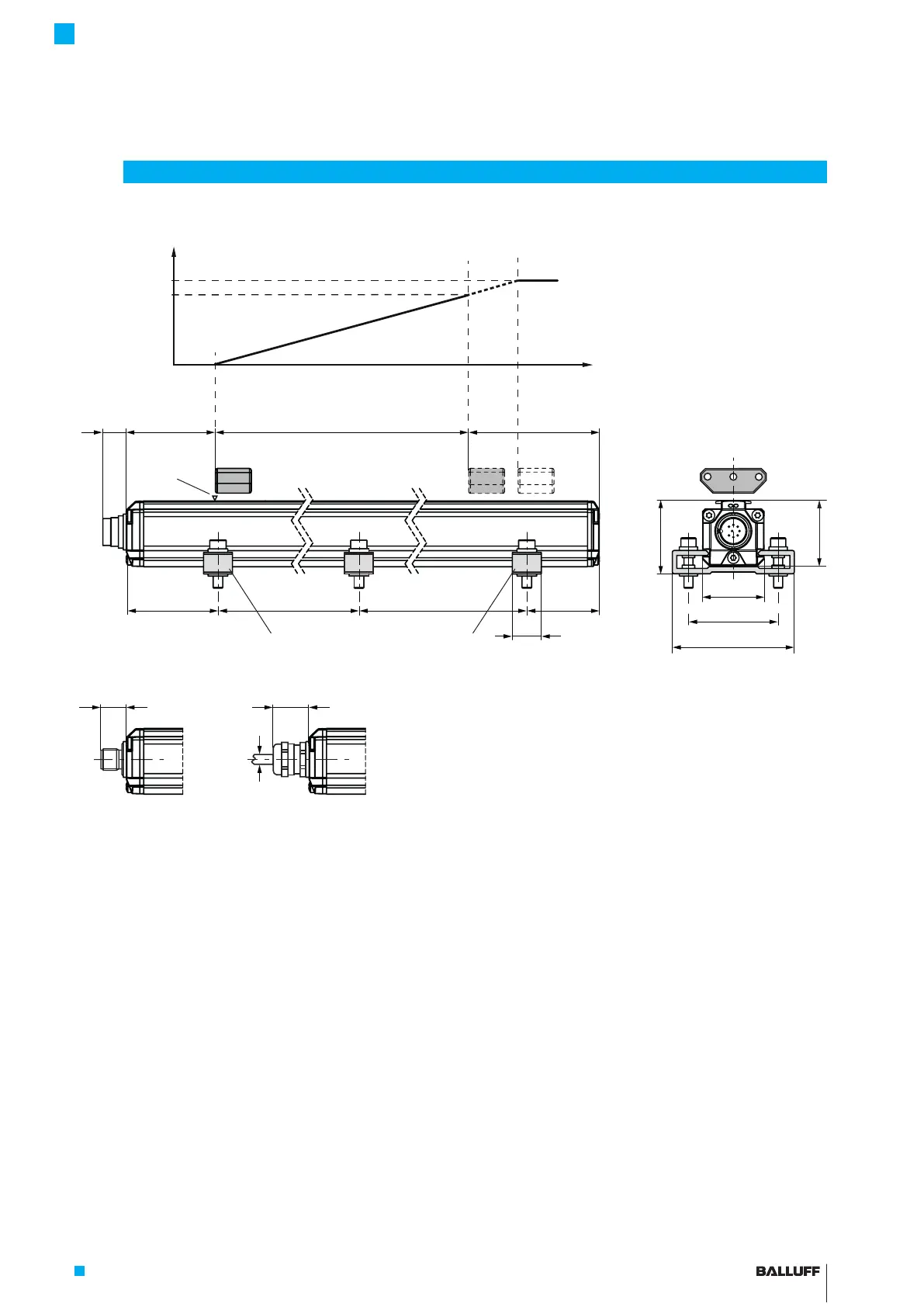

Fig. 3-1: BTL7… transducer, construction
Groove
BTL7-A/E501-M _ _ _ _ -P-S32/S115/KA _ _
Micropulse Transducer in a Profile Housing
