Balluff BTL7-V50D-M P-C003 Series User Manual

14 english

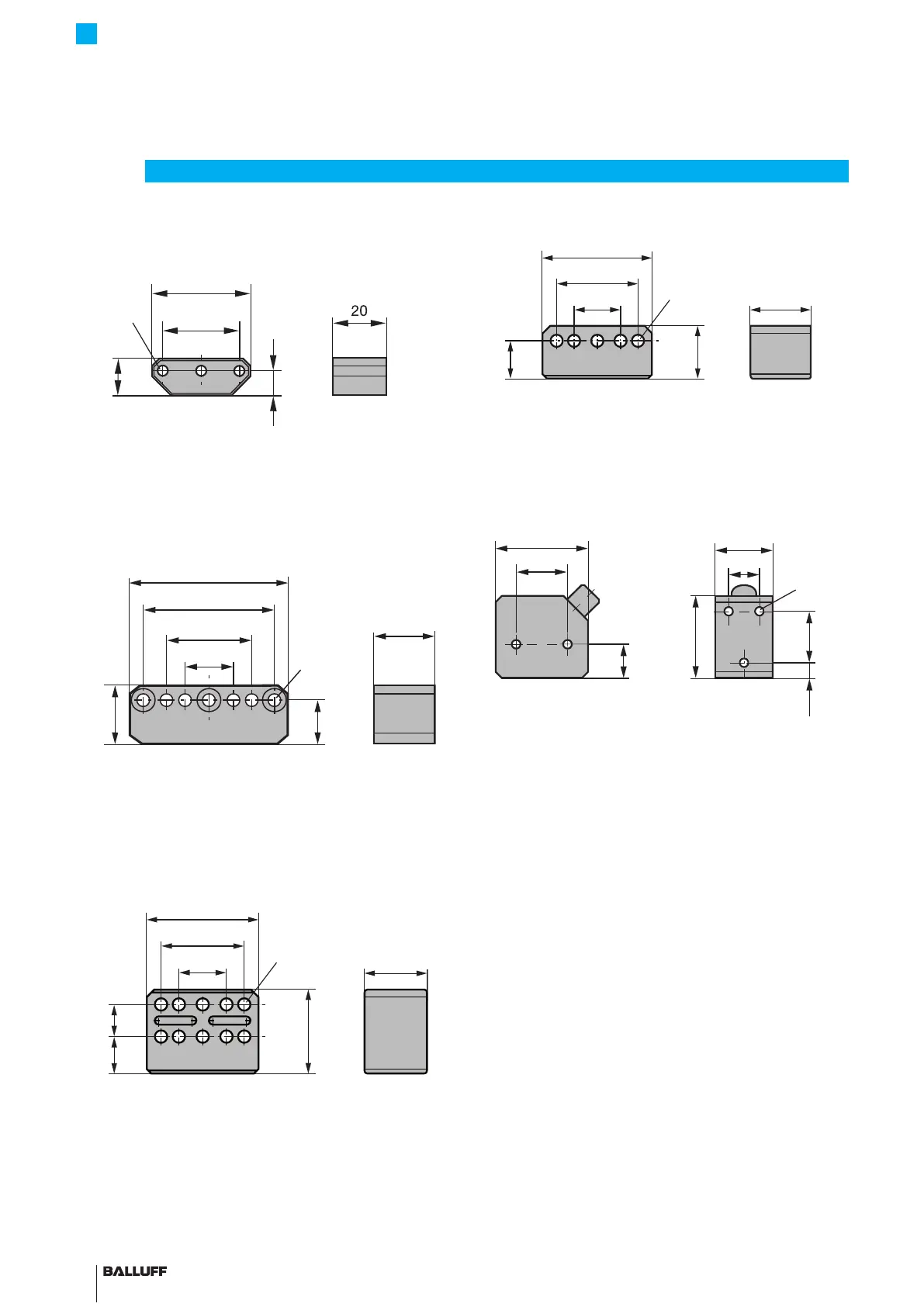

7.3 Floating magnets
BTL5-P-3800-2
38
28
9
14
Ø 4.2
Fig. 7-5: Installation dimensions of BTL5-P-3800-2 magnet
Weight: Approx. 12g
Housing: Plastic
BTL5-P-5500-2
55
28
16
45
21
Ø 4.2
20
15
Fig. 7-6: Installation dimensions of BTL5-P-5500-2 magnet
Weight: Approx. 40g
Housing: Plastic
BTL6-A-3800-2
21
10.813
28.8
28
16
37.6
Ø 4.2
Fig. 7-7: Installation dimensions of BTL6-A-3800-2 magnet
Weight: Approx. 30g
Housing: Plastic
BTL6-A-3801-2
28
16
21
37.6
Ø 4.2
18
13
Fig. 7-8: Installation dimensions of BTL6-A-3801-2 magnet
Weight: Approx. 25g
Housing: Plastic
BTL5-P-4500-1
16.5
45
25
28
15
Ø 4.2
25
7.5
M5x8
40
Fig. 7-9: Installation dimensions of BTL5-P-4500-1 magnet
Weight: Approx. 90g
Housing: Plastic
Operating temperature: −40°C to +60°C
Special advantage of the BTL5-P-4500-1 magnet: Several
magnets on the same transducer can be separately
switched on and off electrically (actuation with a PLC
signal).
7
Accessories (continued)
BTL7-V50T-M ____ -P-C003
Micropulse Transducer in a Profile Housing
