Balluff MATRIX VISION mvBlueFOX Series User Manual

186
1.19.1.3.5 CCD Sensor Data
Device Structure
• Interline CCD image sensor
• Image size: Diagonal 6mm (Type 1/3)
• Number of effective pixels: 1025 (H) x 768 (V) approx. 790K pixels
• Total number of pixels: 1077 (H) x 788 (V) approx. 800K pixels
• Chip size: 5.80mm (H) x 4.92mm (V)
• Unit cell size: 4.65um (H) x 4.65um (V)
• Optical black:
– Horizontal (H) direction: Front 3 pixels, rear 40 pixels
– Vertical (V) direction: Front 7 pixels, rear 2 pixels
• Number of dummy bits: Horizontal 29 Vertical 1
• Substrate material: Silicon

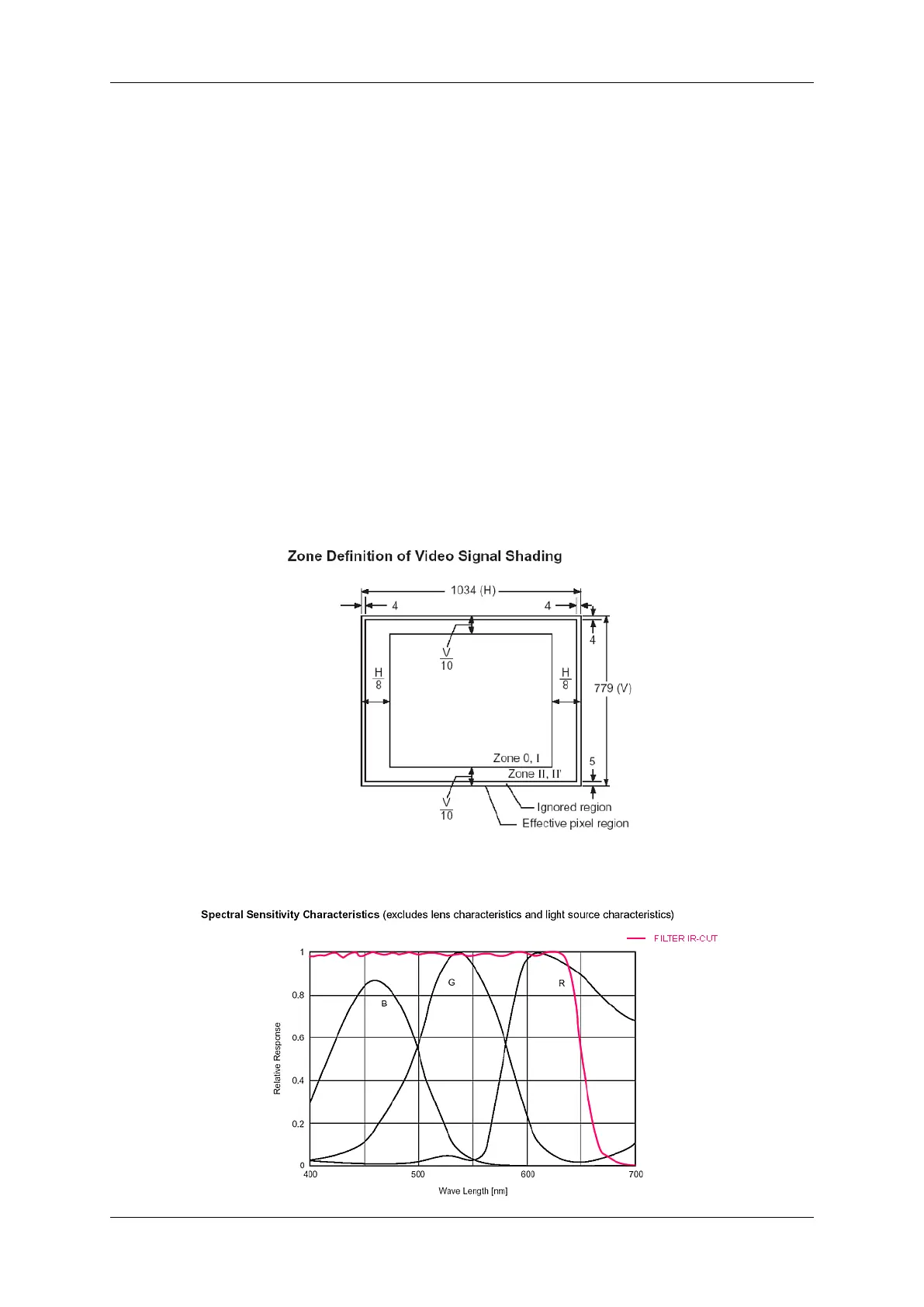

1.19.1.3.5.1 Characteristics
These zone definitions apply to both the color and gray scale version of the sensor.
1.19.1.3.5.2 Color version
