44

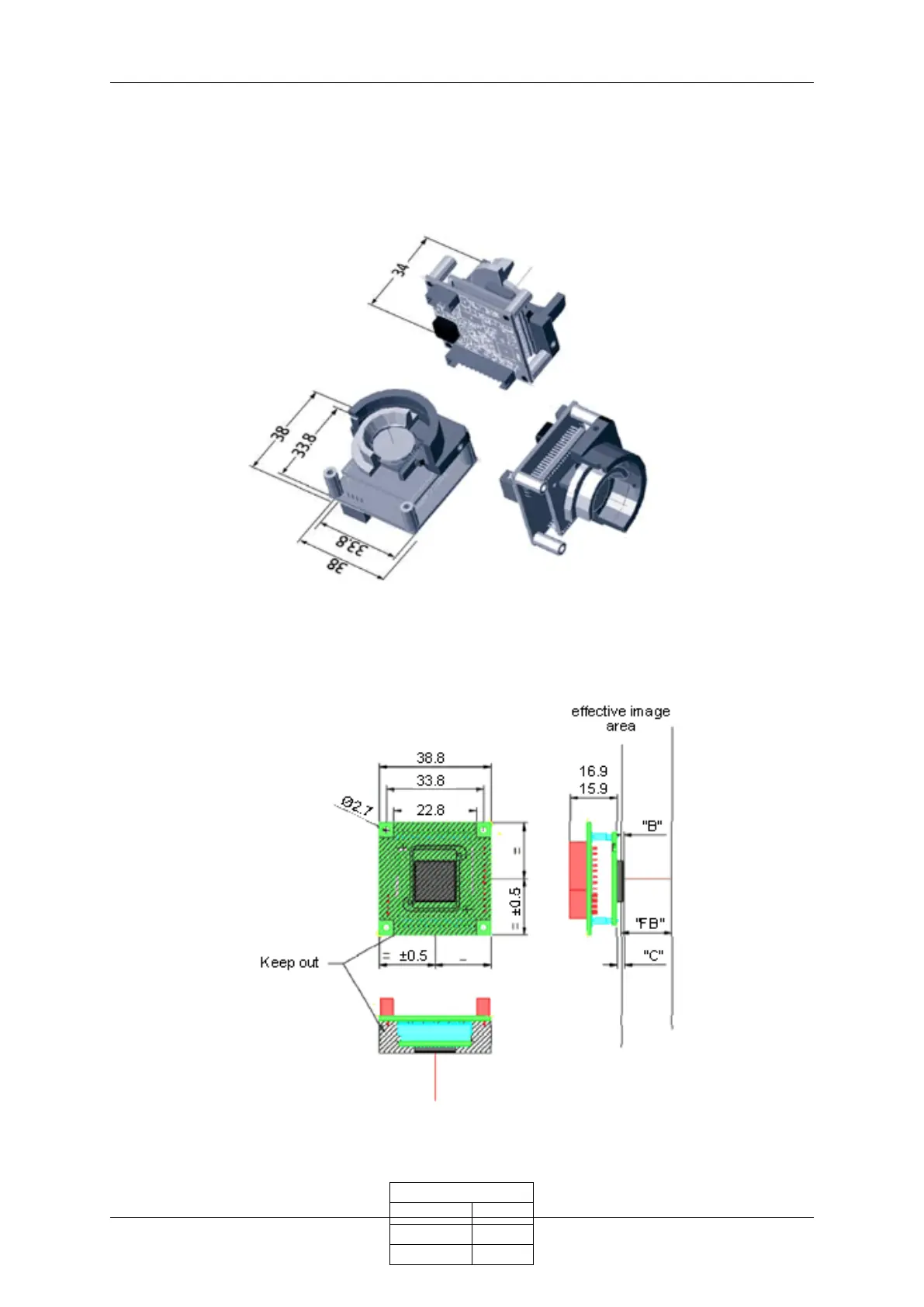

1.9.3 Board-level version (mvBlueFOX-Mxxx)
1.9.3.1 Dimensions and connectors
Figure 10: mvBlueFOX-M12x (CCD) with C-mount
Figure 11: mvBlueFOX-M10x (CMOS)
Lens mount
Type "FB"
C-Mount 17.526
CS-Mount 12.526
MATRIX VISION GmbH
