54
9 OUT0- Opto-isolated
digital output
0 (Negative
voltage)
OUT1 TTL compliant
digital output 1
blue blue
10 OUT0+ Opto-isolated
digital output
0 (Positive
voltage)
OUT0 TTL compliant
digital output 0
violet violet
11 IN0- Opto-isolated
digital input
0 (Negative
voltage)
IN1 TTL compliant
digital input 1
gray gray
12 IN0+ Opto-isolated
digital input
0 (Positive
voltage)
IN0 TTL compliant
digital input 0
pink pink
Note
I2C bus uses 3.3 Volts. Signals have a 2kOhm pull-up resistor. Access to the I2C bus from an application
is possible for mvBlueFOX-MLC devices using an mvBlueFOX driver with version 1.12.44 or newer.
Manufacturer (suitable board-to-wire connector): Molex
Part number: 0510211200 1.25mm Housing
Link: http://www.molex.com/molex/products/datasheet.jsp?part=active/0510211200←-
_CRIMP_HOUSINGS.xml&channel=Products&Lang=en-US
Manufacturer (multi-pin connector for board-to-board connection): e.g. Garry
Link: http://www.mpe-connector.de/index.php?lang=de&menu=16&mating=1841&id←-
_product=6591 (recommended variant: 659-1-012-O-F-RS0-xxxx; xxxx = length of the pins)
See also
Suitable assembled cable accessories for mvBlueFOX-MLC: What's inside and accessories (p. 18)
High-Speed USB design guidelines (p. 10)
More information about the usage of retrofittable ferrite (p. 13)
1.9.4.2.3.1 Electrical characteristic Digital inputs TTL

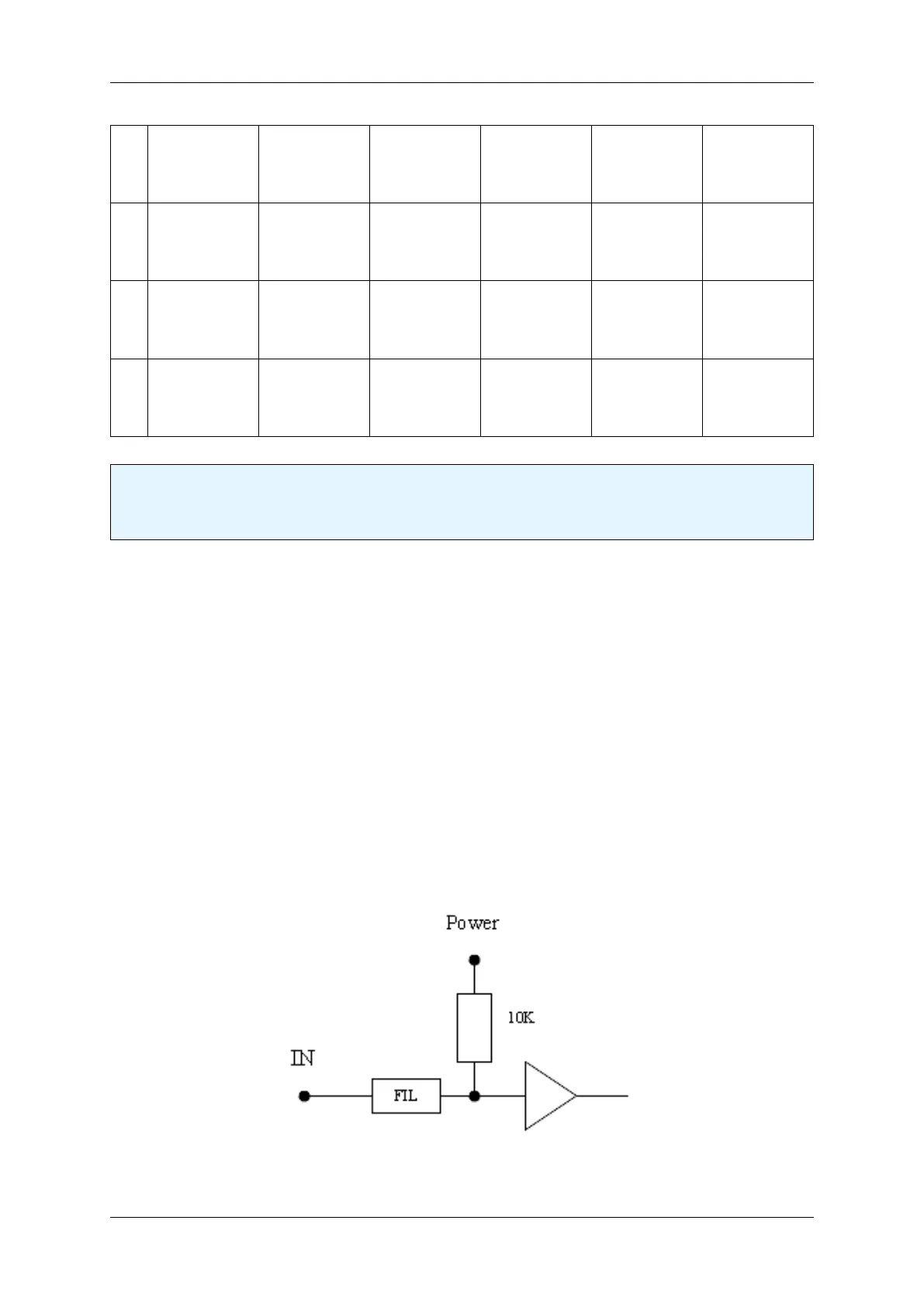

Figure 23: TTL digital inputs block diagram
MATRIX VISION GmbH
