BANDELIN SONOPLUS mini20 - HF Connection for the Ultrasonic Converter; Start-Up

MEDISNAP
socket
MEDISNAP plug
Guide groove
Guide lug
Handle with arrow
marking
13 / 3851406c GB/2019-07
1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com
 During delivery a probe is already fi rmly screwed to the corresponding ultrasonic transducer.
Other probes are mountable. To do so, see instructions in chapter 4.3.
 Screw together the supplied probe with the ultrasonic transducer, see chapter 4.3.1.
 Connect the ultrasonic transducer to the HF generator see the following chapter.
 Verify that the power switch is in the “0” position.
 Connect the generator to a suitable type to a grounded socket.
2.2.1 HF connection for the ultrasonic converter

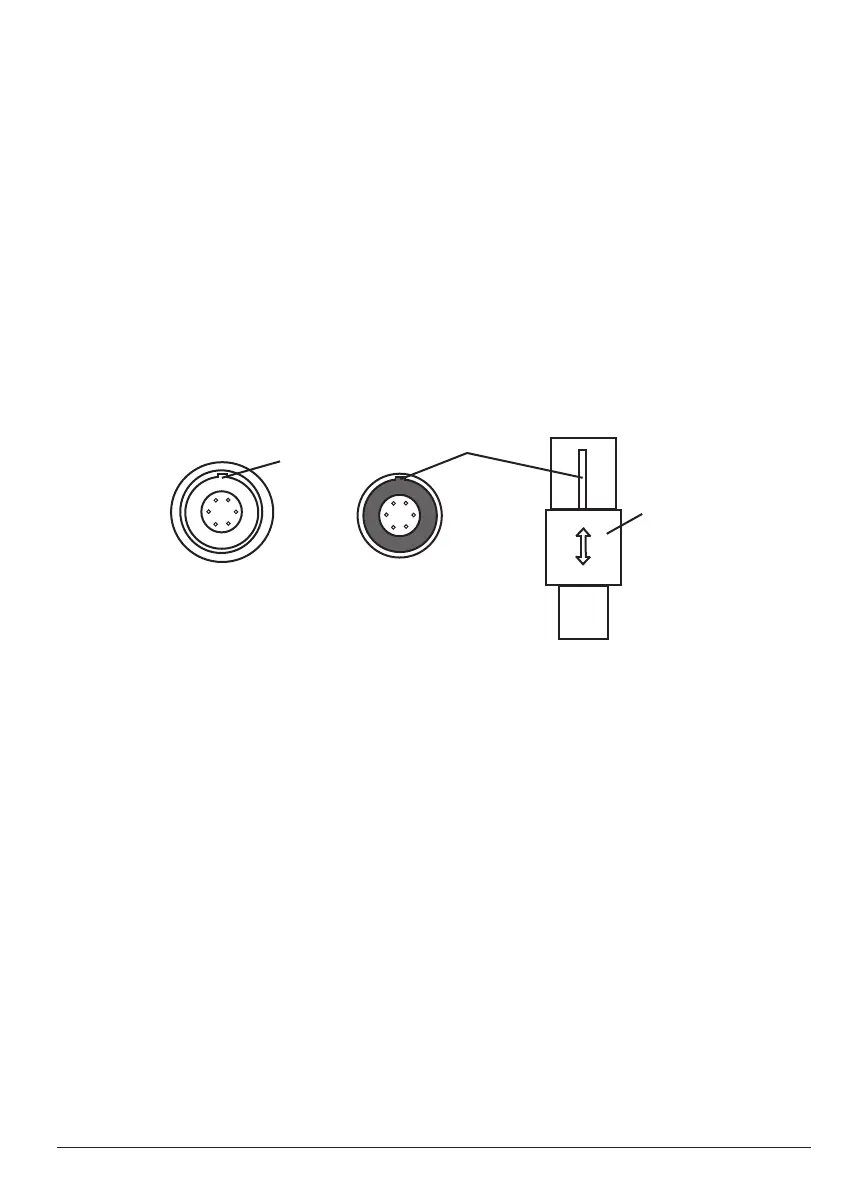

The ultrasonic converter is connected to the HF generator by means of a push-pull round plug
(MEDISNAP plug with lock). For connection hold the plug on the handle and position it so that
guide lug and arrow marking point upwards. The plug can only be closed if the guide groove of the
socket and the guide lug of the plug are positioned as shown in the illustration. Push the plug into
the socket until it latches. To disconnect, hold the plug only at the handle, pull it back and remove
the plug.
2.3 Start-up
 Check the fi rm positioning of the probe and, if needed, clean thoroughly before fi rst use.
 Connect the HF generator to the mains (grounded socket) and switch on.
 Set the probe type (see chapter 3.1.1)
 Conduct a function test pursuant to chapter 6.2.1.
