Work steps for mounting (see illustration)
Clean the coupling surface at the ultrasonic converter and check whether it is free of damage.
Place the ultrasonic converter on a level surface, e.g. tabletop.
Push the spanner with width 10 at the coupling piece into the guide grooves.
Turn the ultrasonic converter and spanner to the right so that the other end of the lies on the
surface and the coupling piece can no longer be turned to the right.
Screw in the probe hand-tight.

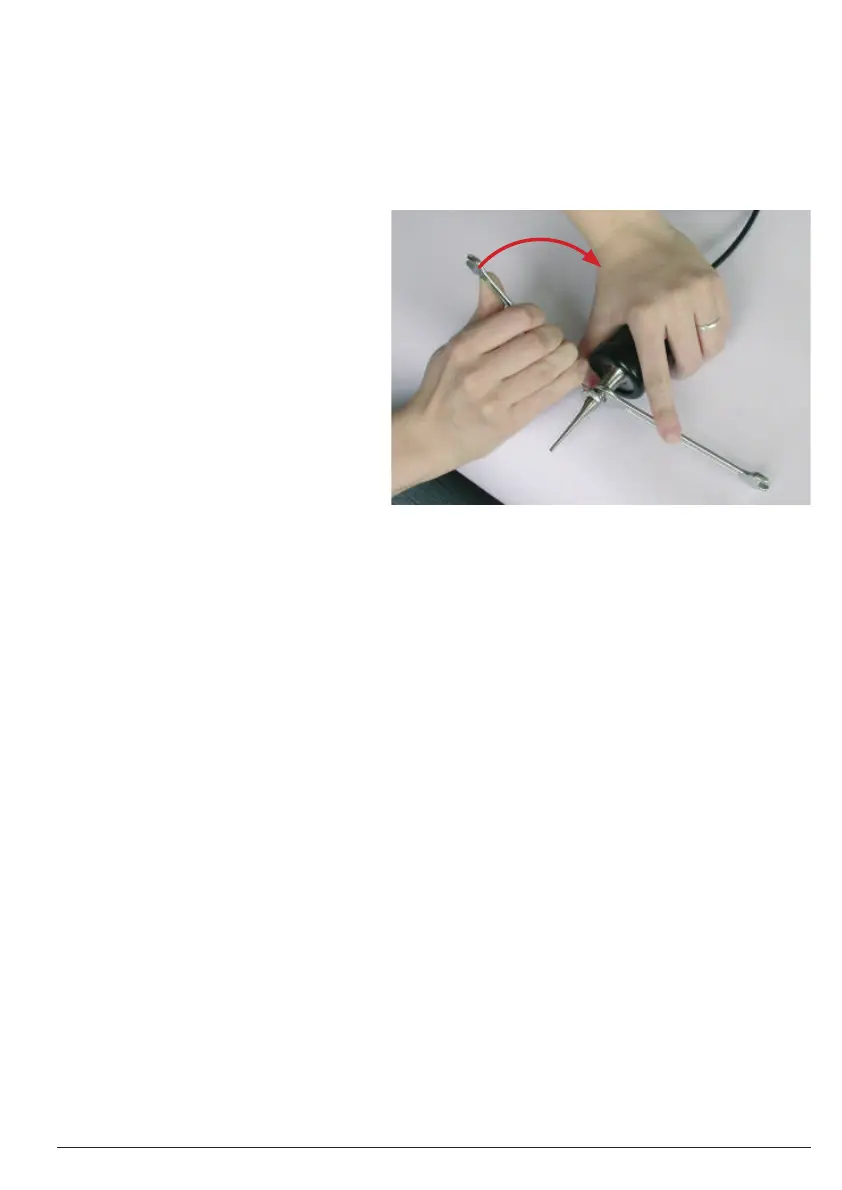

Now push the spanner with width
8 into the guide grooves of the
probe.
Then fi rmly screw on the probe. In
doing so, fi rmly hold the spanner
at the coupling piece.
If the coupling surface is damaged at the coupling piece or probe or if the screw coupling
between the coupling piece and the probe is not fi rm enough, a malfunction can occur (Error
011 or 012).
