B&G Network DEPTH - EXAMPLE SYSTEMS USING NETWORK DEPTH

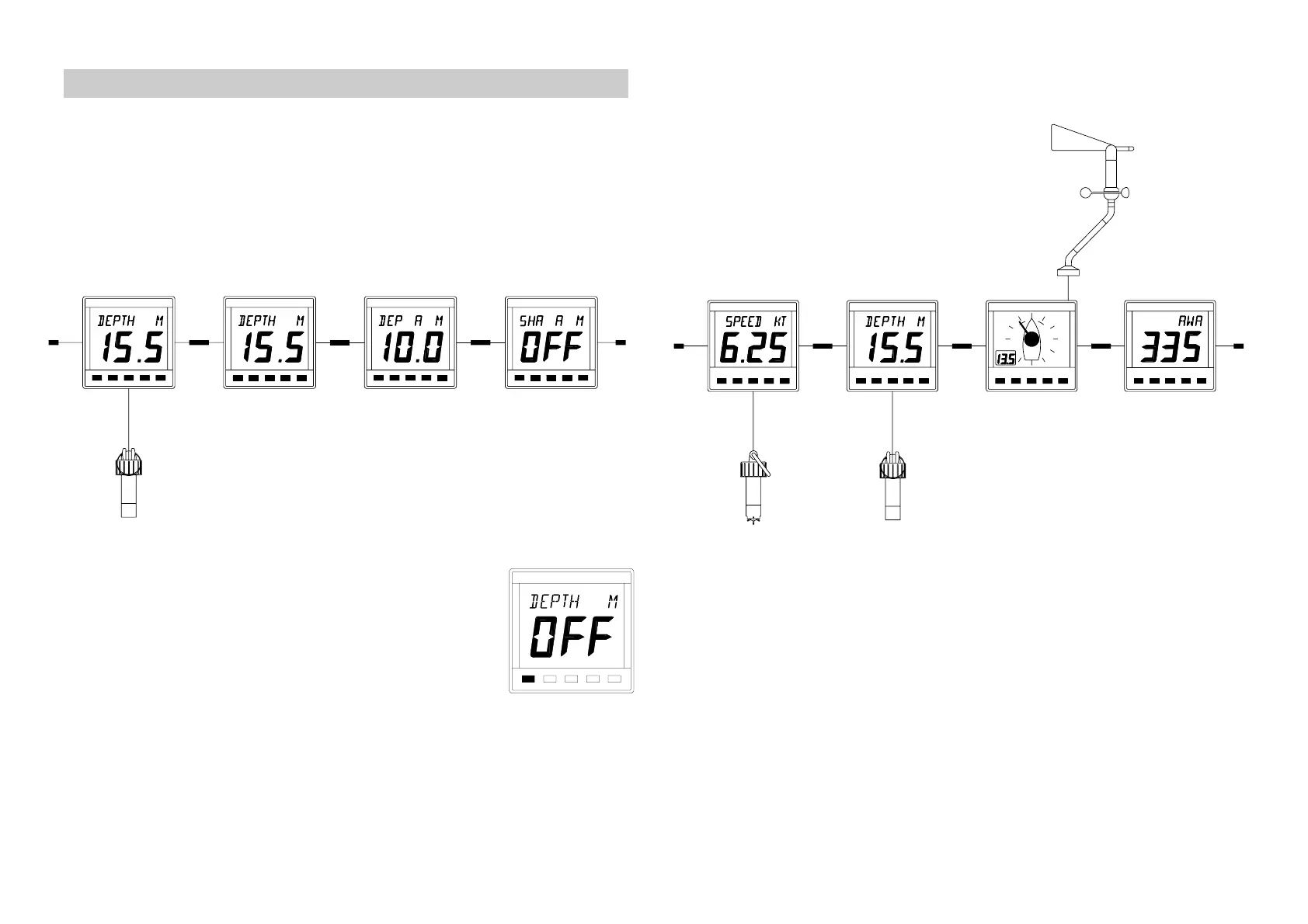

EXAMPLE SYSTEMS USING NETWORK DEPTH
Only one Network DEPTH unit should have a depth
sensor connected to it and set to transducer mode. Up to
three more Network DEPTH units can be connected on to
the system network, these must be set to repeater mode.
See SELECTING THE DISPLAY MODE.
When in repeater mode, if the data is not
being received from the system network, the
display will show OFF when a key is
pressed.
rEP Repeater mode, the unit operates as a depth
repeater using data from the system network.
