Bandit 2290 - Page 112

Bandit
108
Copyright 8/19

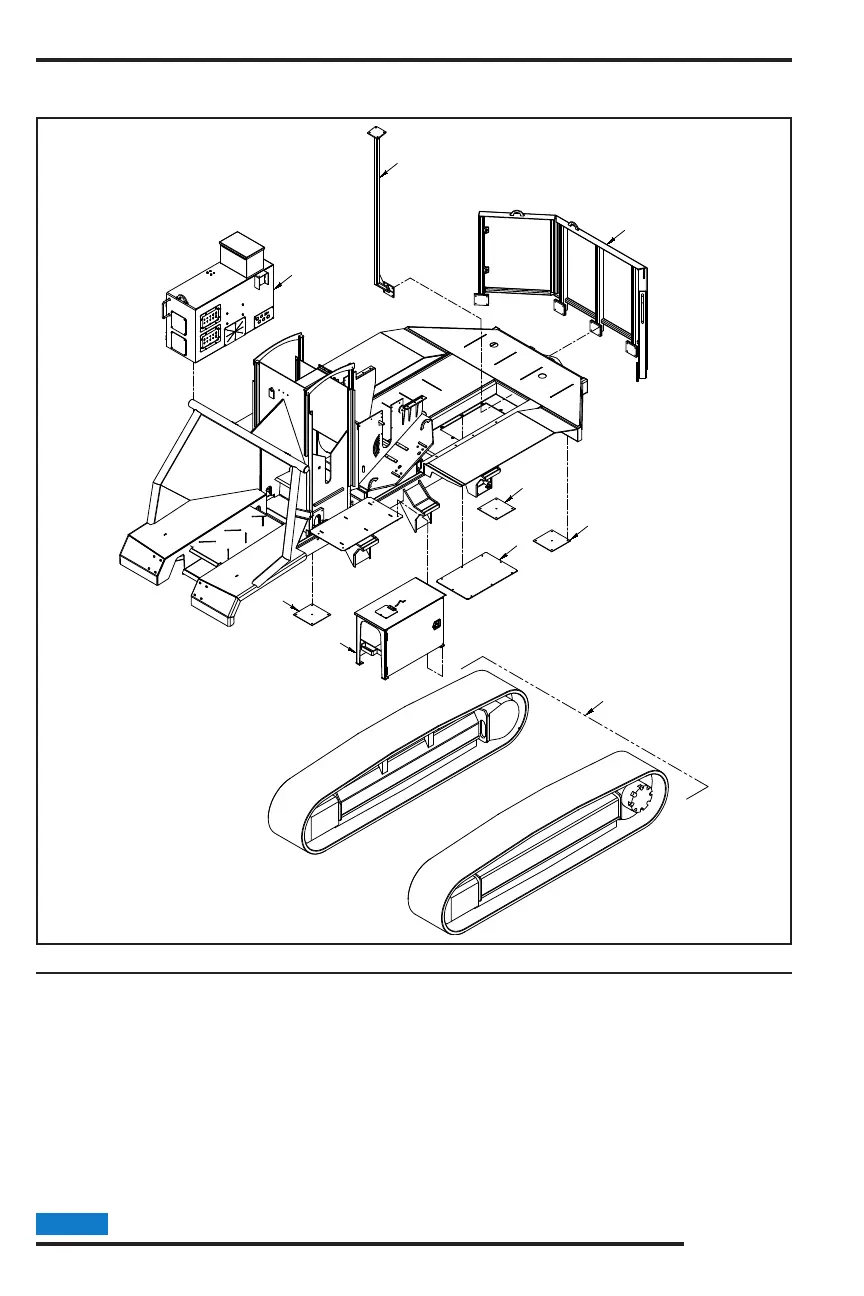

MODEL 2290 FRAME & ACCESSORY COMPONENTS
TRACK FRAME
LOCATION PART NUMBER DESCRIPTION
Parts may not be exactly as shown.NOTICE
** Components vary with engine options, refer to check sheet or machine S/N.
2
1
2
2
3
5
6
4
7
1. 249-2000-45 Track Brush Guard Assembly
2. 914-1011-83 Track Skid Plate Door
3. 249-3004-59 Clutch Tank Access Door
4. 930-2003-46 Compressor Cover See Page 108
5. 249-2002-42 Discharge Support
6. See Page 107 Hydraulic/Electrical Cabinet
7. ** 315 Cat Tracks
