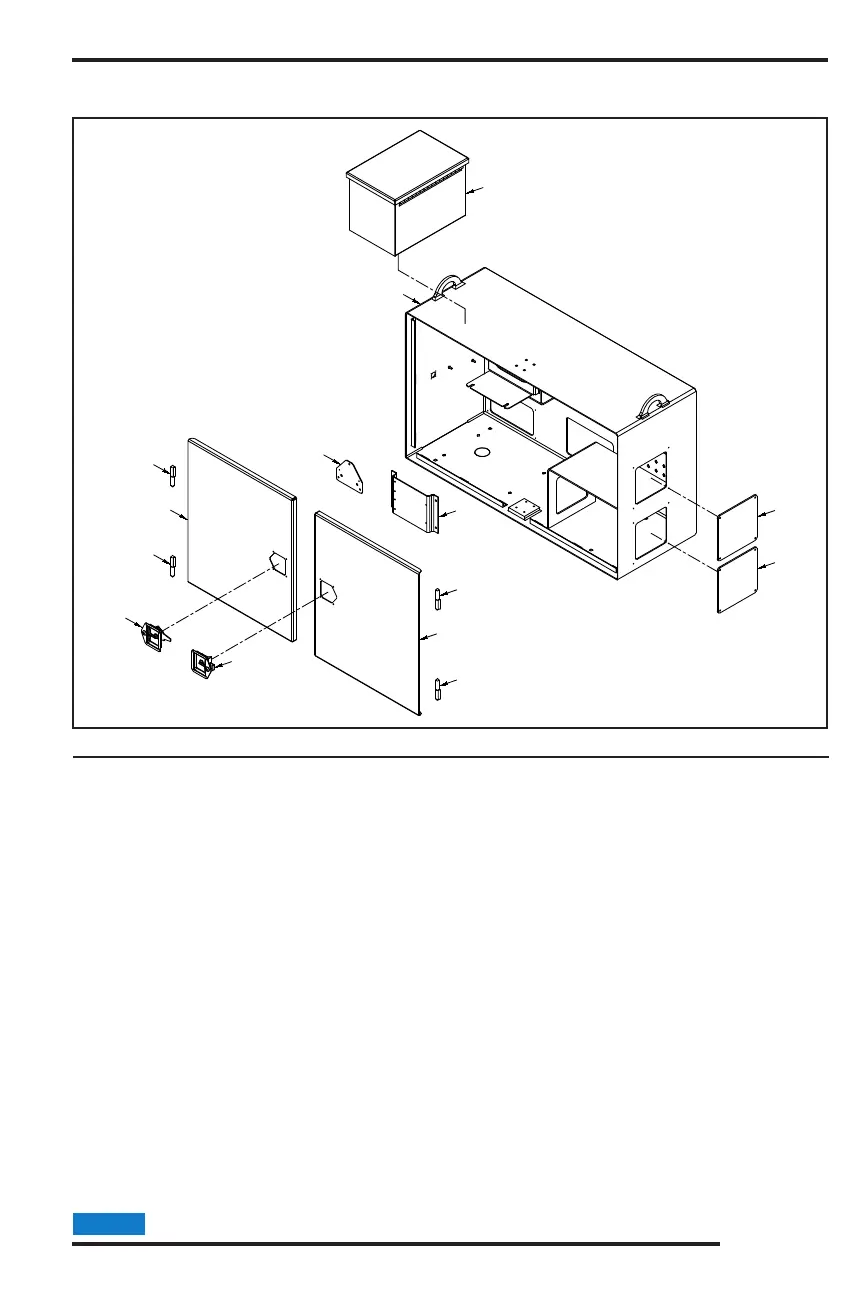

MODEL 2290 FRAME & ACCESSORY COMPONENTS
TRACK HYDRAULIC / ELECTRICAL CABINET
LOCATION PART NUMBER DESCRIPTION
Parts may not be exactly as shown.NOTICE
1
4
4
5
4
4
5
2
3
7
7
6
6
8
1. 249-2001-52 Hydraulic/Electric Cabinet Assembly
2. 980-3008-66 Radio Receiver Mount
3. 999-3000-49 Expansion Module Mounting Plate
4. 900-4913-20 Medium Hinge w/Grease Fitting
5. 249-3006-37 Hydraulic/Electric Cabinet Door
6. a. 900-4908-19 T Handle Latch
b. 900-9902-24 Key for T Handle Latch (Not Shown)
7. 249-3006-42 Hydraulic/Electric Cabinet Valve Window Plate
8. 900-7900-78 Tool Box
