MODELS 2550/2550T
ENGINE OPERATING SPEEDS
Refer to the Completion/Check Sheet, that is shipped with the machine for the correct engine
rpm. If needed, contact your local dealer or Bandit Industries.
NOTICE
CONTROLS & COMPONENTS
CONTROLS
Some Current Engine Types Maximum RPM
Kubota WG1605G - 49.6 Hp 2700
Kubota D1803-CR - 49.6 Hp 2700
Kohler KFI1190408 - 49 Hp 2600
Kubota V1505T - 44.2 Hp 3000
1
2
3
4
5
6
7
8
9

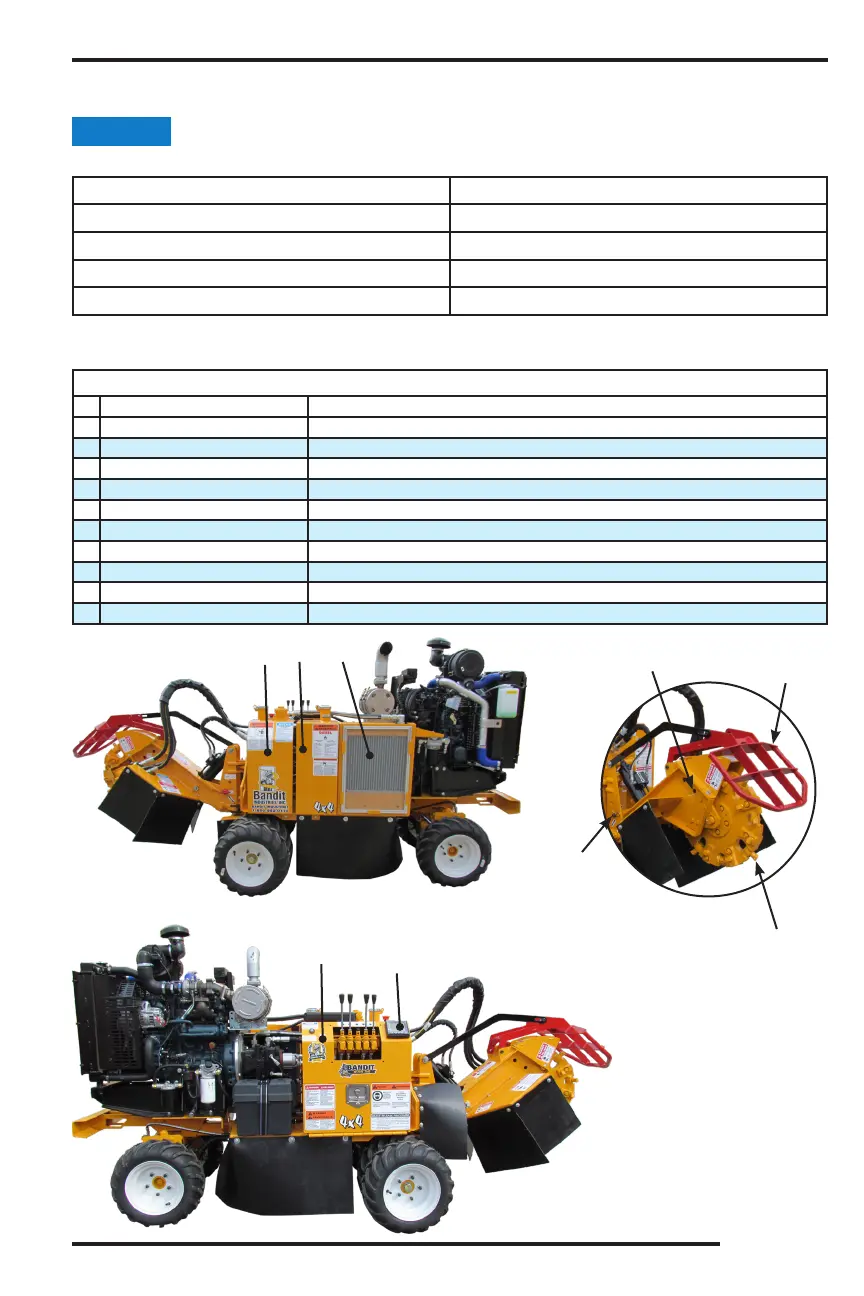

Basic Location of Controls and Components
# Description Location
1 Hydraulic Tank Left Side, Tank closest to the front
2 Fuel Tank Left Side, Tank closest to the oil cooler fan
3 Oil Cooler Fan Left Side, Behind Fuel Tank, near engine
4 Control Box Right Side, Closest to the front
5 Power Display On Control Box, Toward the front of the machine
6 Cutter Wheel Lock Pin Stored On Cutter Wheel Pivot Arm
7 Cutter Wheel Lock Pin Hole Near Cutter Wheel
8 Cutter Wheel Teeth On Cutter Wheel
9 Cutter Wheel Bar Above Cutter Wheel
10 DEF Tank (Not Shown) On Engine
