Bandit 2550 - Tank Components

Bandit
78
Copyright 4/21
MODELS 2550/2550T
Tank assemblies vary with options. Specify all options when ordering.NOTICE
Components vary with fuel type. Specify gas or diesel when ordering fuel tank components.NOTICE
Parts may not be exactly as shown.NOTICE

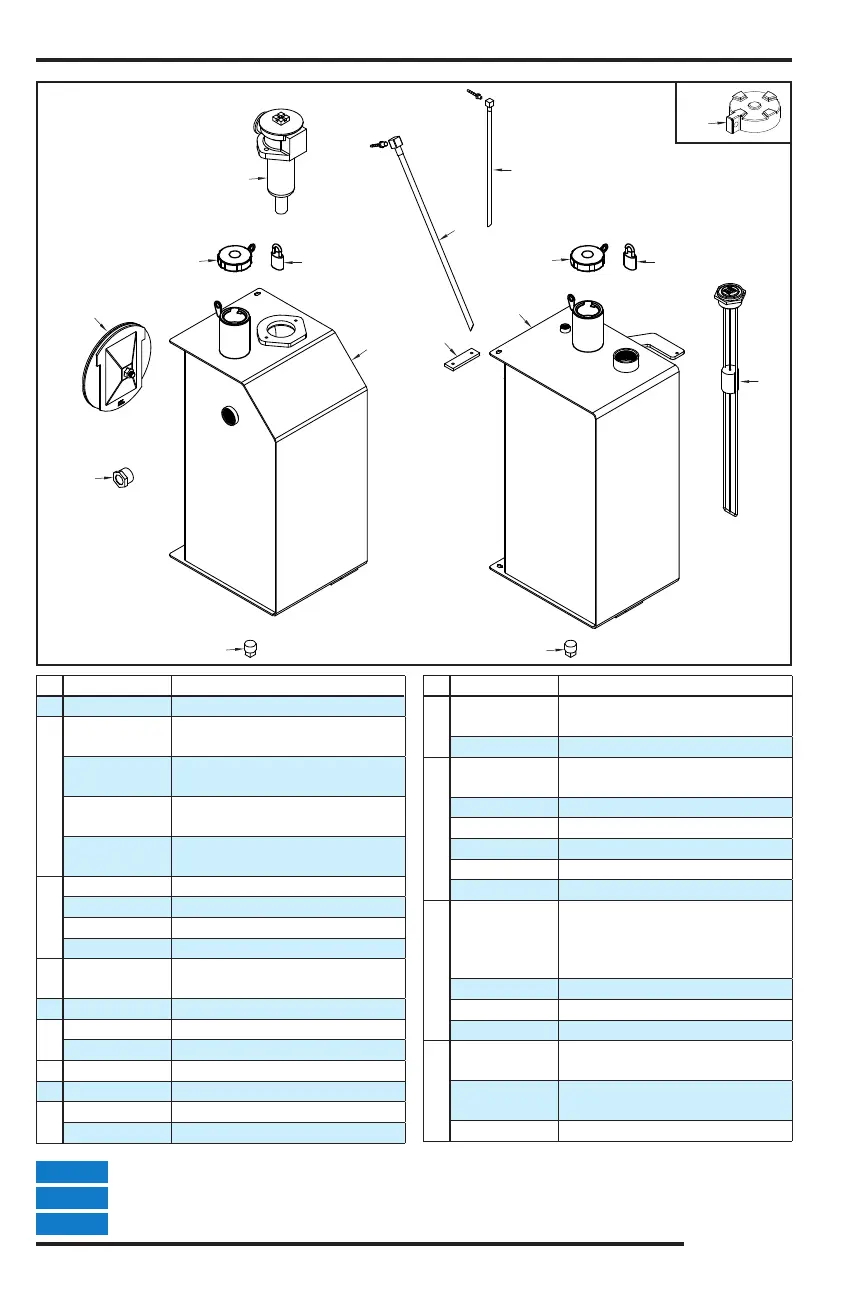

TANK COMPONENTS
# Part Number Description
1 900-3922-60 Magnetic Drain Plug
2
203-1000-55
Hydraulic Tank Ass’y - Kohler
49Hp & Kubota 49Hp
203-2001-21
Hyd.Tank Weldment - Kohler
49Hp & Kubota 49Hp
203-1000-40
Hydraulic Tank Ass’y - Briggs 35Hp,
Kohler 38Hp, Kubota 44.2Hp
203-2001-06
Hydraulic Tank Weldment - Briggs
35Hp, Kohler 38Hp, Kubota 44.2Hp
3
203-1000-41 Fuel Tank Ass’y - 2550
203-2001-07 Fuel Tank Weldment - 2550
203-1000-55 Fuel Tank Ass’y - 2550T
203-2001-22 Fuel Tank Weldment - 2550T
4 900-3900-44
Glass Sight Gauge for
Hydraulic Tank
5 900-3981-42 Tank Cover
6
900-3951-31 In-Tank Filter Assembly
900-3951-32 In-Tank Filter Only
7 203-3003-72 Top Tank Strap
8 900-3988-07 Locking Fill Cap
9
900-4912-40 Padlock with Short Shackle
900-4719-21 Key for Padlock
# Part Number Description
10
900-2930-72
Rochester Sight Gauge for
Fuel Tank - 22”
900-2903-55 Face for Sight Gauge Only
11
900-3909-00
Return Drop Pipe Ass’y w/o Hose Barb
(3/8” NPTF Male x 1/4” NPTF Female)
900-3925-48 1/4” NPTF to 3/8” Hose Barb
900-3909-01 1/4” NPTF to 5/16” Hose Barb
900-3909-02 1/4” NPTF to 1/4” Hose Barb
900-3943-22 3/16” NPTF to 3/16” Hose Barb
900-3943-21 1/4” NPTF to 3/16” NPTF Bushing
12
900-3926-84
Suction Drop Pipe Ass’y w/o
Hose Barb
(1/2” NPTF to 3/8” NPTF
Female)
900-3926-83 3/8” NPTF to 1/2” Hose Barb
900-3926-82 3/8” NPTF to 3/8” Hose Barb
900-3931-53 3/8” NPTF to 3/16” Hose Barb
13
900-3941-30
Hydraulic & Fuel (Gasoline)
Locking Fill Cap - Black
900-3941-31
Fuel (Diesel) Locking Fill Cap
- Green
900-3935-06 Keeper for Locking Fill Cap
6
13
8
4
1
1
8
9
9
11
10
2
7
3
5
12
