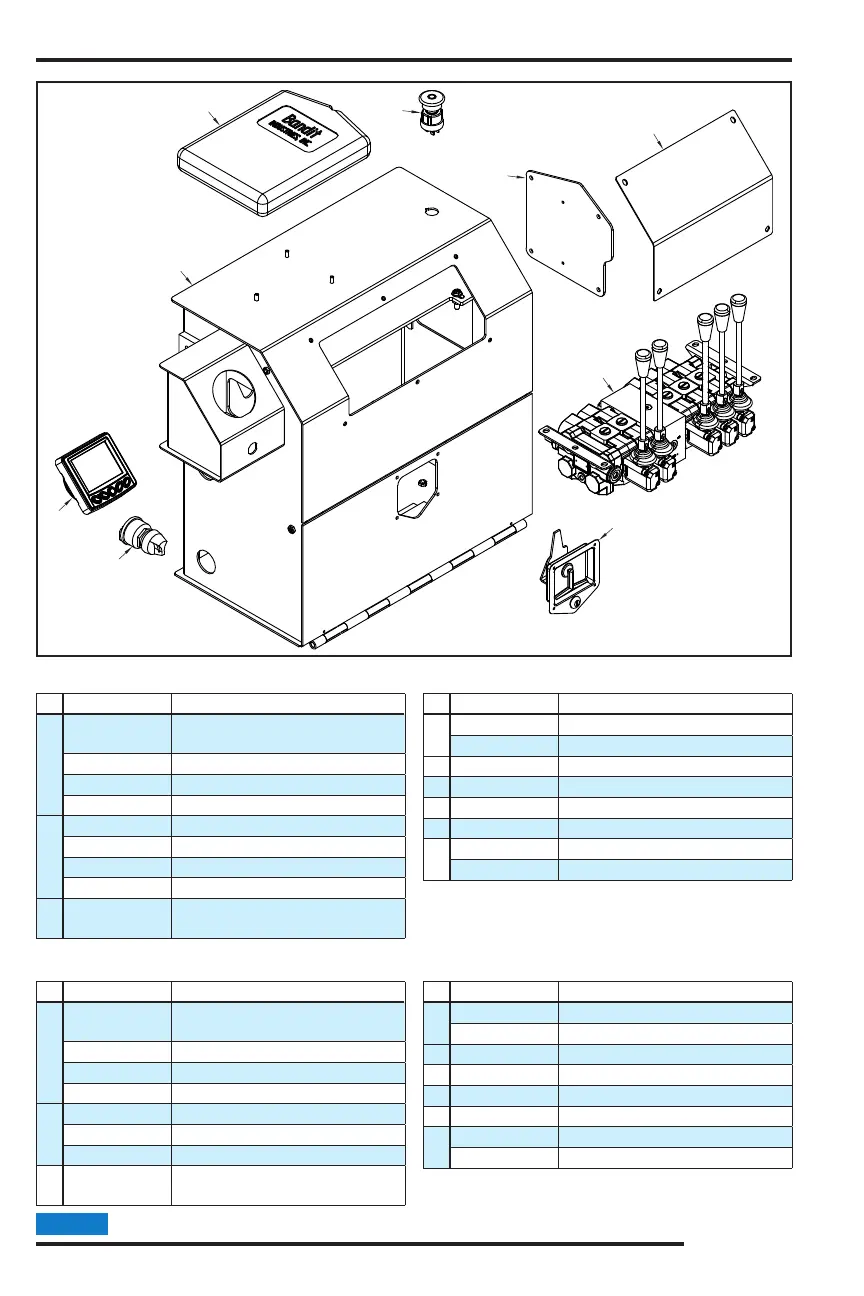

MODELS 2550/2550T CONTROL BOX COMPONENTS
Parts may not be exactly as shown.NOTICE
# Part Number Description
1
203-1000-58
Control Box - Manual No Swing
Out
203-1000-59 Control Box - Manual Swing Out
203-1000-60 Control Box - Remote
203-2001-31 Control Box Weldment
2
900-3969-56 4 Section Valve Bank
900-3969-57 5 Section Valve Bank
900-3976-22 Tall Valve Handle
900-3977-08 Short Valve Handle
3 203-3004-69
Valve Cover - Swing Out /
Remote Machines Only
# Part Number Description
1
203-1000-56
Control Box - Manual No Swing
Out
203-1000-61 Control Box - Manual Swing Out
203-1000-62 Control Box - Remote
203-2001-26 Control Box Weldment
2
900-3952-74 4 Section Valve Bank
900-3952-75 5 Section Valve Bank
900-3952-76 Valve Handle
3 203-3004-76
Valve Cover - Swing Out /
Remote Machines Only
# Part Number Description
4
203-3004-68 Swing Out Hole Cover
203-3002-26 Swing Out Hose Guard
5 900-2931-47 Emergency Stop
6 900-9910-28 Manual Holder
7 900-2927-59 PV380 Display
8 900-2927-91 Ignition Switch
9
900-4908-19 “T” Handle Latch
900-6933-31 Key for “T” Handle Latch
# Part Number Description
4
203-3004-73 Swing Out Hole Cover
203-3002-26 Swing Out Hose Guard
5 900-2931-47 Emergency Stop
6 900-9910-28 Manual Holder
7 900-2927-59 PV380 Display
8 900-2927-91 Ignition Switch
9
900-4908-19 “T” Handle Latch
900-6933-31 Key for “T” Handle Latch
MODEL 2550 PART NUMBERS
MODEL 2550T PART NUMBERS
1
6
5
4
3
2
9
8
7
