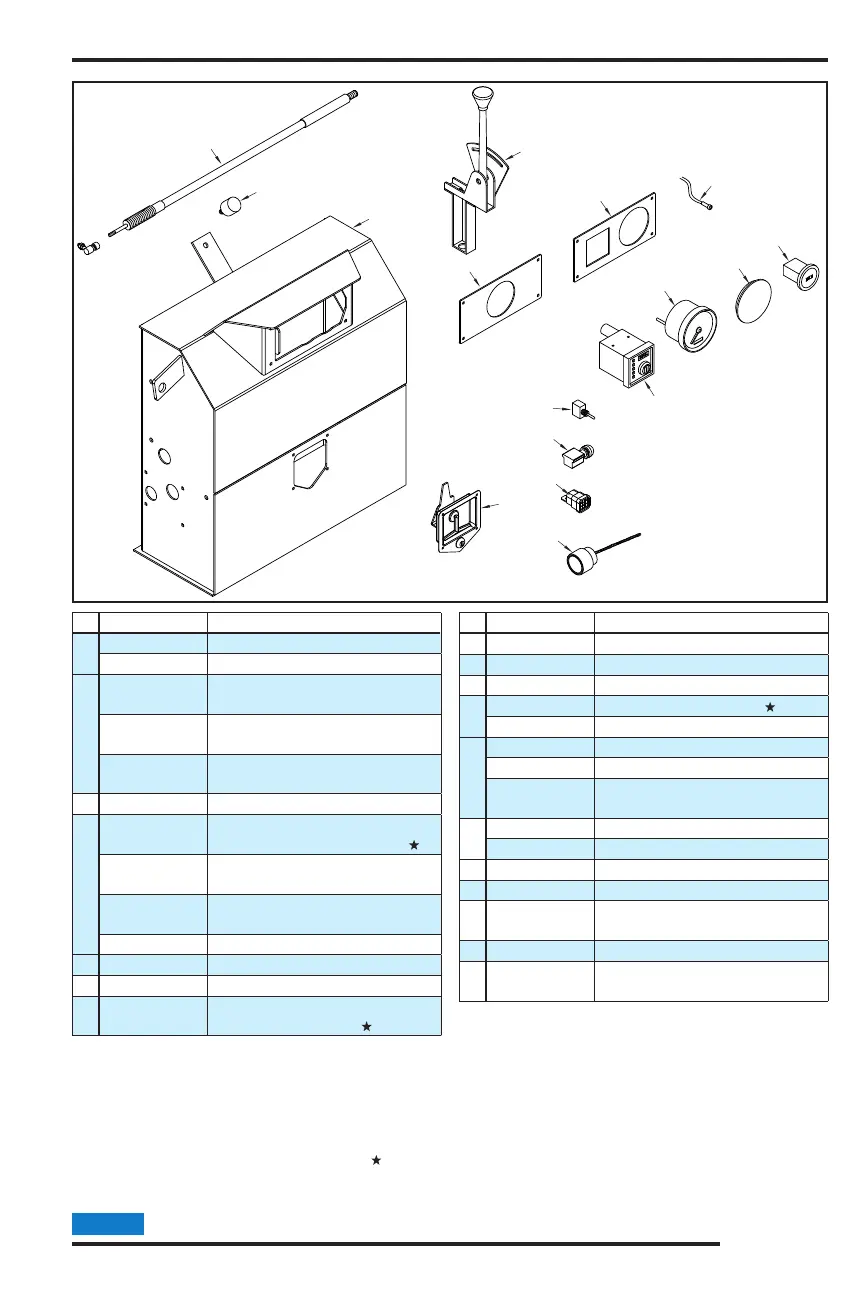

MODELS 2550/2550T CONTROL BOX COMPONENTS
Parts may not be exactly as shown.NOTICE
# Part Number Description
1
900-4908-19 “T” Handle Latch
900-6933-31 Key for “T” Handle Latch
2
203-2000-41
Control Box Assembly for Swing
Out Controls*
203-2000-50
Control Box Assembly for
Remote Controls (2550)*
203-2000-81
Control Box Assembly for
Remote Controls (2550T)*
3 900-9905-35 Rubber Bumper Stop
4
900-4916-52
Cutter Wheel Engage Handle Cable
with Swing Out Controls - 69”
900-4916-56
Cutter Wheel Engage Handle Cable
with Swing Out Controls - 74 1/2”♦
900-4916-53
Cutter Wheel Engage Handle
Cable with Remote Controls - 45”
900-4913-98 Ball Socket
5 900-4916-27 Cutter Wheel Engage Handle
6 900-2917-10 Remote Link Light - Green
7 203-3002-17
Panel for Tach / Hour Meter &
LOFA Panel
# Part Number Description
8 203-3002-16 Panel for Tach / Hour Meter♦
9 900-2903-76 Hour Meter
10 900-2911-92 Tach / Hour Hole Plug
11
900-2919-33 Tach Hour Meter
904-0002-51 Tach Hour Meter♦
12
998-3704-36 LOFA Panel
14603 Key Only
900-6908-79
Extension Harness for LOFA
Panel
13
900-2910-47 Remote / Tether Toggle Switch
900-2909-81 Rubber Boot for Toggle Switch
14 900-2916-32 Swing Out Switch
15 900-2918-73 Sealed Relay - 12V
16 900-2908-63
Dust Cap & Chain for Tether
Jack - Remote
17 900-2912-53 30 Amp Blade Type Fuse
18
See Page
64
Machine Harness
*Specify Engine Options.
Diesel Engines Only.
♦Gasoline Engines Only.
