Bandit 2550 - Cutter Wheel Components

Bandit
68
Copyright 4/21
MODELS 2550/2550T
Parts may not be exactly as shown.NOTICE
# Part Number Description
1 900-4919-83 14mm x 60mm Hex Head Bolt
2
900-3955-99
Manifold Block for Cutter
Wheel Motor
900-3923-41 Relief Only
3
900-3959-06
Cutter Wheel Motor
(Start 4/14)
900-3951-17 Cutter Wheel Motor (Pre 4/14)
4 900-4920-89 14mm Auto Lock Nut
5
900-1919-18
Taper Lock Coupler
(Start 4/14)
900-1917-63 Taper Lock Coupler (Pre 4/14)
# Part Number Description
6
203-3002-56 Cutter Wheel Hub (Start 4/14)
203-3000-74 Cutter Wheel Hub (Pre 4/14)
7 ** Cutter Wheel Assembly
8 900-4906-74 1/2”-13NC x 2” Hex Head Bolt
9
203-2000-69
Stub Shaft Assembly
(Start 4/14)
203-3000-78
Coupler Cover Plate
(Pre 4/14)
10 900-4915-79
1/2”-13NC x 1” Flat Head Cap
Screw

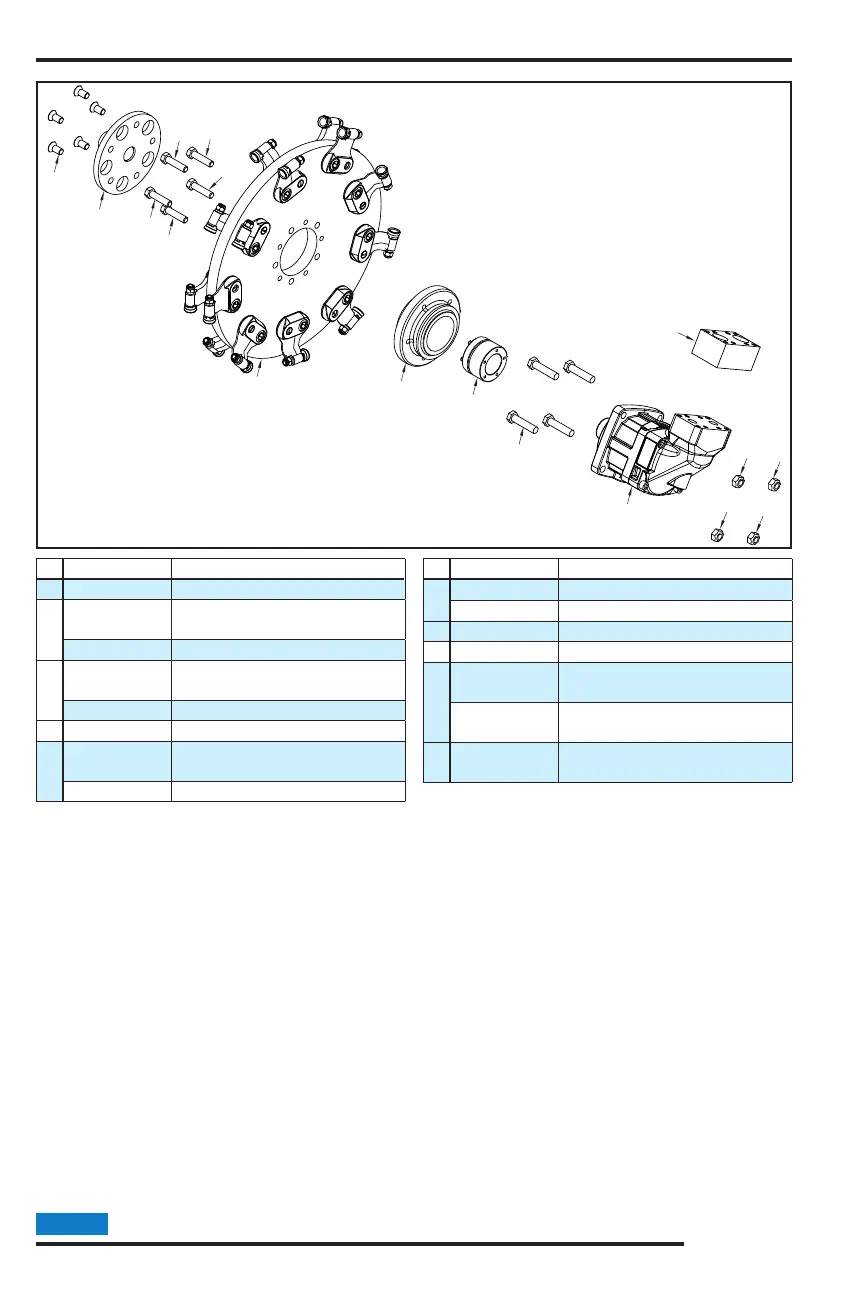

CUTTER WHEEL COMPONENTS
10
9
8
7
8
8
8
8
6
5
1
3
2
4
4
4
4
