MODEL 75 MAINTENANCE
NOTICE
Clearances that are too small will result in excessive drag and overheating while
too much clearance can render the brake nonfunctional.
AXLE SIZE SIZE TYPE DIAMETRAL CLEARANCE CLICKS TO BACK OFF
6,000 LBS. 12 1/2” x 2” Elec. or Hyd. .040” (1 mm) 14 to 24
7,000 LBS. 12 1/2” x 2.5” Elec. or Hyd. .040” (1 mm) 7 to 13
TIRE MAINTENANCE
TIRE WEAR DIAGNOSTIC CHART
Misalignment - from rough roads, pot holes,
excessive speeds and hitting curbs.
The wear pattern and tread life of tires involves many
variables that the user has control of, but does not
fall under faulty manufacture or design.
The following is a list of some causes supplied by
tire suppliers and axle manufacturers:
BASIC WHEEL TORQUE REQUIREMENTS (per mfg.)
Keep lug nuts properly tightened, check new unit before operation, after the rst 10, 25, and again
at 50 miles. Check the torque weekly.
DESCRIPTION BOLT SIZE TORQUE (FT.-LBS.) TORQUE (Nm)
5 & 6 Lug Hubs 1/2” - 20 Studs 90 - 120 122 - 163
8 Lug Hubs 1/2” - 20 Studs 90 - 120 122 - 163
8 Lug Hubs 9/16” - 18 Studs 140 - 170 149 - 163
8 Lug Hubs (Cone Nut) 5/8” - 18 Studs 190 - 210 258 - 285
8 Lug Hubs (Flange Nut) 5/8” - 18 Studs 275 - 325 373 - 441
8 Lug Hubs (Flange Nut) 22 mm x 1.5 Studs 450 - 500 610 - 678
10 Lug Hubs 22 mm x 1.5 Studs 450 - 500 610 - 678
10 Lug Hubs 3/4” - 16 Studs 450 - 500 610 - 678
10 Lug Hubs 1 1/8” - 16 Studs 450 - 500 610 - 678
(Consult axle manufacturers manual shipped with each machine for speci c axle‑stud‑wheel combination
lug nut torques.)
Wear
Pattern
Edge Wear Side Wear Cup Wear
Center
Wear
Flat
Spots
Cause
Under
In ation
Not
hauling
trailer
level
Bent
axles
Wide tires
Wheel
bearings
Out of balance
wheel bearings
Over
in ation
Wheel
lockup
and tire
lock up
Action
Adjust
pressure to
particular
load per
tire catalog
Must be
hauled
parallel
to the
ground
Replace
as
needed
Replace as
needed.
Characteristic
of wide
otation tires
Adjust or
replace
Check bearing
adjustment
and balance
tires. Adjust or
replace.
Adjust
pressure to
particular
load per
tire catalog
Avoid
sudden
adjust
brakes
•
Tire Width ‑ the wider the tire for otation, the more
uneven the tire wear.
•
Tire Air Pressure - too much or too little, for the
load.
•
Vehicle Hitch Height - if trailer is not level with
ground, axle camber is misaligned.
•
Maintenance - wheel bearing lubrication and
adjustment. Follow axle manufacturer’s instructions.
•
Brakes - uneven or misadjusted brakes cause
irregular brake activation.

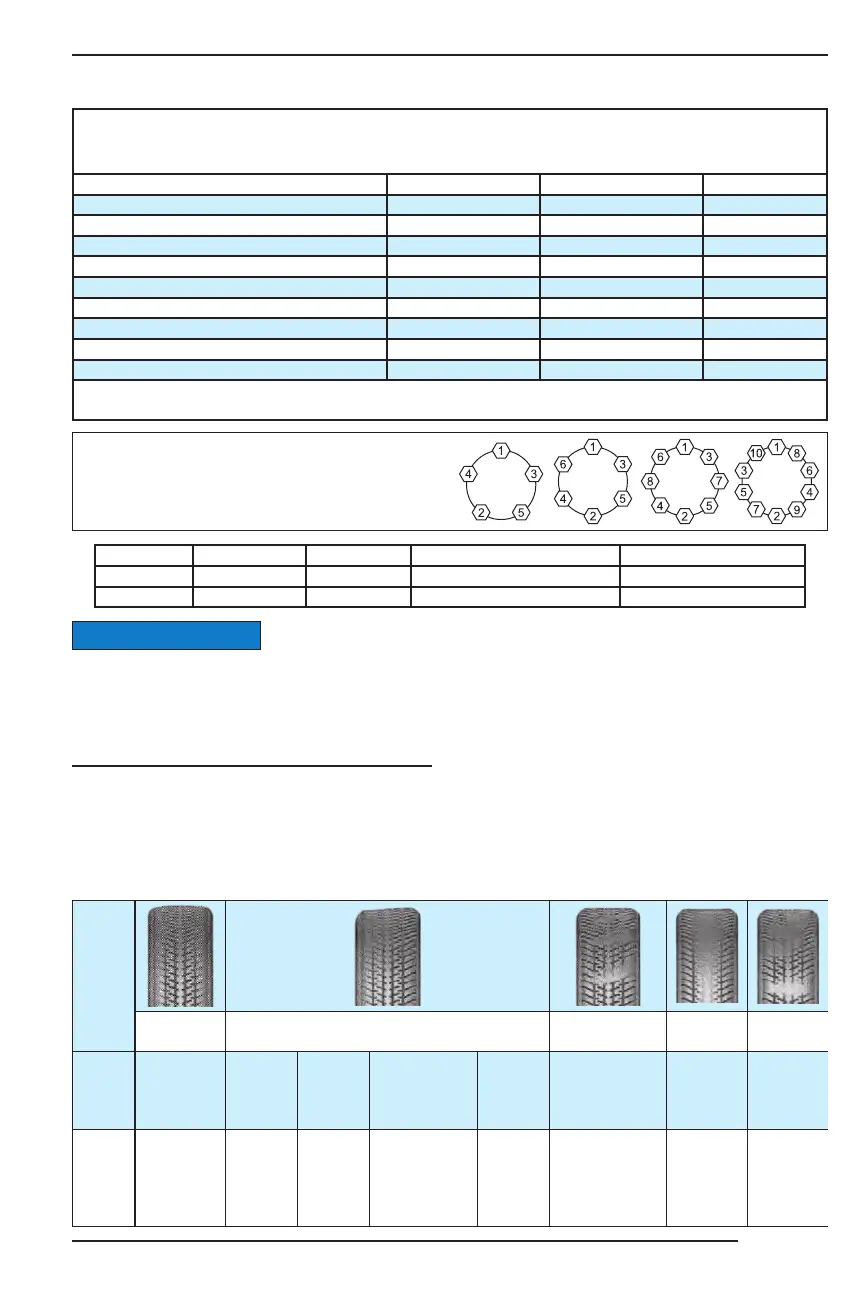

Tighten the 5, 6, 8, and 10 lug hubs in sequence
according to the following diagrams.
