Bandit 75 - Electrical Wiring Diagrams

561/21
MODEL 75 ELECTRICAL

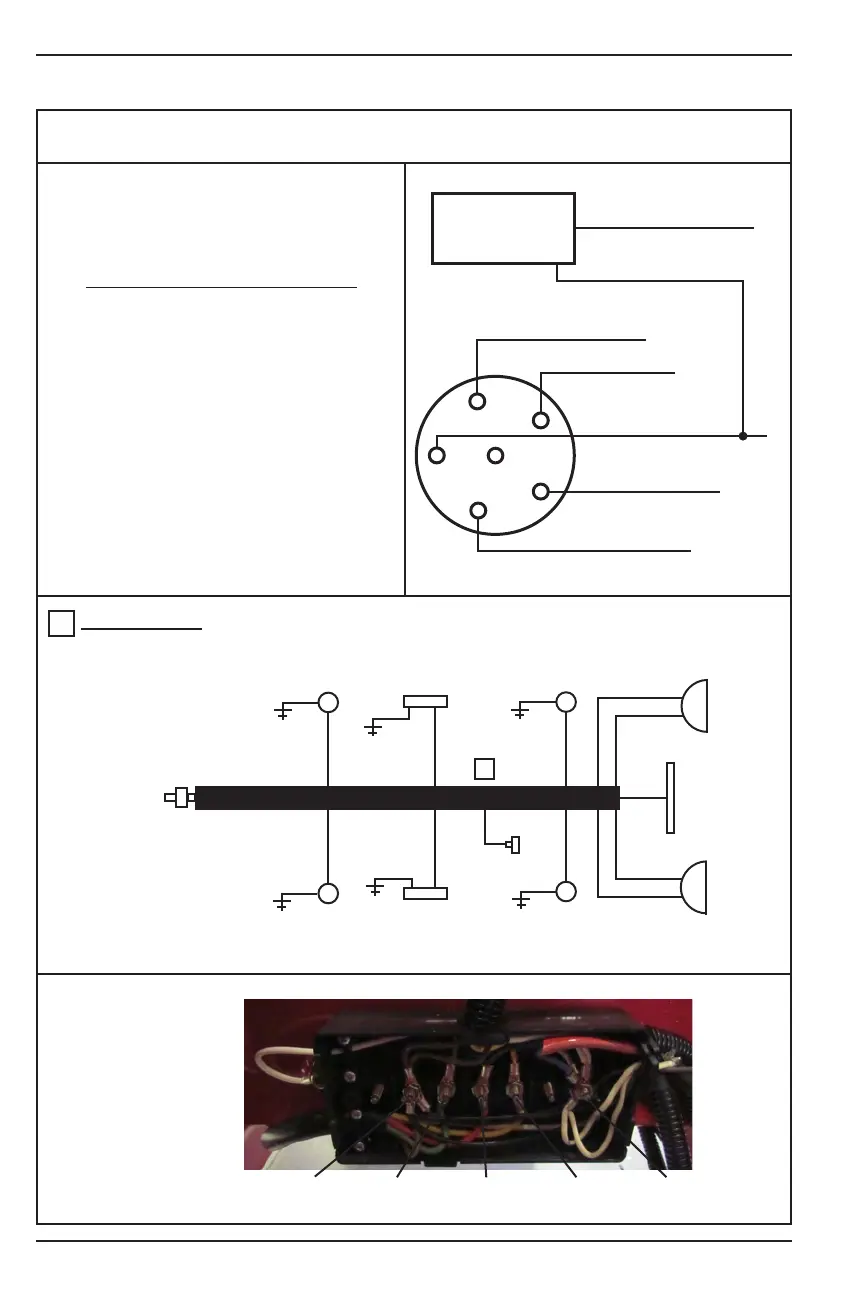

TYPICAL ELECTRICAL WIRING DIAGRAMS
RIGHT TURN-GREEN WIRE
LEFT TURN-YELLOW WIRE
GROUND-WHITE WIRE
RUNNING LIGHTS-BROWN WIRE
RT
LT
S A
TM
GD
BREAKAWAY
SWITCH
POWER TO BREAKAWAY -
BLACK WIRE
ELECTRIC BRAKES-RED WIRE
6 Wire Main Cable Color Code
Red R (Brakes & Breakaway Switch)
White W (Ground)
Green G (Right Turn)
Yellow Y (Left Turn)
Brown BR (Running Lights)
Black BL (Power to Breakaway Switch)
WIRING FOR STANDARD 6 PRONG PLUG
AND 6 WIRE MAIN CABLE
JUNCTION BOX
WIRES SPLICED
TOGETHER WHITE
WIRES GROUNDED
J
JUNCTION BOX
Running Lights
(BR)
Right Turn
(G)
Left Turn
(Y)
Ground
(W)
Brakes
(R)
LICENSE PLATE
LIGHT
RED
MARKER
LIGHT
RED
MARKER
LIGHT
W
W
BR
BR
6 WIRE MAIN CABLE
W
AMBER
MARKER
LIGHT
TAIL LIGHT
AMBER
MARKER
LIGHT
J
TAIL LIGHT
W
BR
BR
BR
Y
G
BR
BR
3 LIGHT
MARKER BAR
(IF APPLICABLE)
BR
R
R
ELECTRIC
BRAKES
ELECTRIC
BRAKES
W
W
