MODEL 75 REPLACEMENT PARTS
MANUAL DISCHARGE
# Part Number Description
1
626-200037 Flipper Assembly
2
900-4917-25 Spring Lock Pin
900-7900-93 Rubber Grip
3
001-3004-02 Flipper Hinge
4
626-200039 Lock Plate for Flipper
5
626-3005-60 Discharge Clean-Out Door
001-3004-00 Clean-Out Door Hinge
6
900-4906-54
Clean-Out Door Bolt -
3/8”-16NC x 3/4”
7
900-4906-60
Clean-Out Door Nut -
3/8”-16NC
# Part Number Description
8
900-4909-27
Discharge Bolt -
1/2”-13NC x 2 1/4”
9
900-4906-88 1/2” Flat Washer
10
900-4906-84
Discharge Lock Nut -
1/2”-13NC
11
900-4906-74
Discharge Transport Bolt -
1/2”-13NC x 2”
12
900-4906-86 1/2” Lock Washer
13
900-4906-82
Discharge Transport Nut - 1/2”-
13NC
# Part Number Description
1
626-200016
Manual Discharge
(Gasoline Engines Only)
907-1000-22
Manual Discharge
(Diesel Engines Only)
# Part Number Description
2
626-1001-26
Manual Height Adjustable
Discharge
3
626-200042 Hand Crank Swivel Discharge
4
626-200041
Hand Crank Swivel & Height
Adjustable Discharge

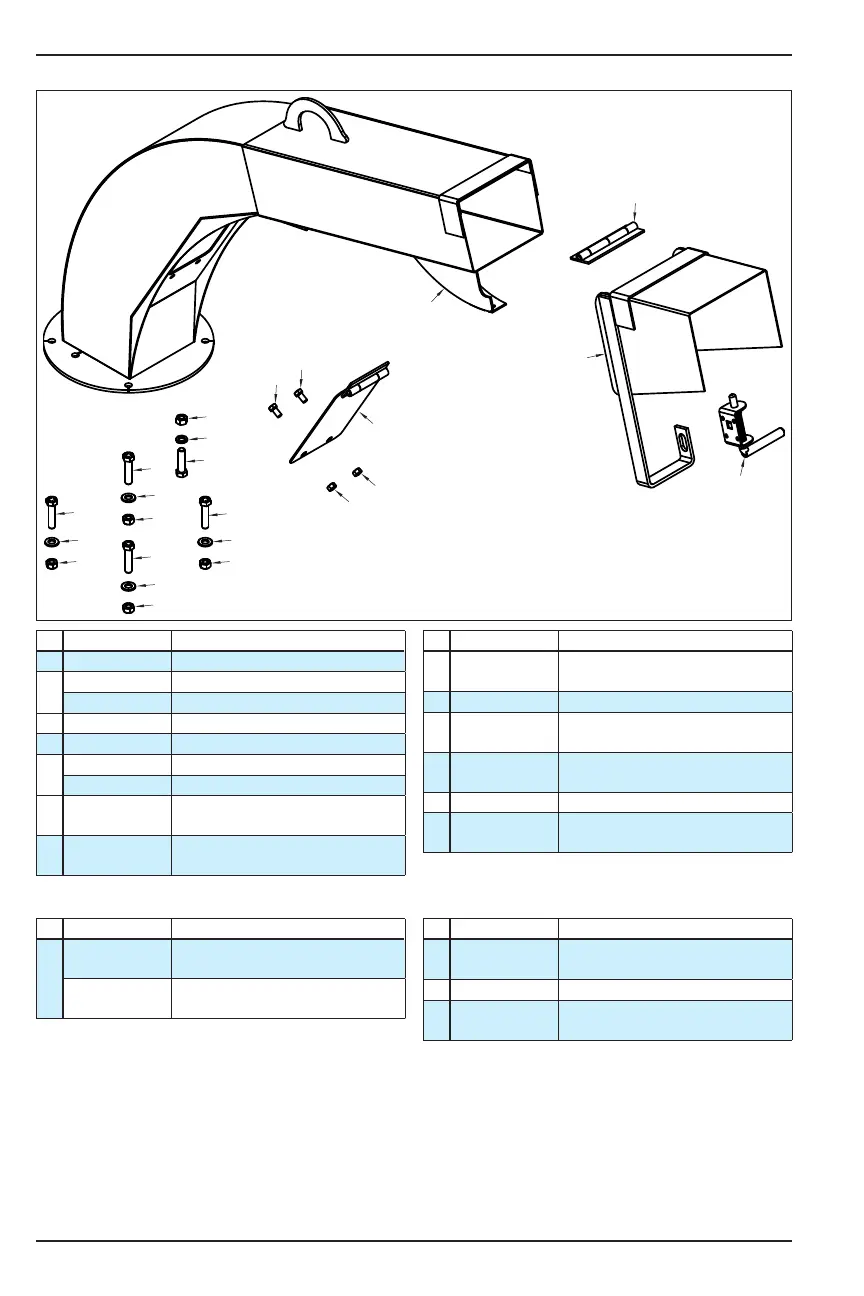

DISCHARGE ASSEMBLIES
7
5
6
3
4
2
1
6
13
12
11
8
9
10
10
9
8
10
9
8
8
9
10
7
