Bandit 75 - Hydraulic Bump Bar Version 2 Parts List; Autofeed Valve with Relief Components

Bandit85
MODEL 75 REPLACEMENT PARTS
HYDRAULIC BUMP BAR Version 2
# Part Number Description
1
980-2005-44
Hydraulic Bump Bar Assembly
- 35” Infeed
626-2002-07
Hydraulic Bump Bar Assembly
- 42” Infeed
980-2005-39
Hydraulic Bump Bar Assembly
- 45” Infeed
915-2000-73
Hydraulic Bump Bar Assembly
- 54” Infeed
911-2002-52
Hydraulic Bump Bar Assembly
- 64” Infeed
2
911-3003-66 Bump Bar Valve Linkage
3
900-3956-75 Bump Bar Valve
4
915-3002-17 Bump Bar Valve Cover
5
900-4906-54 3/8”-16NC x 3/4” Bolt
6
900-4906-84 1/2”-13NC Lock Nut
# Part Number Description
7
900-4906-88 1/2” Flat Washer
8
900-4906-73 1/2”-13NC x 1 3/4” Bolt
9
980-3011-43 Spring Tube for Spring Assist
937-3009-68
Spring Tube for Spring Assist
(64” Infeed Tray Only)
10
900-4917-76 Left Spring for Spring Assist
11
900-4917-77 Right Spring for Spring Assist
12
900-3961-02
Handle for Momentary
Override Switch
13
905-3005-19
Decal Plate for Momentary
Override Switch
14
900-3988-24 Momentary Override Valve
15
900-2903-07
Momentary Override Push
Button Switch
999-8001-88 Momentary Override Timer
Torque Autofeed Cartridge Nut to a maximum of 4 to 6 ft.-lbs. (5 to 8 Nm) and install Loctite 243.
Over torque will cause damage and will also void warranty.

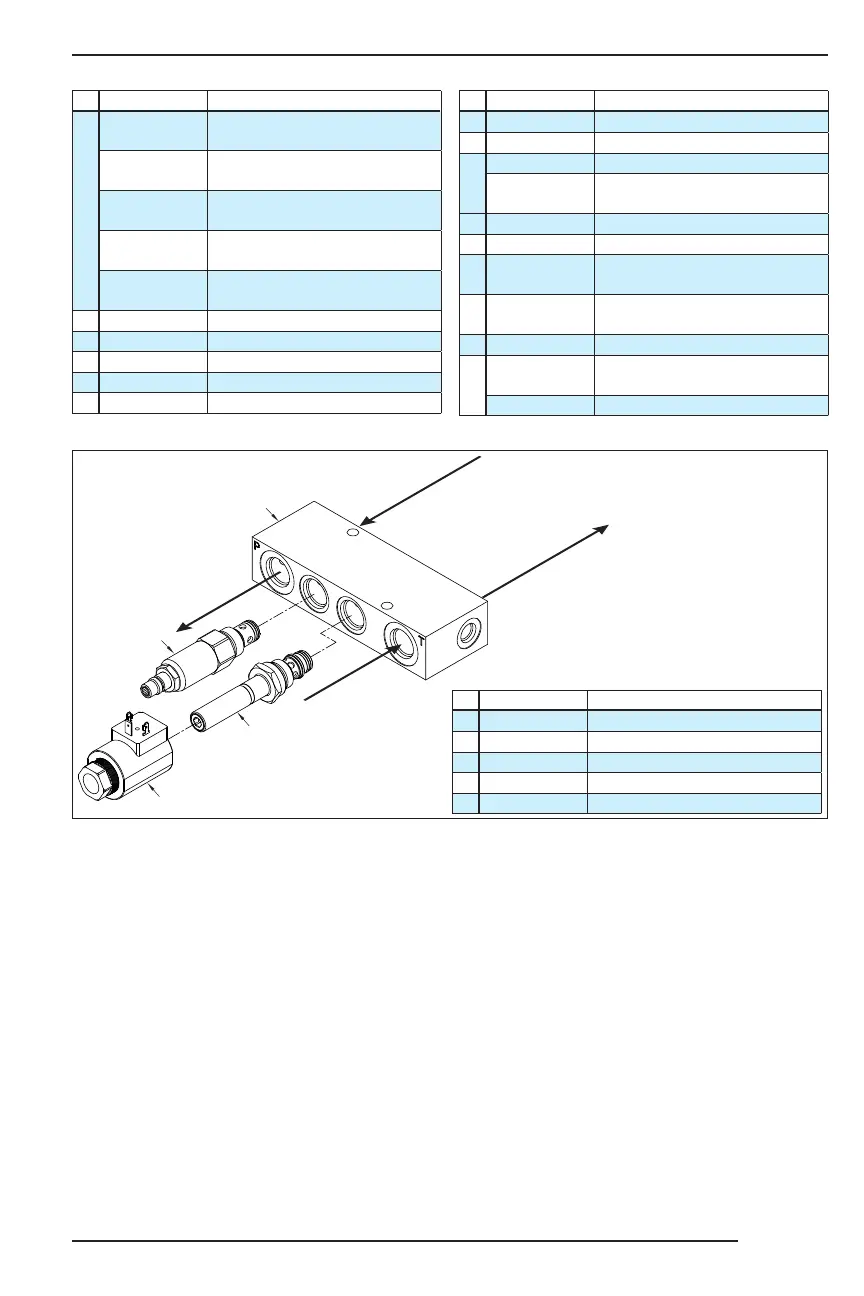

AUTOFEED VALVE WITH RELIEF
# Part Number Description
1
900-3977-38 Autofeed Valve Block Only
2
900-3947-37 Autofeed Solenoid Only
3
900-3947-38 Dump Cartridge Only
4
900-3919-96 Main Relief Only
5
500-0000-77 Autofeed Valve Assembly w/ Relief
HYDRAULIC HOSE
FROM PUMP
HYDRAULIC HOSE
TO TANK
1
4
3
2
