Technical output - p. 17
10
Output: Technical output [OK]
OK
nc nocom

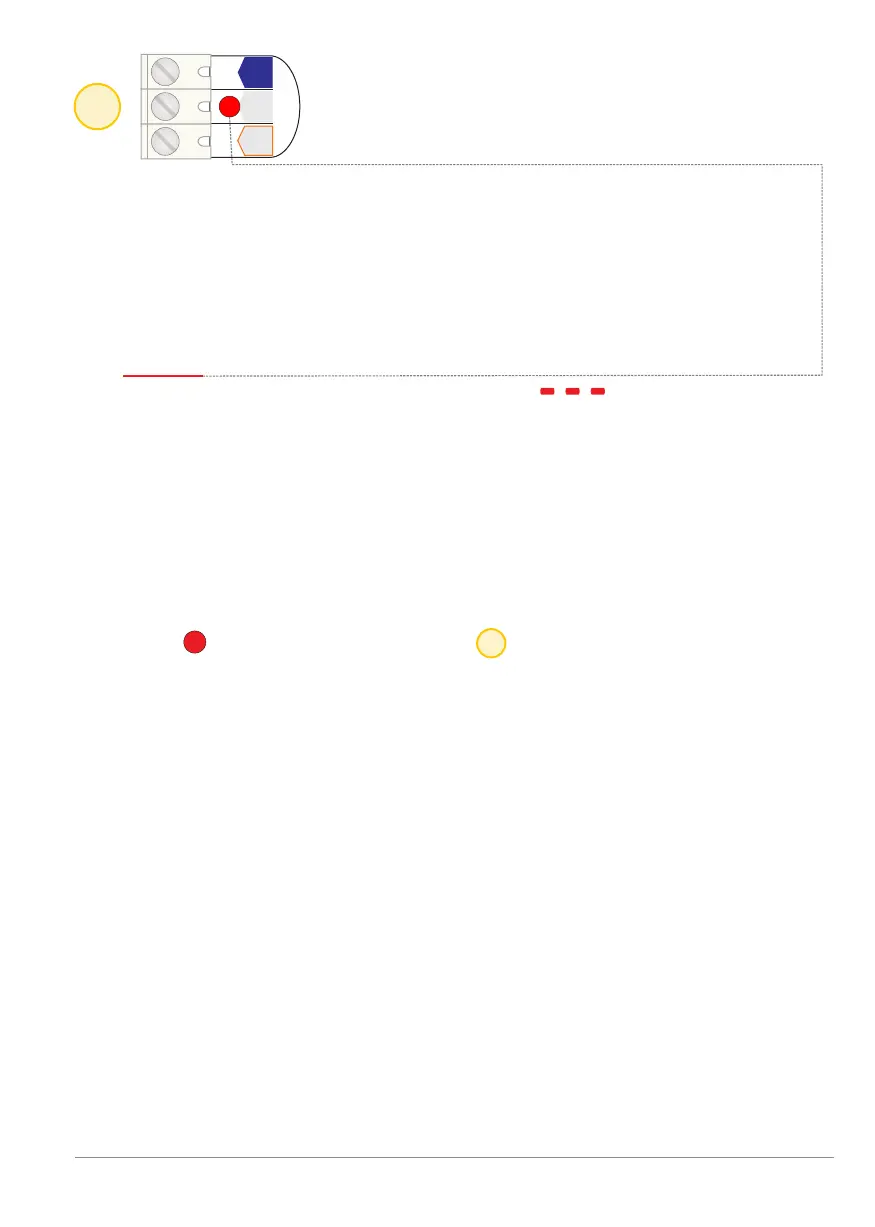

Via this three-output terminal connector the controller reports that a fault or
problem has been detected. See also p. 27 Error-LED.
Properties of the technical output [OK]
- If a failure or abnormal setting is determined by the fog generator,
communication or controller, COM and NO will be open.
(ie COM and NC will be closed).
- The red OK LED illuminates.
- The front LED of the fog generator flashes red .
Any malfunction or problem that is reported by the technical output [OK]
is displayed on the Controller panel. Signals to check:
a) If any red LED is lit then this also indicates the problem that has
been detected.
b) If any red LED is flashing (eg. Error LED), then this also
indicates the problem that has been detected.
F
For more information about the fault being displayed via the red
LED in the section see p. 27.Status
A typical application for this output [OK] is to connect this to a zone input
of the controlling alarm system or an auto dialler (to report the problem).
In this way an alert can be sent to all control centres (PAC's) to notify them
of a technical failure of the fog generator.
As long as there is no failure or problem
COM and NO are closed.
