B&PLUS RCS600 - Page 17

- 17 -
Wireless charging system 600W specication
For 12V・24V・48V battery
Pin.
Pin.
Charge
End
Error
電源ユニットのみ
Power
電源ユニット側
Input

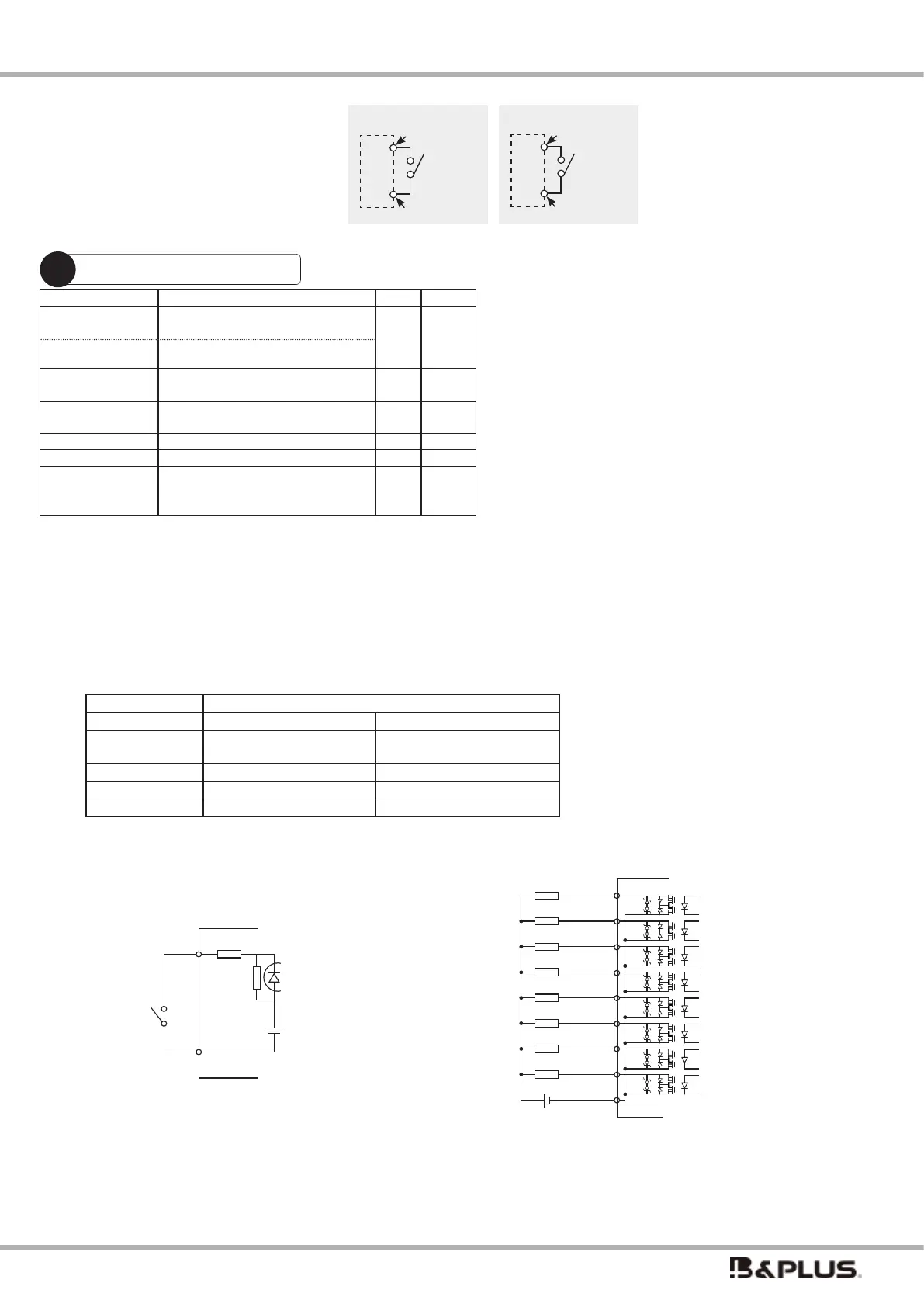

Input signal schematic
Output signal schematic
external
external
internal
internal
dry contact
ca.2mA
Pin.14
Pin.1
2k Ω
2k Ω
5V
Output
(Only for Power supply unit)
Power
less than
50mA
4
5
39V
39V
39V
6
7
8
16
17
18
39V
39V
39V
39V
39V
39V
Ready
Charge
End
Error
E1
E2
E3
less than30V
20
無電圧接点
Pin.
Pin.
Charge
End
Error
電源ユニットのみ
Power
Pin.
Pin.
Charge
End
Error
電源ユニットのみ
Power
電源ユニット側
Input
Input signal schematic
Output signal schematic
external
external
internal
internal
dry contact
ca.2mA
Pin.14
Pin.1
2k Ω
2k Ω
5V
Output
(Only for Power supply unit)
Power
less than
50mA
4
5
39V
39V
39V
6
7
8
16
17
18
39V
39V
39V
39V
39V
39V
Ready
Charge
End
Error
E1
E2
E3
less than30V
20
無電圧接点
Pin.
Pin.
Charge
End
Error
電源ユニットのみ
Power
Name Function Pin No. Remark
Charge start sig-
nal(activation signal)
dry contact ON: start charging
dry contact OFF: stop charging
1,14 Input
Charge stop signal
dry contact ON: stop charging
dry contact OFF: start charging
Ready
Displayed in the stopped charging
state (charging standby state)
5,20 Output
Charge
ON during constant current or
constant voltage charge operation
6,20 Output
End Turn on when charging ends 7,20 Output
Error ON when abnormal 8,20 Output
E1
E2
E3
The abnormality are indicated by
LED lighting combinations of E1 to
E3
16,20
17,20
18,20
Output
I / O connector function
The operation status of the charging unit is output to the outside simultaneously with the LED indicates
The operation of the output signal turns ON when the LED is lit.
In the output circuit, rated voltage 24 V rated current 50 mA, only surge protection (39 V) is installed.
Parameter setting of charging current · charging voltage · timer is done by connecting dedicated connector to PC
and launching dedicated software
※ The followings are recommended for the Dsub 25 pin
plug side if it is prepared by the customer.
HDBB-25P (05) Hirose Electric Machine
Case：HDB-CTH Hirose Electric Case
Terminal block type：SUBCON 25M-SH made
by Phoenix Contact
Input circuit specications
Items Specication
Type code
RCS600-CA__ RCS600B-CA__
Contact Dry contact
（Normal open type）
Dry contact
（Normal close type）
Pin.1 Start charging Stop charging
Rated voltage 5V 5V
Rated current About 2mA About 2mA
Input Output
■ Wiring of start signal of charging unit
内部回路
Pin1. 充電開始
Pin14.GND
無電圧接点
A 接点仕様
内部回路
Pin1. 充電停止
Pin14.GND
無電圧接点
B 接点仕様
Internal circuit
Internal circuit
dry contact
dry contact
chrage start
normal open normal close
chrage stop
