B&PLUS RCS600 - Identifying and Troubleshooting Abnormalities; LED Display for Error Determination

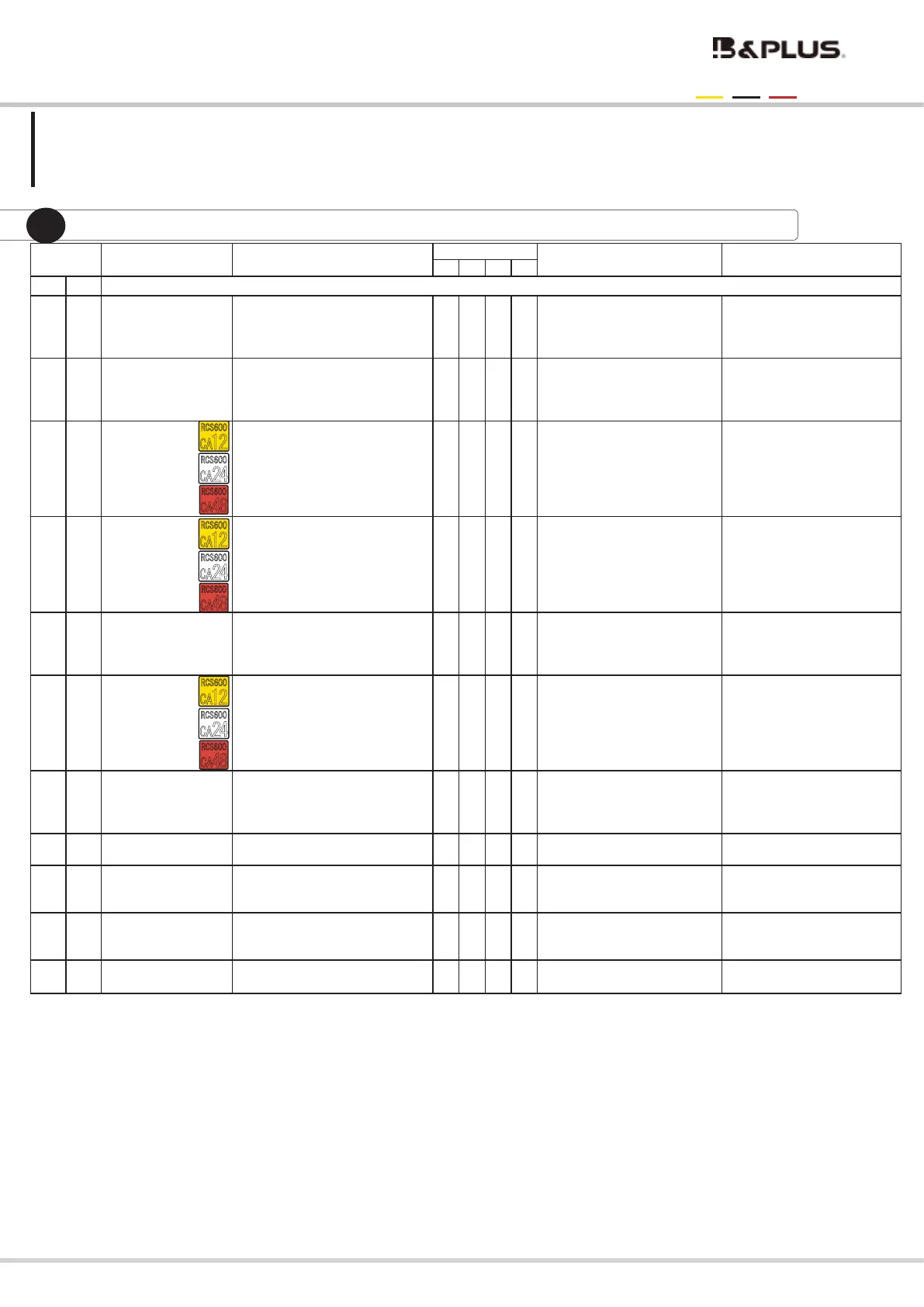

LED display for determining abnormalities in the power supply unit and charging unit
【caution】 * 1 The battery voltage error is detected only at the start of charging, and the output overvoltage is detected during charging.
* 2 The LED indications for communication errors A to D di󱐯er depending on the unit and type. Please refer to the following.
Charging unit: Communication error Any of the following behaviors (1) to (4) for A to D
① Ready lights up or blinks.
② Ready, Charge, and End LEDs light up repeatedly in sequence.
③ Ready, Charge, and End LEDs light repeatedly in that order, and then the Error LED lights.
④ Ready → Charge LED turns on repeatedly in this order.
Power supply unit: Communication error Any of the following behaviors ① to ④ for A to D
A Gap error: Only the Power LED lights up. Or one of the following behaviors ① to ④
B、Ｃ Head overheat error: Only Power LED turns on.
Ｄ Signal connector disconnection abnormal: Only Power LED lights up.
① Ready lights up or blinks.
② Ready, Charge, and End LEDs light up repeatedly in sequence.
③ Ready, Charge, and End LEDs light repeatedly in that order, and then the Error LED lights.
④ Ready → Charge LED turns on repeatedly in this order.
If you have any trouble using this product, please click here. When an error occurs in this product, it is possible to guess the cause of the error from
the LED display on the side of the power supply unit and charging unit. If you are unable to solve the problem, please contact our sales representative.
Target unit Name Detected content and cause
LED
Possible factors Return condition
E1 E2 E3
Error
Poewr Charge
○
Power supply unit low
temperature / heating
Low temperature detection inside the
power supply unit (about -10 ° C ± 5 ° C)
Overheat detection inside the power
supply unit (85 ± 5 ° C)
○ ○ ○ ○
Ambient temperature Low tem-
perature or high temperature.
FAN failure. Clogged air vents.
Automatic return when tar-
get detection temperature
rises above 0 ± 5 ° C or
falls below 70 ± 5 ° C
○ ○
Charging unit low
temperature / heating
Low temperature detection inside the
charging unit (about -10 ° C ± 5 ° C)
Overheat detection inside the charging
unit (85 ± 5 ° C)
○ ○ ○
Ambient temperature Low tem-
perature or high temperature. Use
under conditions where the sur
-
rounding environment is closed.
Automatic return when tar-
get detection temperature
rises above 0 ± 5 ° C or
falls below 70 ± 5 ° C
○ ○
Abnormality in
battery voltage
※１
12V: Detect battery voltage 8 ±
0.5 to 16 ± 0.5 V or less
24V: Detect battery voltage 16 ±
0.5 to 31 ± 0.5 V or less
48V: Detect battery voltage
32 ± 0.5 to 61 ± 0.5 V or less
○ ○
Use of di󱐯erent types of bat
-
teries, such as rated voltage
di󱐯erence.
Reset battery voltage ab
-
normality
○ ○
Output over
current
12V: Over current to battery de-
tected（35.5 ± 0.5A)
24V: Over current to battery de
-
tected（21.5 ± 0.5A)
48V: Over current to battery
detected（13.0 ± 0.5A)
○ ○
Inconsistency of setting
data. Malfunction.
Remove the over current
condition and reset
○ ○
Battery temperature
error
Low temperature detection of battery
(about -10 ° C ± 5 ° C)
Battery overheat detection (approx. 60 ±
5 ° C)
○ ○
Ambient temperature is too low
/ too hot. Inadequate current
setting for battery specica
-
tions. Battery deterioration etc.
Reset battery temperature
within 0 ± 5 to 50 ± 5 ° C
○ ○
Output over
voltage
12V: Detect over voltage to battery
（16.5 ± 0.5V）
24V: Detect over voltage to battery
（33 ± 0.5V）
48V: Detect over voltage to battery
（63 ± 0.5V）
○ ○ ○
Inconsistency of setting
data. Malfunction.. External
voltage application.
Remove the over voltage
condition and reset
○ ○
Charge count error When charging and stopping are
repeated four times during the 30
seconds after charging starts.
○
Overcurrent detection on the
power feed side, high recharge
voltage setting value, improper
distance/axis misalignment, etc.
Keep within the rated
gap and review the reset/
recharge voltage setting
values.
○ ○
Communication errorA
Gap abnormality ※２
Temperature abnormality of the
head, deviated from the rating gap
- - - -
It deviates from the rated gap /
misalignment, and starts feeding.
Reset within the rated gap
○ ○
Communication error B
overheating of active
head
Overheating of active head
Detection of (85 ± 5 ° C or
higher)
- - - -
Ambient high temperature. Opera-
tion for a long time. Heat radiation
failure due to ambient environment.
Automatic restoration with
falling of object detection
temperature or reset
○ ○
Communication error C
overheating of passive
head
Overheating of passive head
Detection of (85 ± 5 ° C or
higher)
Ambient high temperature. Opera-
tion for a long time. Heat radiation
failure due to ambient environment.
Automatic restoration with
falling of object detection
temperature or reset
○ ○
Communication error D
signal connector disconnection
Detects connector disconnection
and disconnection
Connector is disconnected or
broken.
Connect the connector
part, or Repair a broken wire
RCS600
CA
12
RCS600
CA
24
RCS600
CA
48
RCS600
CA
12
RCS600
CA
24
RCS600
CA
48
RCS600
CA
12
RCS600
CA
24
RCS600
CA
48
- 28 -
Wireless charging system 600W specication
For 12V・24V・48V battery
10.Identifying and troubleshooting abnormalities
