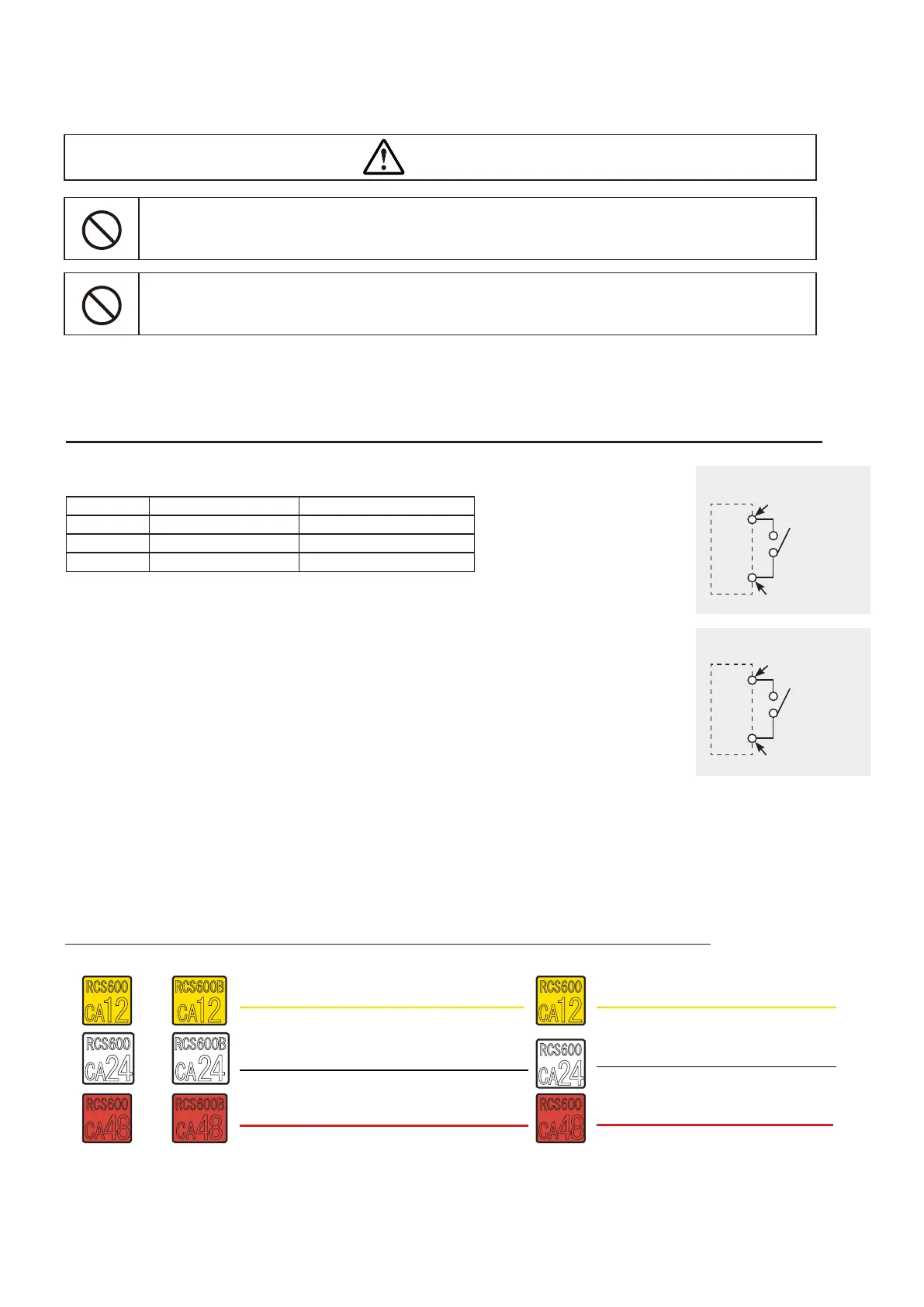

About the description in the manual
Shown in the explanation for12V type
● This manual is for 600W wireless power supply system for 12V or 24V or 48V battery.
The following label is displayed in the explanation of the specic specications.
Please do not confuse the description, and make sure to check the corresponding part.
Shown in the explanation for 24V type
Shown in the explanation for 48V type
RCS600
CA
12
mark is posted as a representative.
RCS600
CA
24
mark is posted as a representative.
RCS600
CA
48
mark is posted as a representative
RCS600B
CA
12
RCS600B
CA
24
RCS600B
CA
48
RCS600
CA
12
RCS600
CA
24
RCS600
CA
48
normal open normal close
normal open normal close
12V type RCS600-CA12 RCS600B-CA12
24V type RCS600-CA24 RCS600B-CA24
48V type RCS600-CA48 RCS600B-CA48
normal open type: external connection pin (Pin) is arranged as shown on the right. When
the dry contact is ON, charging starts, and when it is OFF, charging stops. To start
charging, it is necessary to turn it on on the ON connector, separate wiring, or on the
control side.
normal close type: the external connection pin (Pin) is arranged as shown on the right.
When the dry contact is OFF, charging starts, and when it is ON, charging stops.
Pin1.charge start
Pin14.GND
dry contact
internal circuit internal circuit
normal open
Pin1.charge stop
Pin14.GND
dry contact
normal close
● The charging unit of this product have two specications, normal open type and normal close type.
Please see P.17 for details.
Attention
Do not use under conditions with excessive vibration or impact
Using it beyond the conditions may cause an accident, malfunction or re. Be sure to use it within
the specications.
Do not use in a state where it is lled with dust containing oil and moisture and accumulated.
Accumulation inside the device may cause a malfunction or re. Clean it regularly or put it in a
case to protect it.
