D10 Expert
™
Dual Discrete Outputs
10 P/N 64154 rev. F
Banner Engineering Corp. • Minneapolis, MN U.S.A.
www.bannerengineering.com • Tel: 763.544.3164

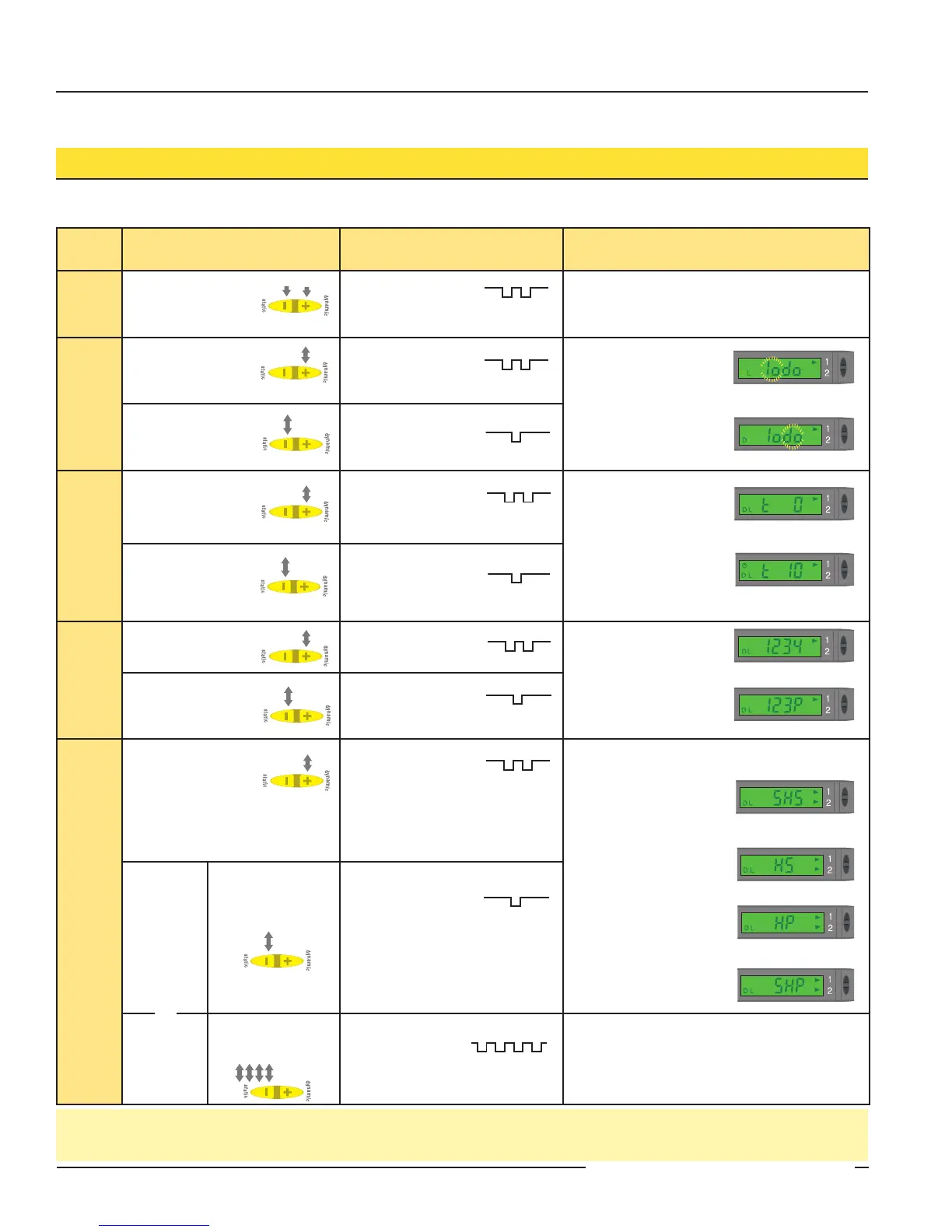

Sensor Setup
•Configuressensordisplayandoperatingparameters. •ClickDynamic(+)ordouble-pulseremotelinetoselectanoption.
•Changesareupdatedinstantly. •ClickStatic(-)orsingle-pulseremotelinetoadvance.
Super-High-Speed Operation Note: Under most conditions, the sensor’s two discrete outputs operate independently. However, the outputs become complementary when
operating at Super-High-Speed, due to its extremely fast response time. Only channel 1 is taught/adjusted; channel 2 is complementary to it (output 1 conducts for the taught ON
condition, and output 2 conducts for the OFF state). To invert these conditions (output 1 – OFF condition, output 2 – ON), change light/dark operate setting.
Push Button
Remote
0.04 sec. ≤ T ≤ 0.8 sec.
Result
Access
SETUP
Mode
•Pressandhold
both buttons
concurrently for
> 2 seconds.
•Double-pulsethe
remote line.
•IndicatorArrowIcon1ONRed
Select Light/Dark
Operate
•ClickDynamic(+)to
toggle between
selections.
•Double-pulseremote
line to toggle between
selections.
Light Operate:
•Displayflashes“lo”
•Licon
Dark Operate:
•Displayflashes“do”
•Dicon
•ClickStatic(-)tosave
selection and
advance to
“OFF-Delay.”
•Single-pulsetheremote
line to save selection
and advance to
“OFF-Delay.”
Select OFF-Delay
Timing Enable
•ClickDynamic(+)to
toggle between
selections.
•Double-pulsetheremote
line to toggle between
selections.
OFF (No OFF-Delay):
•“t 0”
•ClockiconOFF
2 to 100 ms OFF-Delay:
•“t 2,”“t 5,”“t 10,”“t 15,”
“t 20,”“t 30,”“t 40,”
“t 60,”“t 80,”or“t100”
•ClockiconON
•ClickStatic(-)tosave
selection and
advanceto“Display.”
•Single-pulsetheremote
line to save selection
and advance to
“Display.”
Select Display
Parameters
•ClickDynamic(+)to
toggle between
selections.
•Double-pulsetheremote
line to toggle between
selections.
Raw signal value:
•“1234”
Percent of excess signal:
•“123P”
•ClickStatic(-)tosave
selection and advance
to“Power/Speed.”
•Single-pulsetheremote
line to save selection
and advance to
“Power/Speed.”
Select Speed and
Power Combination
•ClickDynamic(+)to
toggle between
selections.
•Double-pulsethe
remote line to toggle
between selections.
•IndicatorArrowIcons1and2ONRed
Super-high-speed
(50-µs response)
•“SHS” (Complementary
outputs; see note below)
High-speed
(200-µs response)
•“HS”
High-power
(1-ms response)
•“HP”
Super-high-power
(2.5-ms response)
•“SHP”
•Return
to RUN
mode.
•ClickStatic(-)to
save selection and
return to RUN mode.
•Single-pulsethe
remote line to save
selection and return
to RUN mode.
•Proceedto
Advanced
Setup
•Quad-clickStatic
(-) to proceed to
Advanced Setup.
•Quad-clickthe
remote line to
proceed to
Advanced Setup.
•SeeAdvancedSetup(page5).
OR
To Next Page
