For Sales and Support, Contact Walker EMD • Toll-free: (800) 876-4444 • Tel: (203) 426-7700 • Fax: (203) 426-7800 • www.walkeremd.com

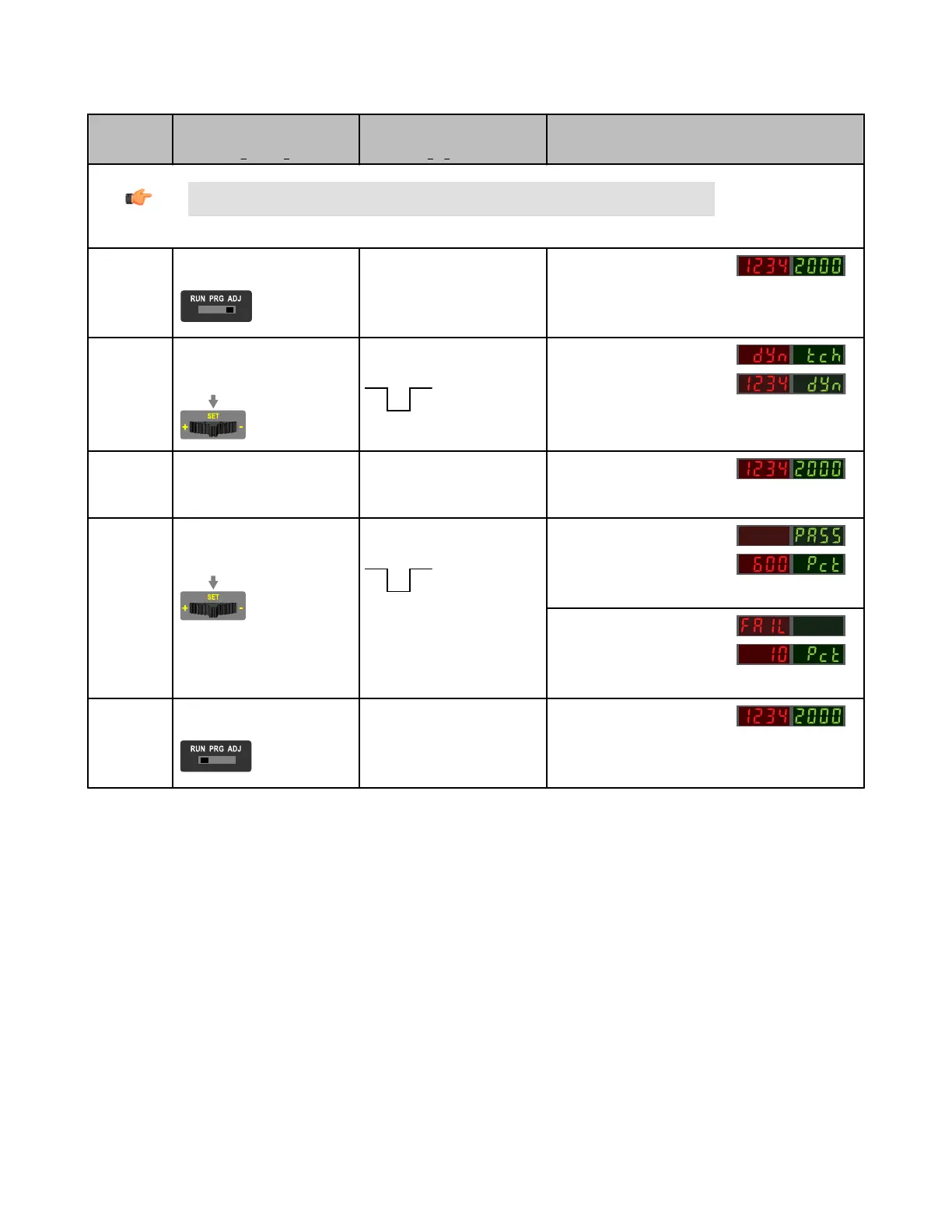

Dynamic TEACH
SET Button
0.04 seconds < "Click" < 0.8 seconds
Remote Input
0.04 seconds < T < 0.8 seconds
Result
Note: TEACH Selection must be programmed to dYn tcH (see Program Mode on page 3 )
Enter Ad-
just Mode
Set Mode switch to ADJ
No action required; sensor is
ready for Dynamic TEACH
method
Display: Red - Signal Level;
Green - Threshold
Enter Dy-
namic
TEACH
Click the SET rocker but-
ton
Single-pulse remote input
T
Display: Flashes "dYn tch"
then holds on "1234 dYn"
Present ON
and OFF
Conditions
Present ON and OFF con-
ditions
Present ON and OFF con-
ditions
Display: Red - Signal Level;
Green - Threshold
Exit Dy-
namic
TEACH
Click the SET rocker but-
ton
Single-pulse remote input
T
TEACH Accepted
Displays alternate "PASS"
with % Minimum Difference*,
Sensor returns to Adjust mode
TEACH Unacceptable
Displays alternate "FAIL" with
% Minimum Difference*, Sen-
sor returns to Adjust mode
Return to
RUN Mode
Move Mode switch to RUN
No action required; sensor re-
turns to RUN mode automati-
cally
Display: Red - Signal Level;
Green - Threshold
* See Troubleshooting on page 19 for more explanation of the % Minimum Difference displayed after the Dynamic TEACH method
DF-G1 - Expert Dual Display Fiber Amplifier Manual
10 www.bannerengineering.com - tel: 763-544-3164 P/N 161999 Rev. A

Other manuals for Banner DF-G1-NS-2M

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Banner DF-G1-NS-2M and is the answer not in the manual?

Banner DF-G1-NS-2M Specifications

Power IconPower
supply voltage10 to 30 V dc
power consumption (standard display mode)960 mW
current consumption (standard display mode)< 40 mA at 24 V dc
power consumption (ECO display mode)720 mW
current consumption (ECO display mode)< 30 mA at 24 V dc
Output IconOutput
output configuration1 current sinking (NPN) or 1 current sourcing (PNP) output
output rating100 mA max. load
off-state leakage current (NPN/PNP models)< 5 μA at 30 V dc
on-state saturation voltage (NPN)< 1.5 V
Performance IconPerformance
output response time (high speed)200 µs
output response time (standard)500 µs
repeatability (high speed)66 µs
repeatability (standard/long range/extra long range)100 µs
Operating Environment IconOperating Environment
operating temperature−10 °C to +55 °C
storage temperature−20 °C to +85 °C
humidity90% at +60 °C maximum relative humidity (non-condensing)
