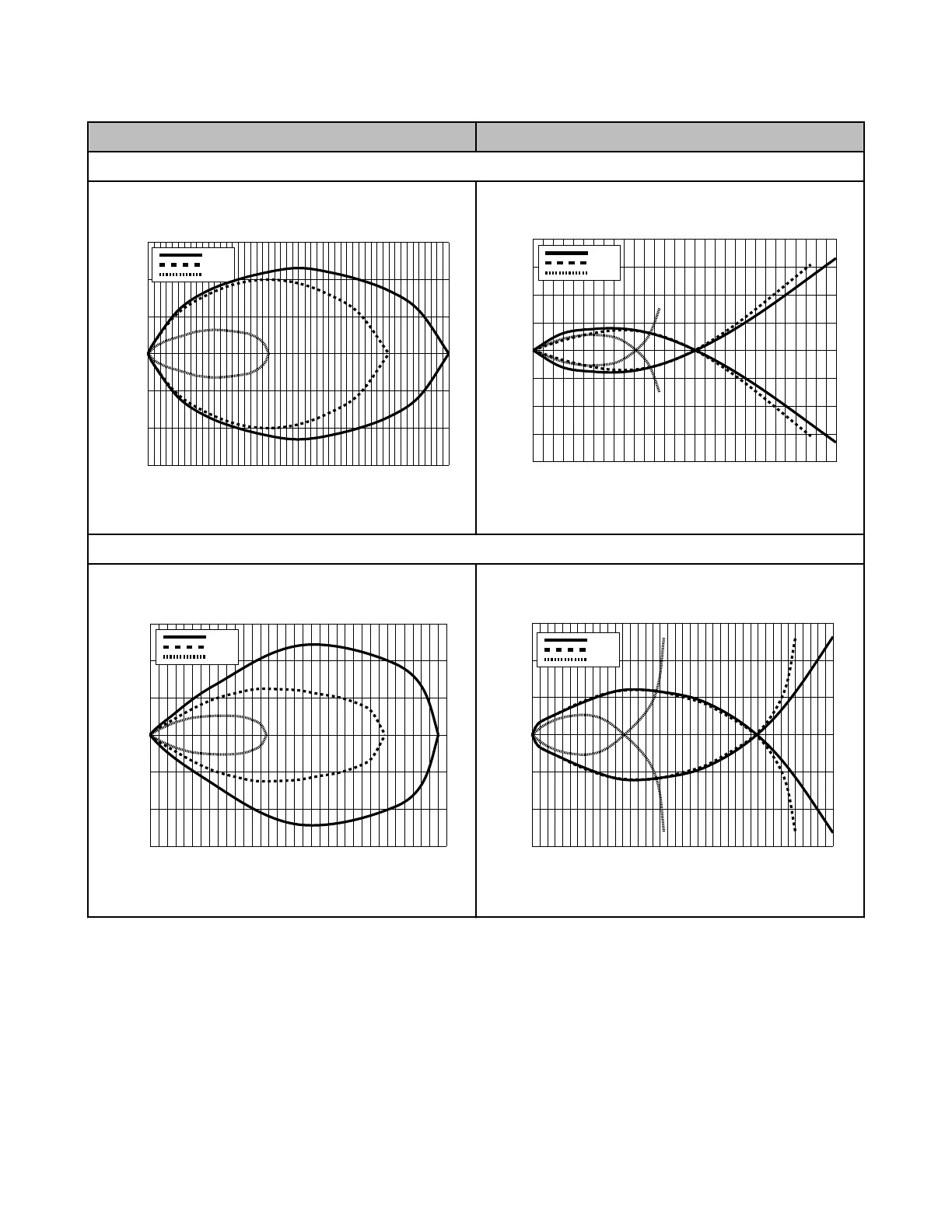

Beam Patterns
Opposed Mode Diffuse Mode
.01" Diameter Fibers
PIT16U
0
10
20
30
-10
-20
-30
0 5 10 15 20 25 30 35 40 45 50
DISTANCE (mm)
BEAM WIDTH (mm)
HS/STD
LR
XLR
PBT16U
0
4
3
2
1
-1
-2
-3
-4
0 2 4 6 8 10 12
DISTANCE (mm)
BEAM WIDTH (mm)
HS/STD
LR
XLR
.02" Diameter Fibers
PIT26U
HS/STD
LR
XLR
-100
-150
-50
0
50
100
150
0 20 40 60 80 100 120 140
DISTANCE (mm)
BEAM WIDTH (mm)
PBT26U
0 10 20 30 40 50 60 70 80
DISTANCE (mm)
BEAM WIDTH (mm)
0
-5
-10
-15
5
10
15
HS/STD
LR
XLR
DF-G1 - Expert Dual Display Fiber Amplifier Manual
P/N 161999 Rev. A www.bannerengineering.com - tel: 763-544-3164 23

Banner DF-G1-NS-2M Specifications

Power

supply voltage	10 to 30 V dc
power consumption (standard display mode)	960 mW
current consumption (standard display mode)	< 40 mA at 24 V dc
power consumption (ECO display mode)	720 mW
current consumption (ECO display mode)	< 30 mA at 24 V dc

Output

output configuration	1 current sinking (NPN) or 1 current sourcing (PNP) output
output rating	100 mA max. load
off-state leakage current (NPN/PNP models)	< 5 μA at 30 V dc
on-state saturation voltage (NPN)	< 1.5 V

Performance

output response time (high speed)	200 µs
output response time (standard)	500 µs
repeatability (high speed)	66 µs
repeatability (standard/long range/extra long range)	100 µs

Operating Environment

operating temperature	−10 °C to +55 °C
storage temperature	−20 °C to +85 °C
humidity	90% at +60 °C maximum relative humidity (non-condensing)
