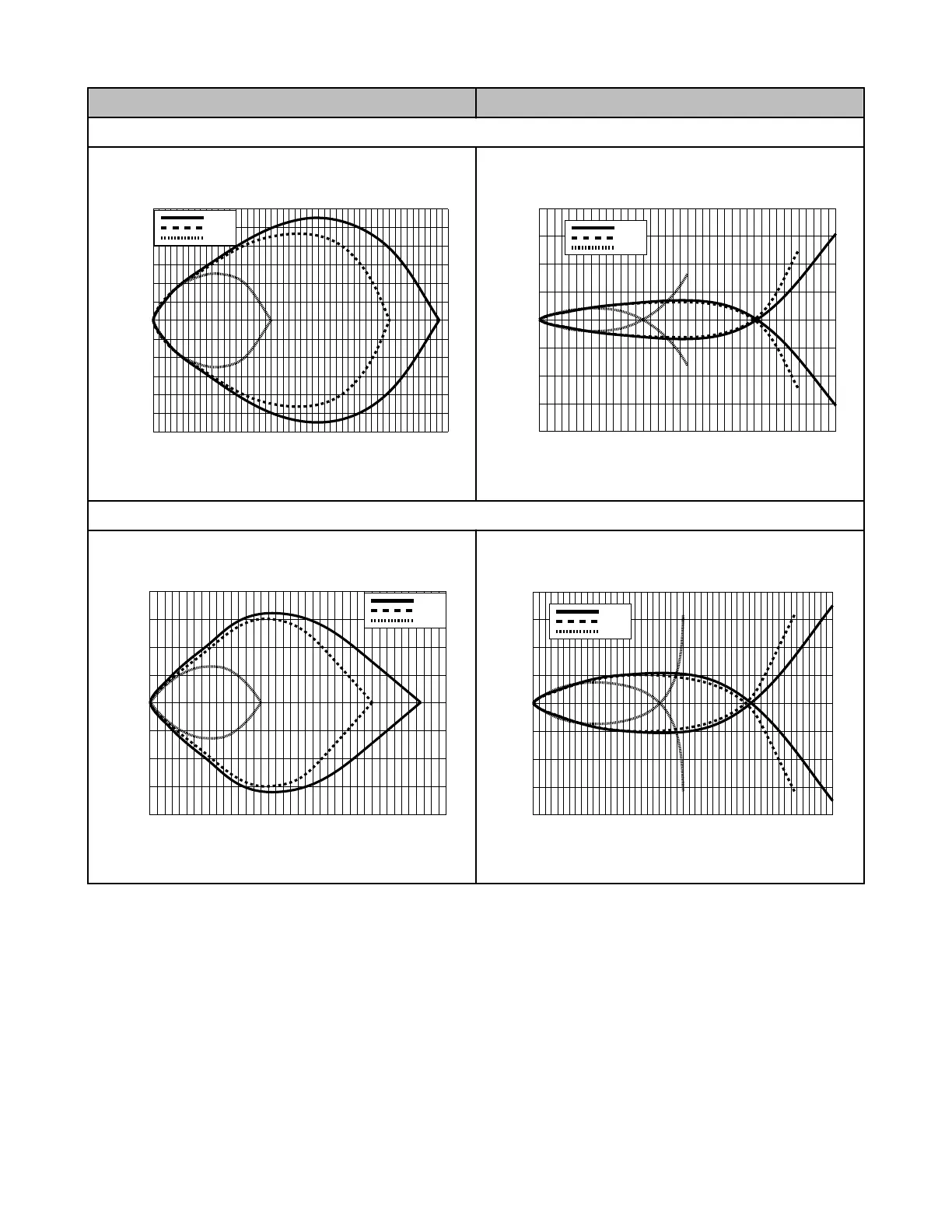

Opposed Mode Diffuse Mode
.04" Diameter Fibers
PIT46U
HS/STD
LR
XLR
0
1000 200 300 400 500 600 700 800 900 1000
DISTANCE (mm)
BEAM WIDTH (mm)
0
-100
-200
-300
-400
-500
-600
100
200
300
400
500
600
PBT46U
-200
-150
-100
-50
0
50
100
150
200
0 40 80 120 160 200 240 280 320
BEAM WIDTH (mm)
DISTANCE (mm)
HS/STD
LR
XLR
.06" Diameter Fibers
PIT66U
HS/STD
LR
XLR
0 100 200 300 400 500 600 700 800
DISTANCE (mm)
BEAM WIDTH (mm)
0
-100
-200
-300
-400
100
200
300
400
PBT66U
BEAM WIDTH (mm)
DISTANCE (mm)
-80
-60
-40
-20
0
20
40
60
80
0 20 40 60 80 100 120 140 160 180 200
HS/STD
LR
XLR
DF-G1 - Expert Dual Display Fiber Amplifier Manual
24 www.bannerengineering.com - tel: 763-544-3164 P/N 161999 Rev. A

Banner DF-G1-NS-2M Specifications

Power

supply voltage	10 to 30 V dc
power consumption (standard display mode)	960 mW
current consumption (standard display mode)	< 40 mA at 24 V dc
power consumption (ECO display mode)	720 mW
current consumption (ECO display mode)	< 30 mA at 24 V dc

Output

output configuration	1 current sinking (NPN) or 1 current sourcing (PNP) output
output rating	100 mA max. load
off-state leakage current (NPN/PNP models)	< 5 μA at 30 V dc
on-state saturation voltage (NPN)	< 1.5 V

Performance

output response time (high speed)	200 µs
output response time (standard)	500 µs
repeatability (high speed)	66 µs
repeatability (standard/long range/extra long range)	100 µs

Operating Environment

operating temperature	−10 °C to +55 °C
storage temperature	−20 °C to +85 °C
humidity	90% at +60 °C maximum relative humidity (non-condensing)
