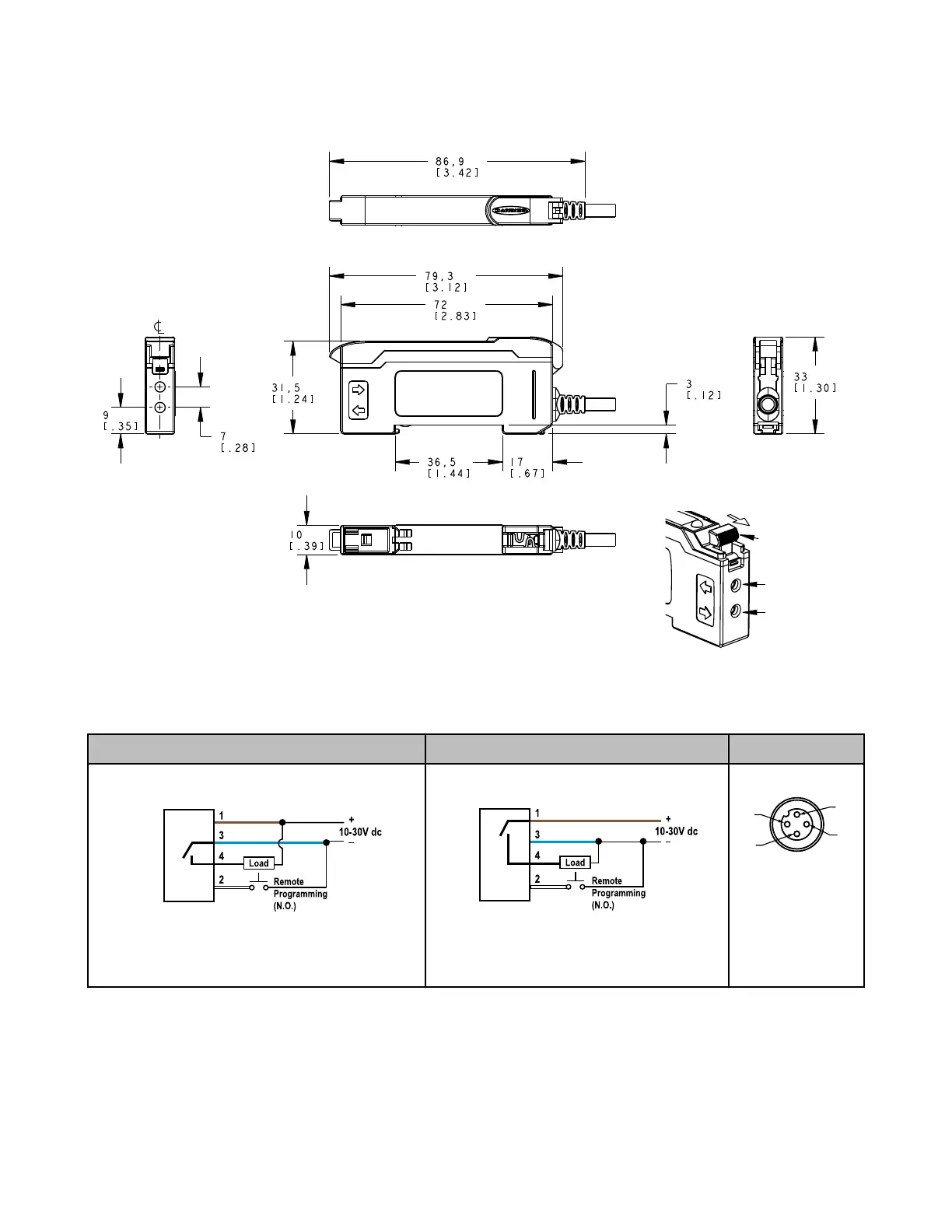

Dimensions
Fiber Emitter
Port
Fiber Receiver
Port
Slide forward
to release
fibers
Hookups
NPN Models PNP Models Key
2
3
4
1
1 = Brown
2 = White
3 = Blue
4 = Black
DF-G1 - Expert Dual Display Fiber Amplifier Manual
P/N 161999 Rev. A www.bannerengineering.com - tel: 763-544-3164 25
