For Sales and Support, Contact Walker EMD • Toll-free: (800) 876-4444 • Tel: (203) 426-7700 • Fax: (203) 426-7800 • www.walkeremd.com
Window SET
Sets window thresholds that extend a programmable % offset above and below the presented condition
All other conditions (lighter or darker) cause the output to change state
Sensing window center can be adjusted using “+” and “-” rocker button (Manual Adjust)
Recommended for applications where a product may not always appear in the same place, or when other signals may appear
See Program Mode on page 3 for programming the Offset Percent setting (to increase/decrease the window size)
A single sensing condition is presented, and the sensor positions window thresholds a programmable % offset above and below the
presented condition. In LO mode, Window SET designates a sensing window with the Output ON condition inside the window, and the
Output OFF conditions outside the window (see Figure below).
Sensor positions
window thresholds
a programmable %
offset from the
presented condition
Darkest
(no signal)
Most Light
(saturated
signal)
Condition
Presented
Sensing window
center adjusted by
Manual Adjust
Output OFF Output OFFOutput ON

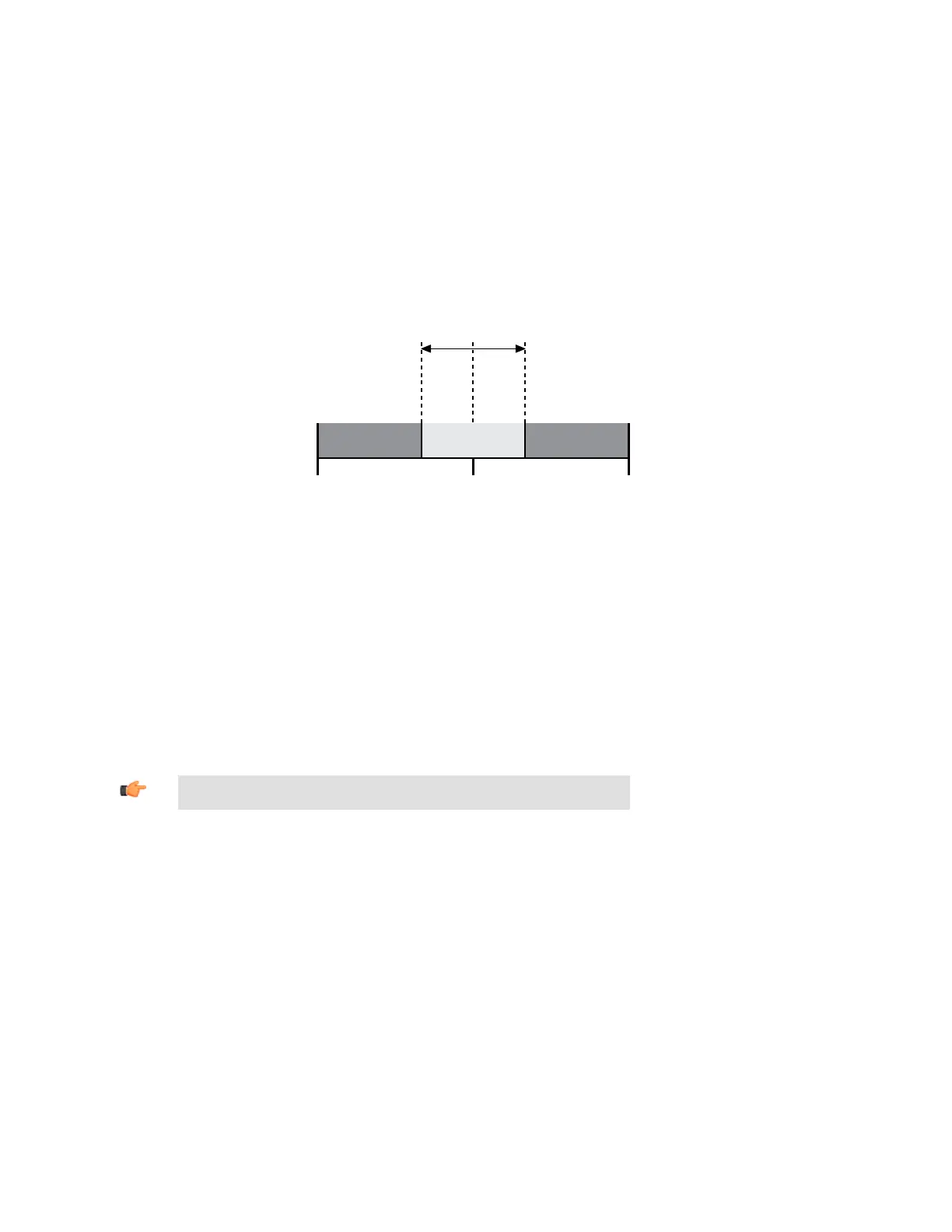

Figure 7. Window SET (Light Operate shown)
Output ON and OFF conditions can be reversed using the LO/DO switch (see LO/DO Switch in Top Panel Interface on page 2).
Window SET and Manual Adjust
Moves sensing window center value up or down to make adjustments
Slide Mode switch to ADJ to enter Adjust mode
Press “+” to increase; press “-” to decrease
GREEN display shows the sensing window center value
2 seconds after adjustment, the GREEN display will flash 3 times to confirm
Slide Mode switch to RUN to complete operation
Remember: Manual adjustments are disabled when Auto Thresholds are ON
DF-G1 - Expert Dual Display Fiber Amplifier Manual
P/N 161999 Rev. A www.bannerengineering.com - tel: 763-544-3164 11

Other manuals for Banner DF-G1-NS-2M

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Banner DF-G1-NS-2M and is the answer not in the manual?

Banner DF-G1-NS-2M Specifications

Power IconPower
supply voltage10 to 30 V dc
power consumption (standard display mode)960 mW
current consumption (standard display mode)< 40 mA at 24 V dc
power consumption (ECO display mode)720 mW
current consumption (ECO display mode)< 30 mA at 24 V dc
Output IconOutput
output configuration1 current sinking (NPN) or 1 current sourcing (PNP) output
output rating100 mA max. load
off-state leakage current (NPN/PNP models)< 5 μA at 30 V dc
on-state saturation voltage (NPN)< 1.5 V
Performance IconPerformance
output response time (high speed)200 µs
output response time (standard)500 µs
repeatability (high speed)66 µs
repeatability (standard/long range/extra long range)100 µs
Operating Environment IconOperating Environment
operating temperature−10 °C to +55 °C
storage temperature−20 °C to +85 °C
humidity90% at +60 °C maximum relative humidity (non-condensing)
