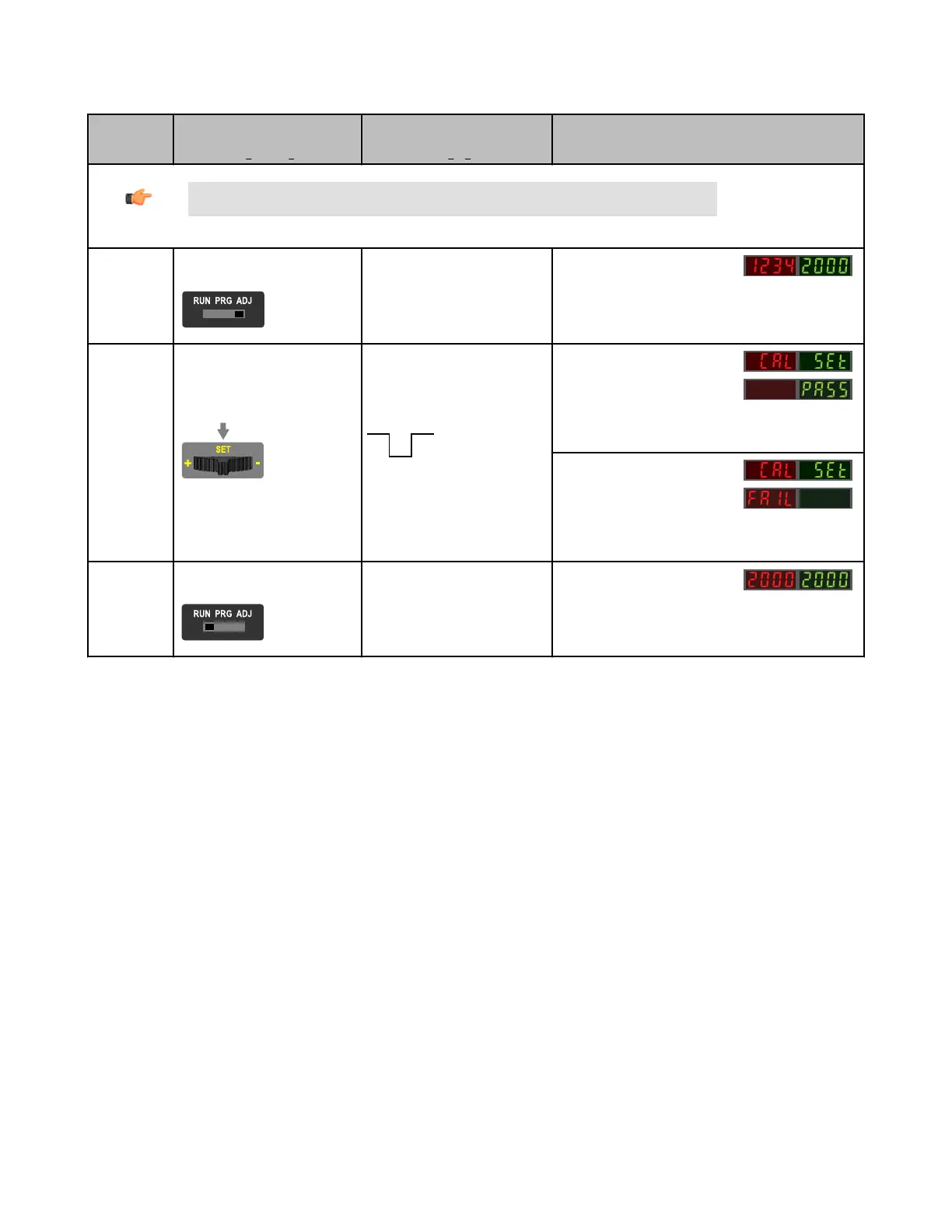

Calibration SET
SET Button
0.04 seconds < "Click" < 0.8 seconds
Remote Input
0.04 seconds < T < 0.8 seconds
Result
Note: TEACH Selection must be programmed to CAL SEt (see Program Mode on page 3 )
Enter Ad-
just Mode
• Set Mode switch to ADJ
No action required; sensor is
ready for Calibration SET meth-
od
Display: Red - Signal Level;
Green - Threshold
SET Sens-
ing Condi-
tion
• Present sensing condition
• Click the SET rocker but-
ton
• Present sensing condition
• Single-pulse the remote in-
put
T
Threshold Condition Accep-
ted
Displays read "cAL SEt" then
flashes "PASS"; Sensor re-
turns to Adjust mode
Threshold Condition Unac-
ceptable
Displays read "cAL SEt" then
flashes "FAIL"; Sensor returns
to Adjust mode
Return to
RUN Mode
• Move Mode switch to RUN
No action required; sensor re-
turns to RUN mode automati-
cally
Display: Red - Signal Level;
Green - Threshold
